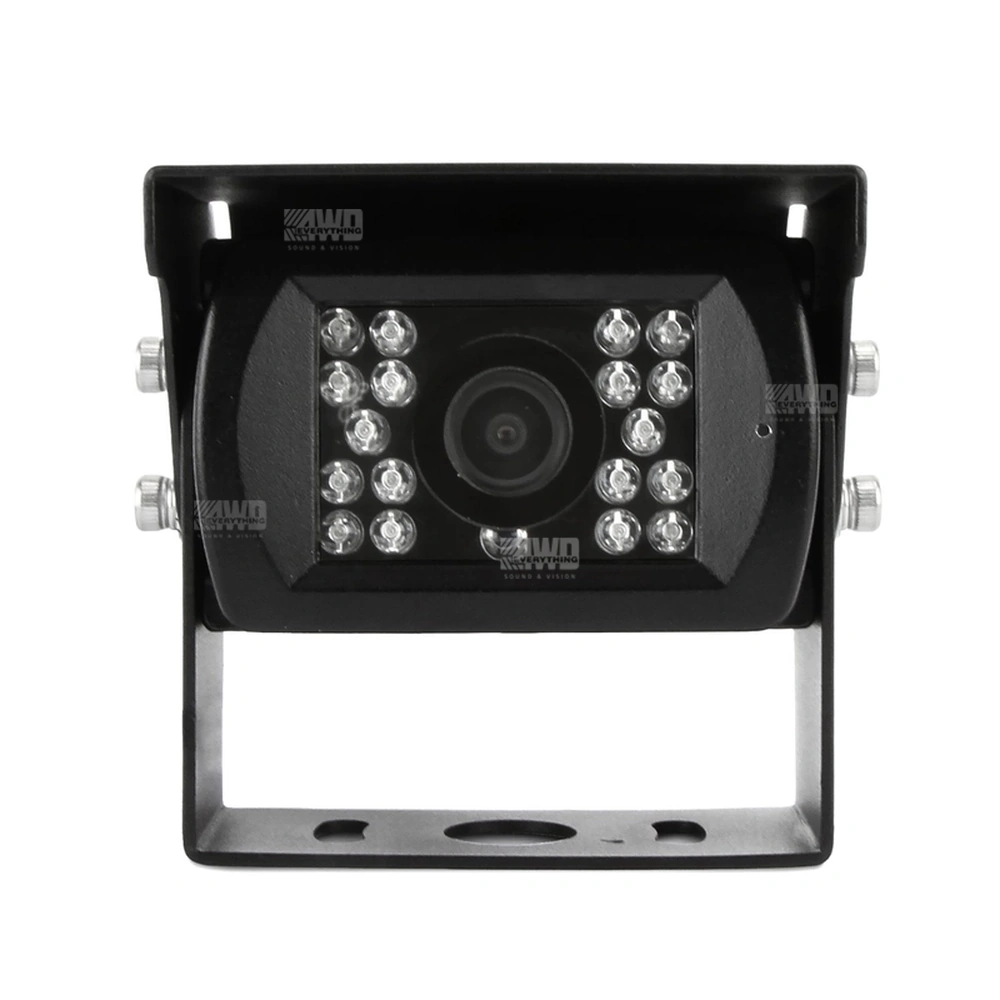

DNA Audio RV100-HYB Heavy Duty CCD/AHD Camera - PAL/NTSC

SKU:RV100-HYB

RRP $149.95
$135.00
SAVE $14.95 (10%)


Calculate Shipping

Heavy Duty CCD/AHD Truck/Bus/Caravan Camera - PAL/NTSC

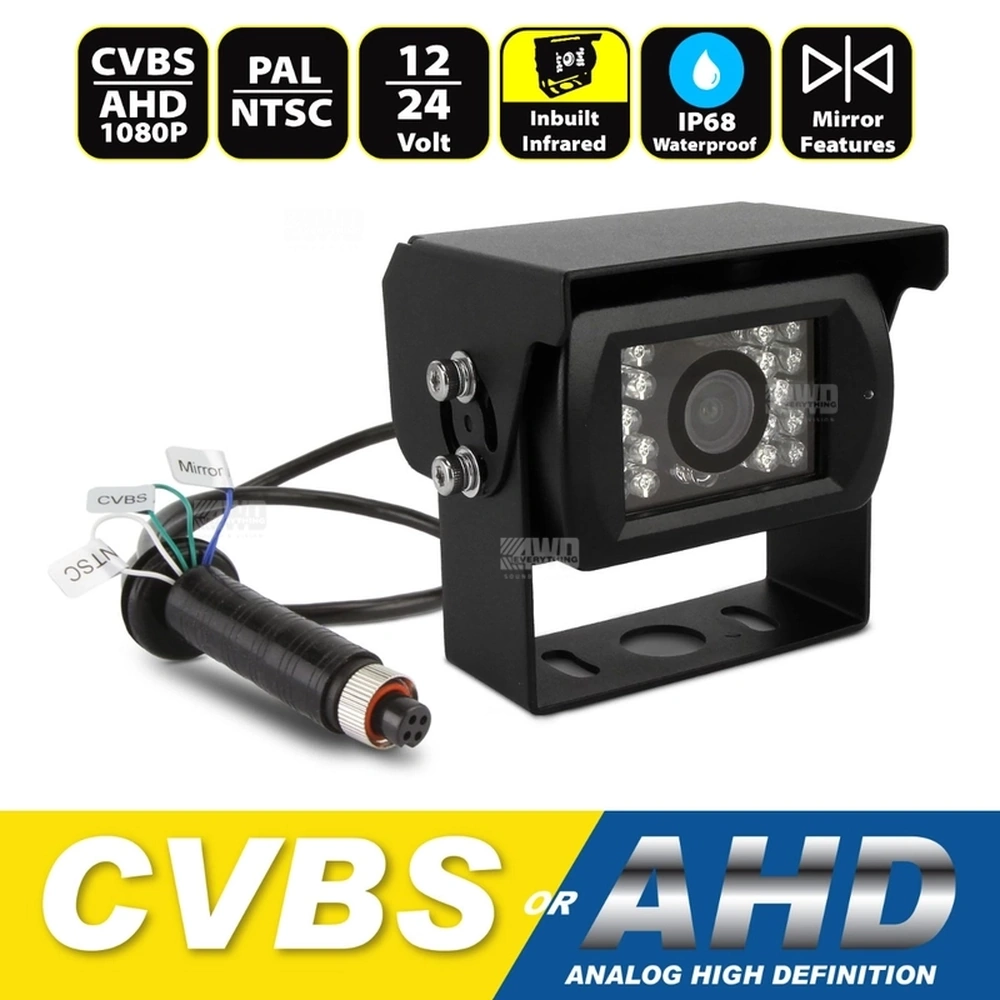

Selectable features:

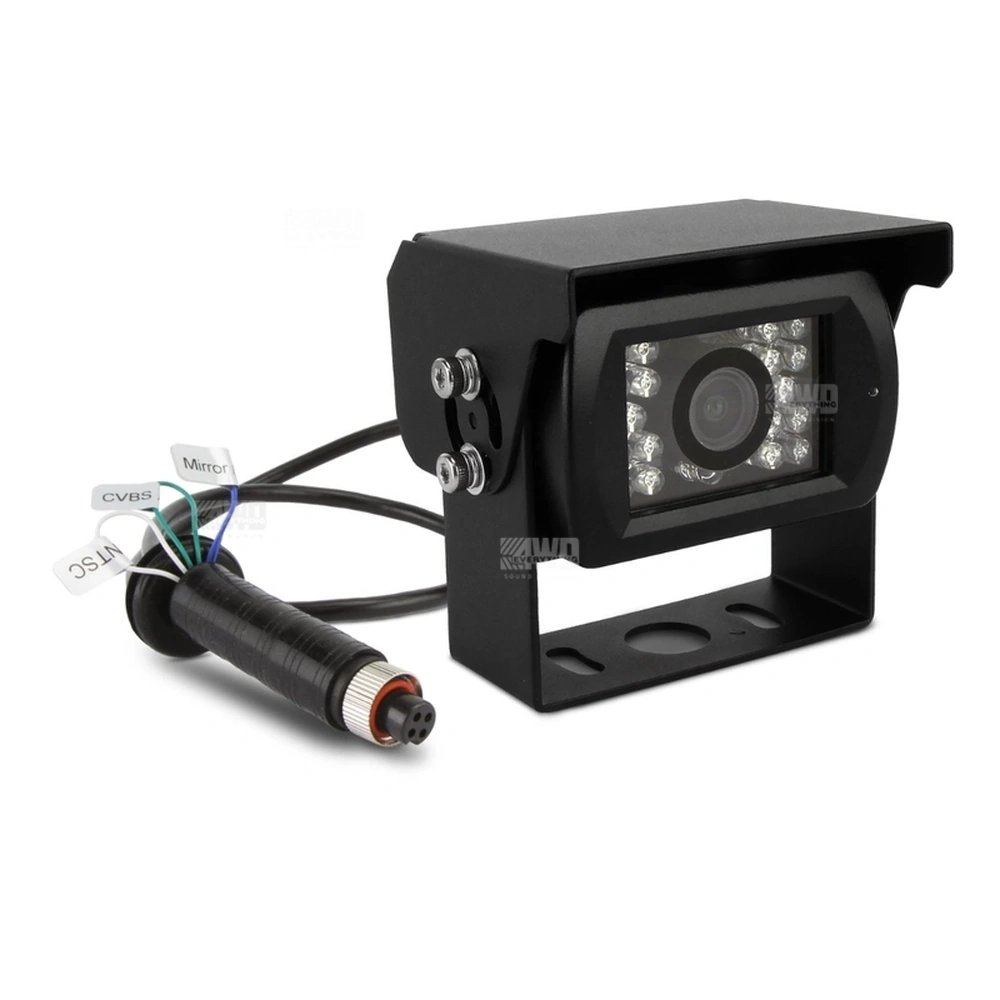

PAL/NTSC format (White wire):  By default is set to PAL format.  (Cut wire to change to NTSC format)
Mirror Image (Blue wire):  By default is set for rear camera installation.  (Cut wire to change image for front camera installation)
CVBS/AHD format (Green wire):  By default is set to CVBS.  (Cut wire to change to AHD 1080P)

This all metal waterproof construction CCD camera is ideal for trucks or buses where heavy duty application is required. Operates on 12V or 24V vehicles and includes built in IR LEDs for excellent night visibility and microphone for extra safety.

90° Horizontal Viewing angle (CVBS)
110° Horizontal Viewing angle (AHD)
Horizontal Resolution: 420TV Line
IR LEDS: 18 IR Led
Operating Voltage: 12V or 24V DC
Sun Visor Included
Microphone Included
Material: Aluminium alloy shell
S/N ratio: >48db
Waterproof rating to IP68
Video output: 1Vp-p 75 ohm composite

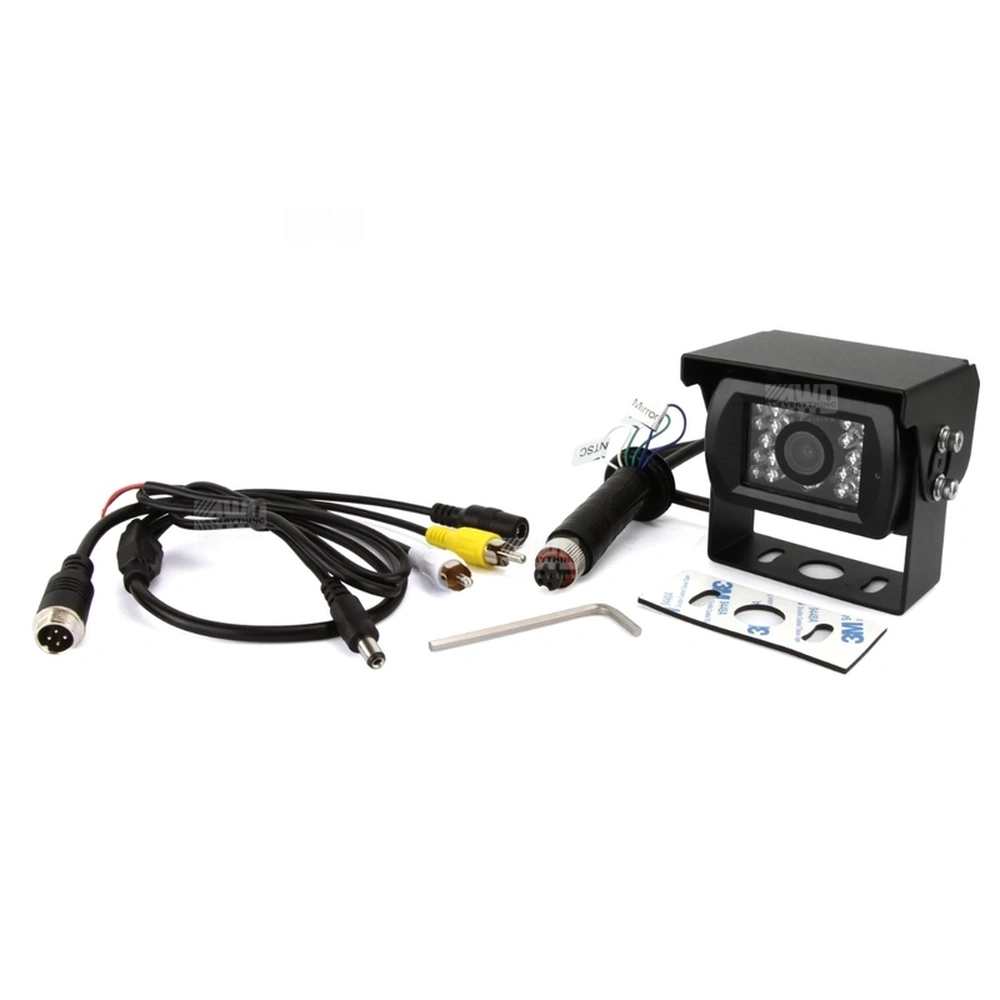

Supplied with 0.6m 4pin water resistant lockable connector
Dimensions (With Sunvisor): 76.5mm W x 77mm H x 64.5mm D
Dimensions (Without Sunvisor): 74mm W x 71mm H x 50mm D
Packaging: White Box with DNA Sticker



SKU RV100-HYB
Brand DNA DESIGNER AUDIO
