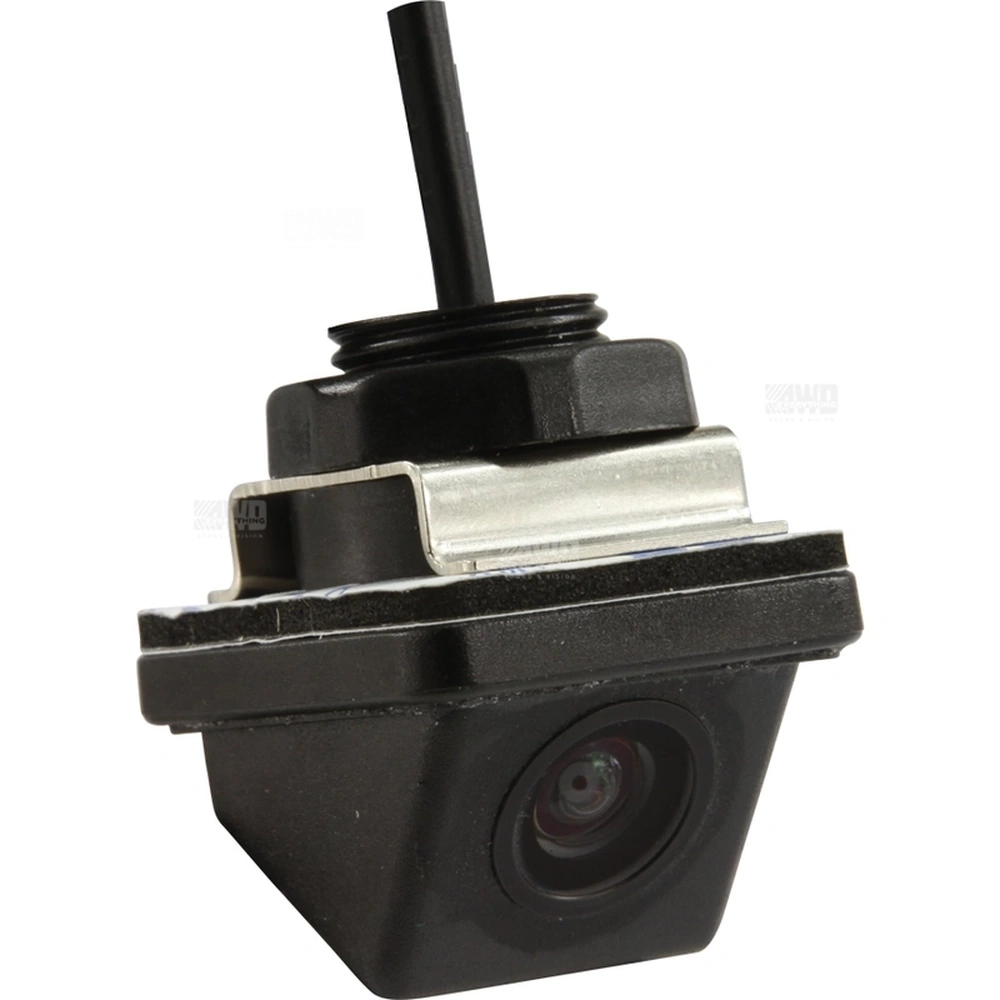

DNA Audio RCO170 CMOS Reverse Camera OEM Stalk Mount - PAL/NTSC

SKU:RCO170

RRP $107.95
$98.00
SAVE $9.95 (9%)


Calculate Shipping

CMOS Reverse Camera OEM Stalk Mount

This camera is ideal for OEM applications, where wiring is concealed for a neat and professional finish.

Model Strengths:
OEM Solution
Plastic housing with self locking plate and nut
Requires 22mm Hole
PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*

Features:
Includes selectable options: PAL/NTSC video format and reverse mirror imaging.
Camera also comes with a stalk mount and has a Waterproof IP68 rating.

Specifications:
Image Sensor:                   CMOS
Video System:                   PAL or NTSC (Selectable)
Scanning area:                  4.88mm*3.67mm
Resolution:                        976(H)*592(V)
Horizontal Resolution:       700 TVL
Electronic Shutter:             1s-1/10000(S)
SNR:                                  =45.0dB
Min Illumination:                0.01Lux
Video Output:                    1.0V±0.5Vp-p 75O
View Angle:                       170°
Working Voltage:               DC6V-15V±0.5V
Consumption:                    100mA±10%
Waterproof Rating:            IP68

Camera Body Size:            29mm W x 22mm H x 32mm D
Hole Size:                          22mm Diameter

Packaging:                        DNA Gift box with sleeve
SKU RCO170
Brand DNA DESIGNER AUDIO
