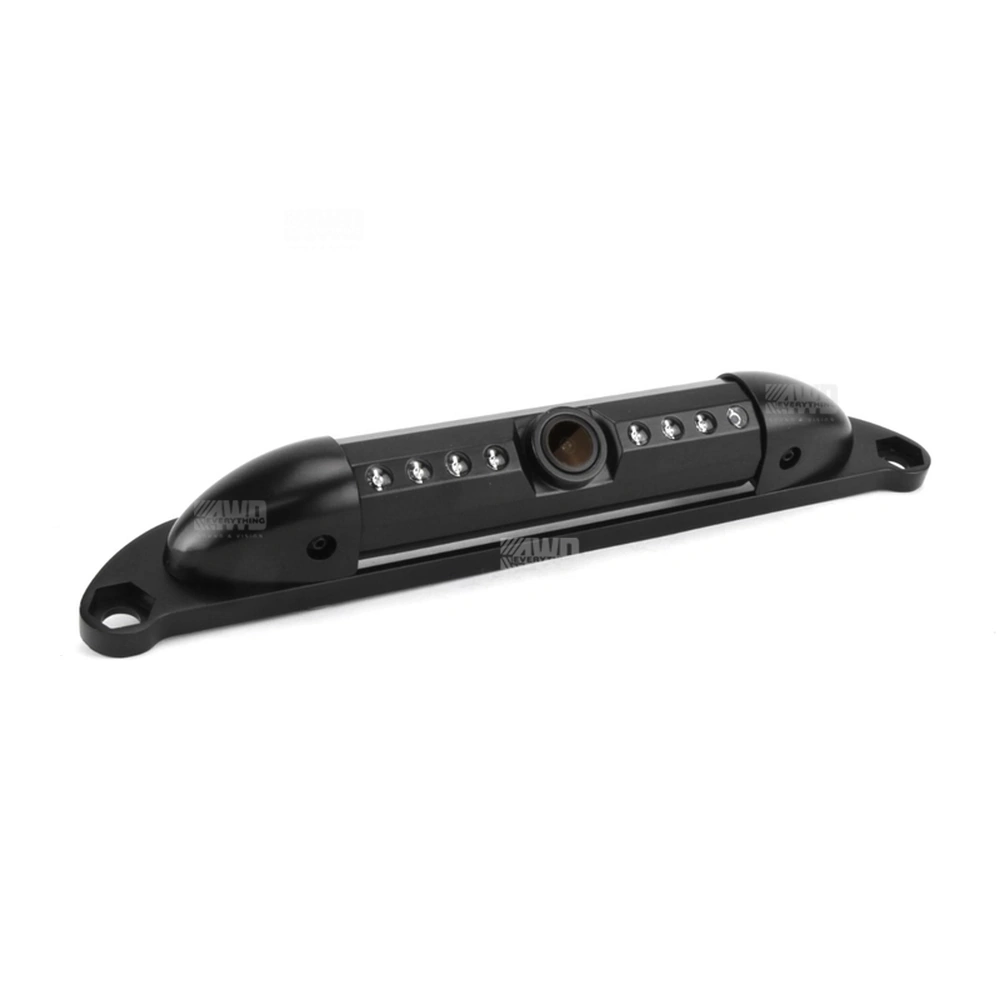

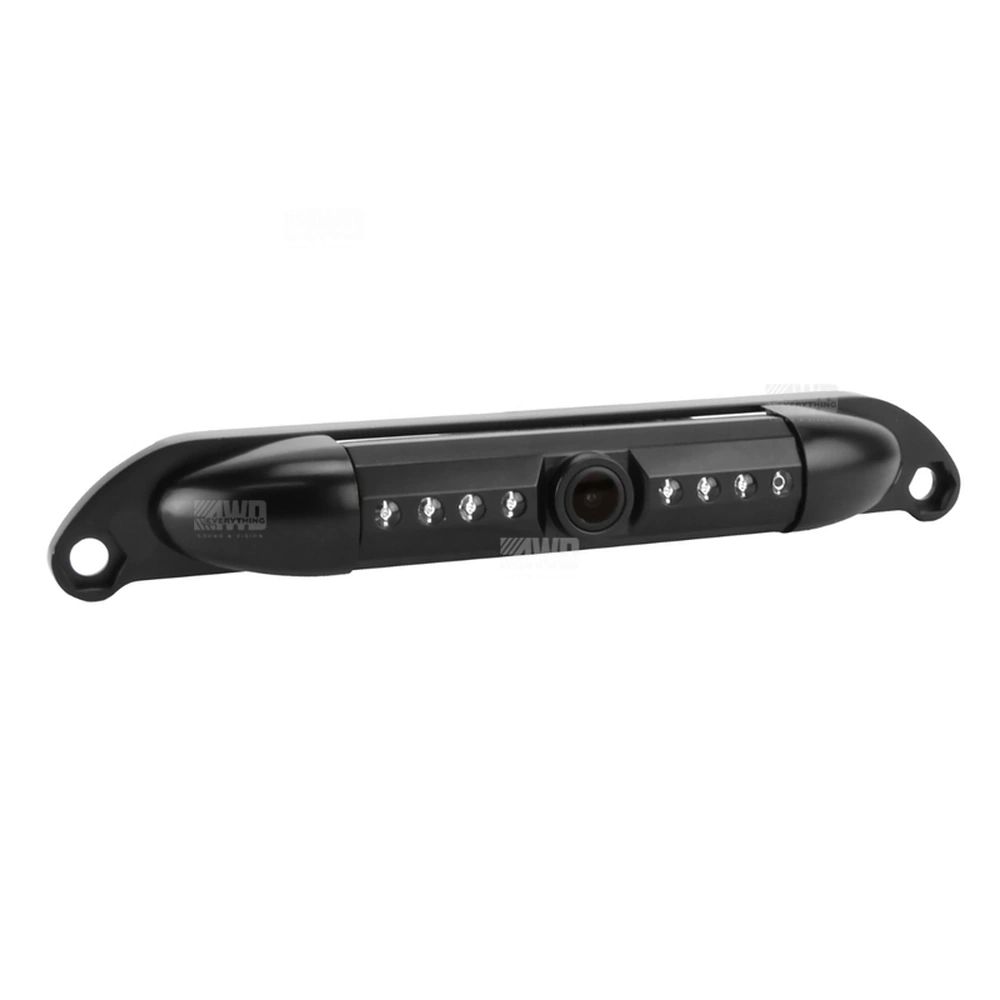

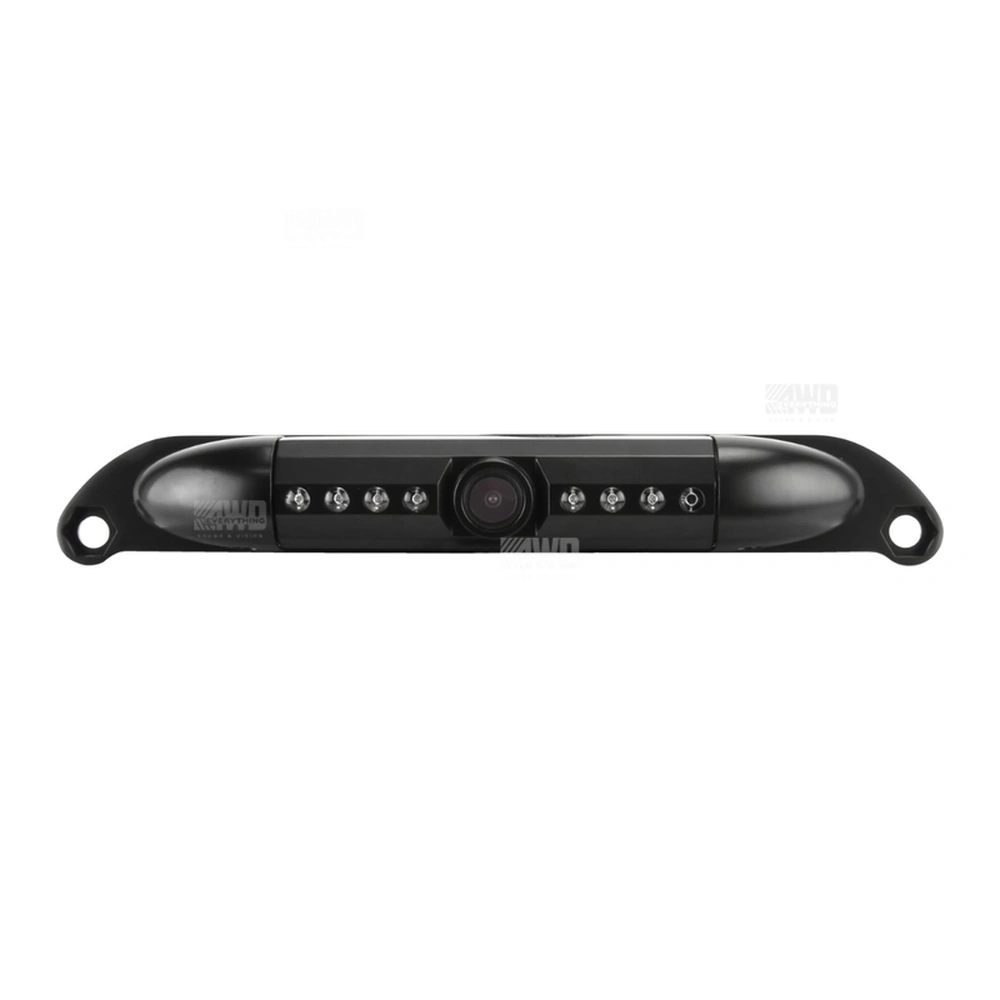

DNA Audio RCC170 CMOS Reverse Cabin Camera

CMOS Reverse Cabin Camera

This compact unit is perfect using as an cabin camera for Utes.
Equipped with IR's for excellent night vision and a tiltable lens for precise angle adjustment, gives you crystal-clear footage whether you're reversing or keeping an eye on the cabin.
Built with a tough metal housing and rated waterproof.

Model Strengths:
Universal
Zinc Alloy Housing
PAL / NTSC Selectable*  (By default set to PAL.  To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*

Features:
Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.

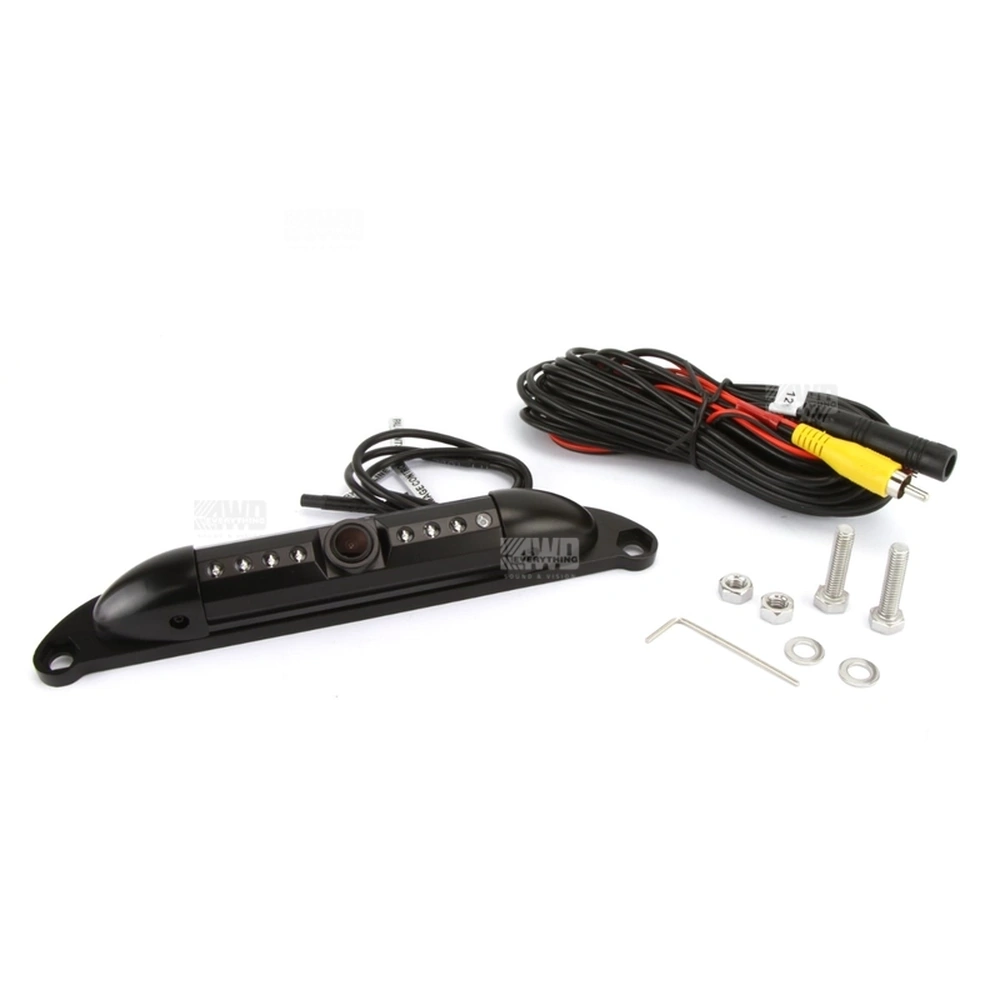

Camera also includes number plate mounting bracket and has a Waterproof IP68 rating.
Ideal for a wide range of vehicles wanting a safety solution. Rear or front mounting applications.

Selectable features:
PAL/NTSC format (Purple wire):  By default is set to PAL format.  (Cut wire to change to NTSC format)
Image Control (Green wire):  By default is set for rear camera installation.  (Cut wire to change image for front camera installation)
Parking Line (White wire):  By default is set to show parking lines.  (Cut wire to turn off)

Specifications:
Image Sensor:                   CMOS
Video System:                    PAL or NTSC (Selectable)
Scanning area:                   4.88mm*3.67mm
Resolution:                         976(H)*592(V)
Horizontal Resolution :    700 TVL
Electronic Shutter:            1s-1/10000(S)
SNR:                                     =45.0dB
Min Illumination:               0.01Lux
Video Output:                    1.0V ±0.5Vp-p 75O
View Angle:                        170°
Working Voltage:               DC6V-15V ±0.5V
Consumption:                    100mA ± 10%
Waterproof Rating:           IP68
Camera Body Size:
Bracket Size:
Hole Range:

Packaging:                          DNA Gift box with sticker
