DNA Audio RCB170 CMOS Reverse Camera Butterfly & Flush Mount - PAL/NTSC

SKU:RCB170

RRP $99.95
$90.00
SAVE $9.95 (10%)


Calculate Shipping

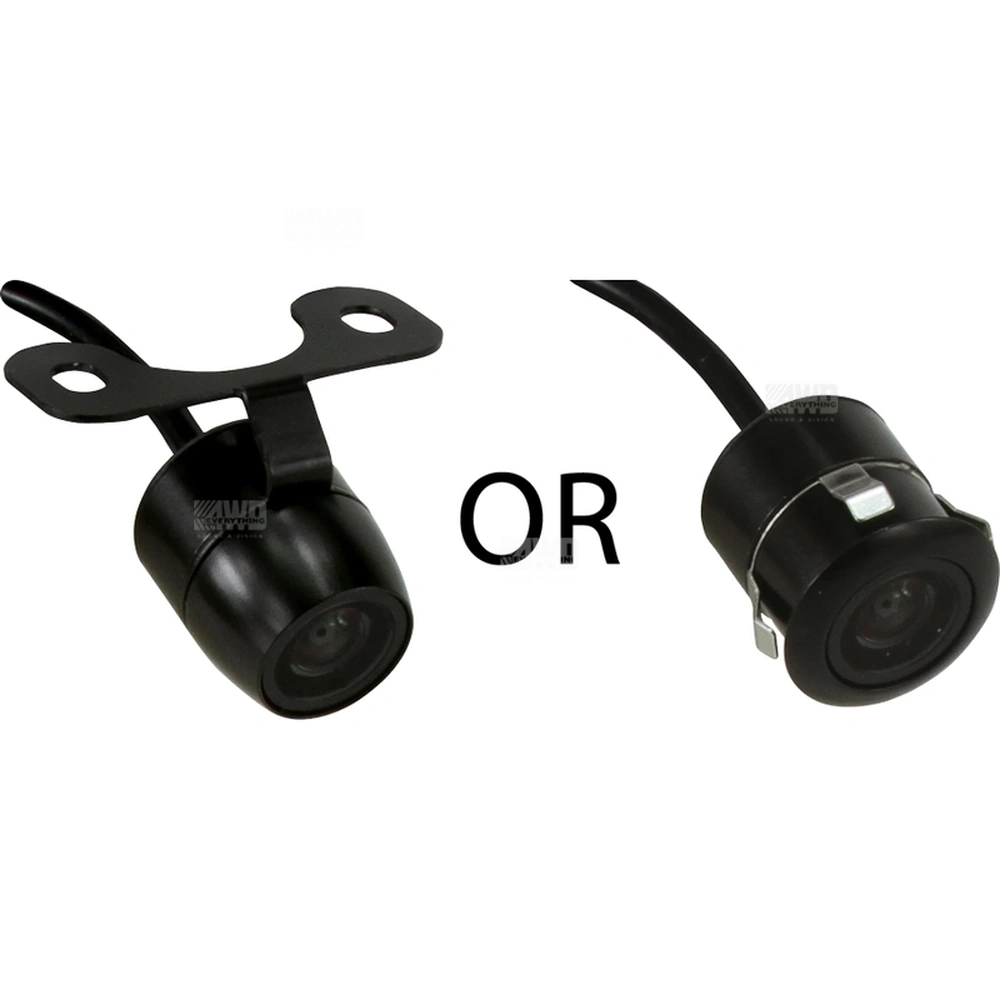

CMOS Reverse Camera Butterfly & Flush Mount

This miniature butterfly camera is a truly universal solution for multipurpose vehicle installations.
Model Strengths:
Universal
Zinc Alloy Housing
Miniature
Side Mounting Option
PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*

Features:
Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.
Camera also includes butterfly mount and flush mount and has a Waterproof IP68 rating.
Ideal for a wide range of vehicles wanting a safety solution. Rear, front or side mount applications.

Selectable features:
PAL/NTSC format (Purple wire): By default is set to PAL format. (Cut wire to change to NTSC format)
Image Control (Green wire): By default is set for rear camera installation. (Cut wire to change image for front camera installation)
Parking Line (White wire): By default is set to show parking lines. (Cut wire to turn off)

Specifications:
Image Sensor:                   CMOS
Video System:                   PAL or NTSC (Selectable)
Scanning area:                  4.88mm*3.67mm
Resolution:                        976(H)*592(V)
Horizontal Resolution:       700 TVL
Electronic Shutter:             1s-1/10000(S)
SNR:                                  =45.0dB
Min Illumination:                0.01Lux
Video Output:                    1.0V±0.5Vp-p 75O
View Angle:                       170°
Working Voltage:               DC6V-15V±0.5V
Consumption:                    100mA±10%
Waterproof Rating:            IP68
Camera Body Size:            Butterfly Mount:  23mm L x 19mm Diameter / Flush Mount:  23mm L x 20mm Diameter
Butterfly Base Size:           38mm L x 16mm W
Packaging:                        DNA Gift box with sleeve
SKU RCB170
Brand DNA DESIGNER AUDIO
