ULTRA VISION LIGHTING

Behind Grille Light Bar Kit Suits Toyota 300 Series Land Cruiser GR Sport 2021 - March 2025

SKU:BGLB-LC300-205-KIT-CB

$1,515.00


Calculate Shipping

Behind Grille LED Light Bar Kit

Get the power of Ultra Vision’s Nitro Maxx 205w LED light bar on your 300 Series Land Cruiser GR Sport without investing in a bull bar. Suits Model: 2021 - March 2025

  • Designed specifically for the Toyota 300 Series Land Cruiser GR Sport Models
  • No bull bar required
  • No cutting or drilling required
  • Includes 1 x Nitro Maxx 205w LED Light Bar with 1300m beam distance at 1 lux
  • Brackets powder-coated black for sleek design and rust preservation
  • 5-Year warranty
  • Designed and made in Australia

The Nitro Maxx 205 light bar comes on with your high beams for the best visibility when you’re out on the road early in the morning or when the sun goes down.

When installing, there’s no need to cut or drill into your grille as the bracket system has been designed to mount to existing points on the body.

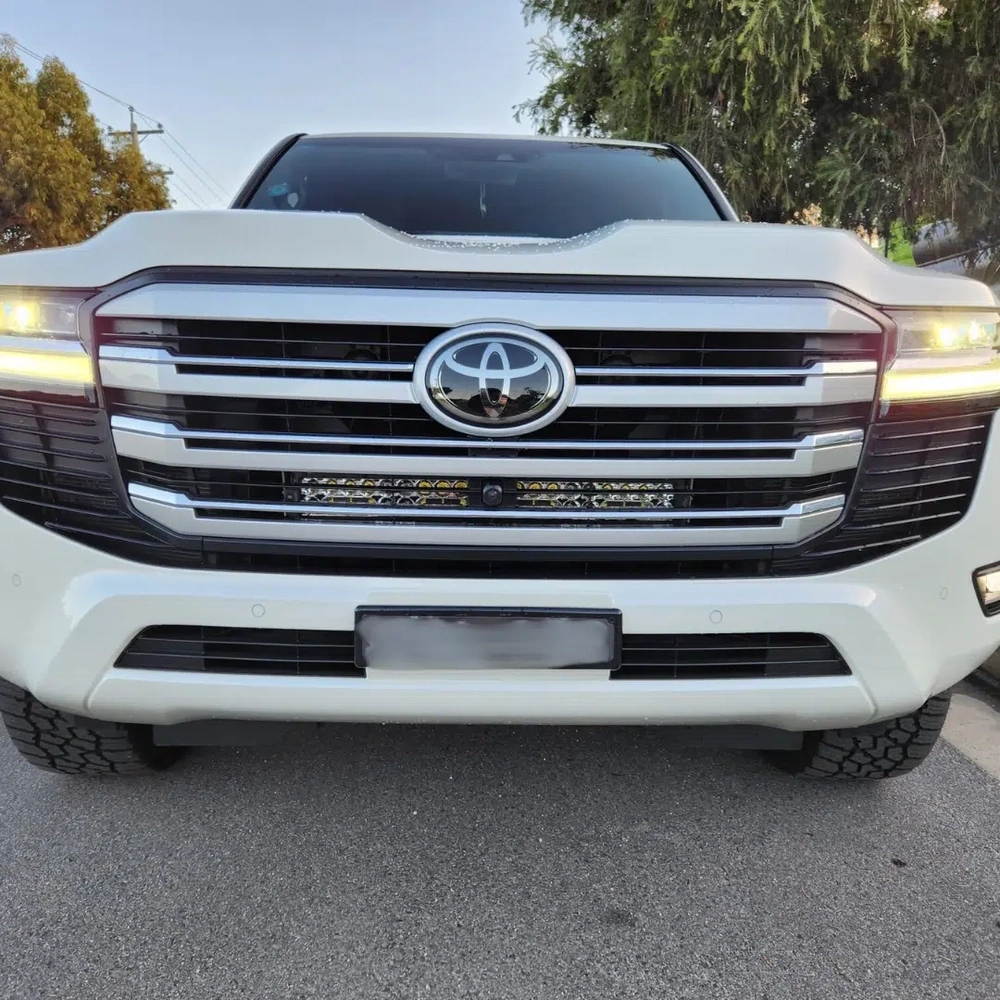

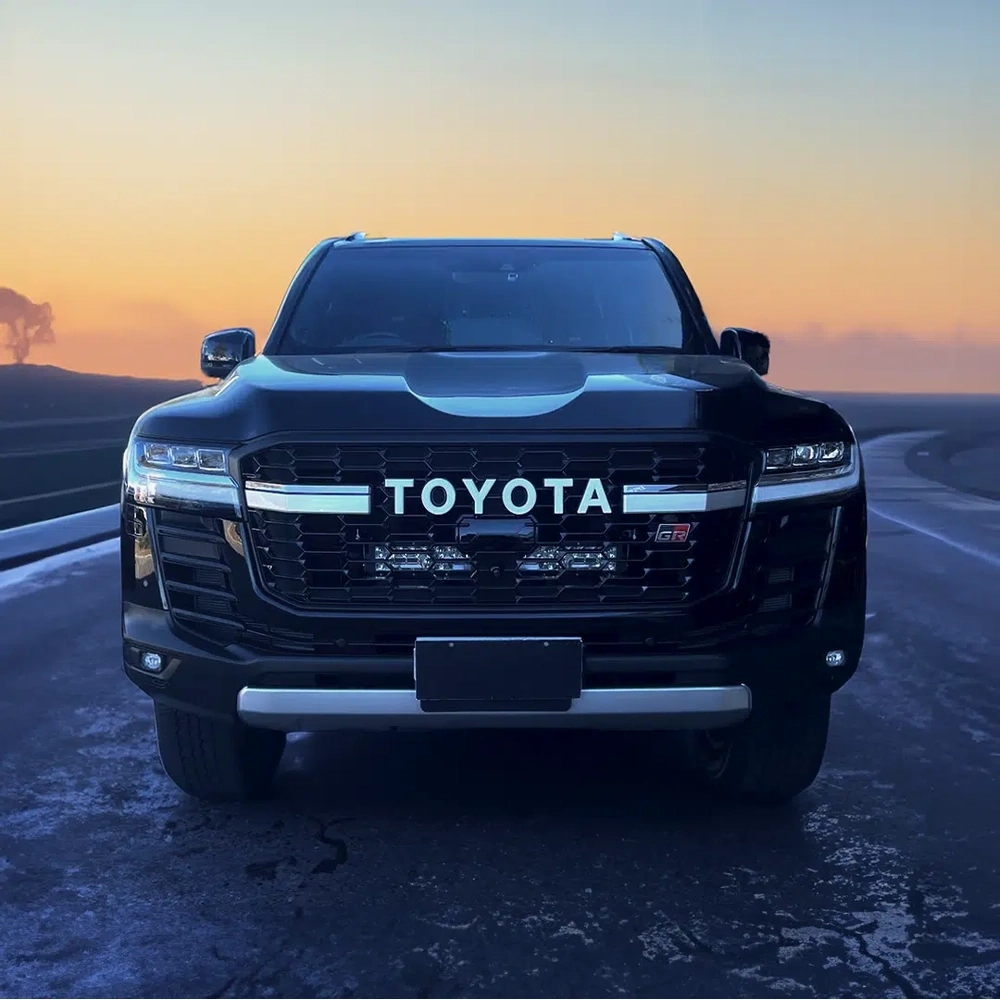

Installing the light bar behind the grille is a great way to reduce the impact on the features of the vehicle. Spotlights on a bull bar can affect the radar sensor behind the badge and a nudge bar can affect the front camera. With this light bar kit, there will be no interference on any safety features.

Each kit comes complete with:

  • 1x Nitro Maxx 205w 24-Inch LED Light Bar in 5700K
  • 1x Wiring harness to suit
  • 1x Purpose-built 300 Series LC behind-grille black powder-coated bracket kit
  • 1x Can Bus high beam module
  • 1x OEM-Style switch to fit into factory switch blank
  • 1x Mounting hardware kit (nuts, bolts and brackets)
  • Fitting and wiring instructions

Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille light bar kits that are fitted with any other lighting brands.

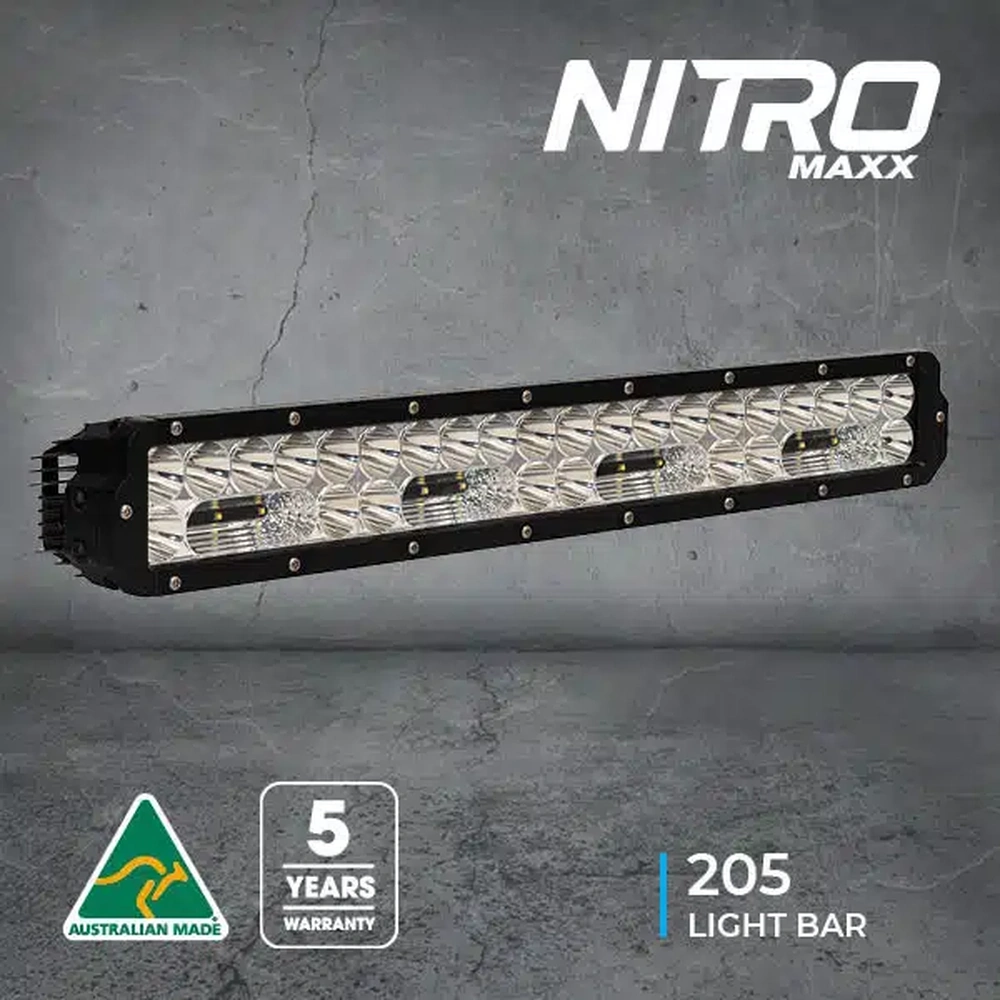

  Nitro Maxx 205 Light Bar Specifications
Wattage 200 Watts
Light Source 40 x 5w LED's
Light Output – Raw 24,640 Lumens
Light Output – Effective 17,724 Lumens
Voltage 9-36V
Current Draw 15A
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP68
Connector Type Plug 2 Pin std Deutsch
Housing 6063 T5 Aluminium
Outer Lens Construction Polycarbonate
Brackets Sliding Base / Side Mounts
Colour Temperature 5700K
Lifespan 50,000 Hours
Dimensions 605 x 92 x 84mm
Net Weight 3.4kg
Mounting Suitable Base and Side Mount
Beam Types Combo and Widr
Warranty 5 Years
SKU BGLB-LC300-205-KIT-CB
Brand ULTRA VISION LIGHTING
