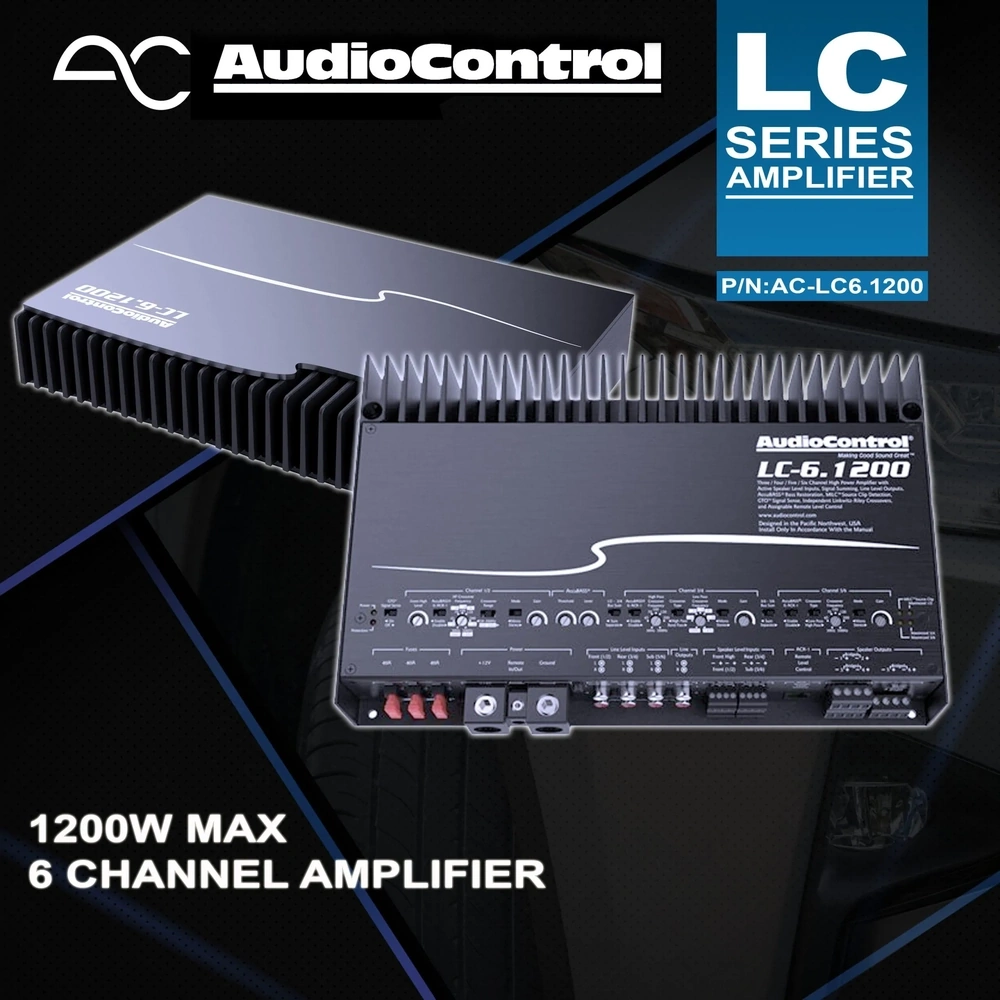

AudioControl LC Series 6 Channel Amplifier

HIGH-POWER MULTI-CHANNEL AMPLIFIER WITH ACCUBASS

Building from the hugely successful LC-4.800 multi-channel amplifier, the LC-6.1200 is surely the most flexible 6 channel amplifier on the market. Featuring eight active speaker level inputs with summing, coupled with an intuitive three-way Linkwitz-Riley crossover network, the LC-6.1200 can be easily integrated with most factory installed source units. The patented AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.

More control and features include our GTO Signal Sense, MILC Source Clip Detection and assignable Remote Level Control. The LC-6.1200 builds on the legacy of audio passion and a focus on user-friendly features, making this a perfect solution based amplifier.

Features

• Configurable as 6/5/4/3/2 channel amplifier
• 6 x 200 watts @ 2 ohms
• 6 x 125 watts @ 4 ohms
• 400 watts @ 4 ohms bridged
• AccuBASS® Processing
• MILCTM Maximum Input Level Control (Patent Pending)
• GTOTM Signal Sense
• 3-way Independent Linkwitz-Riley Alignment crossovers
• Summable active speaker-level inputs (8 channels) for OEM integration
• 6 preamp inputs
• 2 assignable preamp outputs
• PFM Subsonic Filter
• Optional ACR-1 assignable remote control
• Solid One-Piece Aluminum Chassis

Inputs

• Preamp Inputs: 6 balanced
• Preamp Input Voltage Range: 250 mV – 8 Vrms
• Speaker Level Inputs: 8
• Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs

• Rated Continuous (RMS) Power at 14.4V:
  • 4 Ω – 125 W x 6 RMS
  • 2 Ω – 200 W x 6 RMS
  • Bridged 4 Ω – 400 W RMS
• Preamp Outputs: 2
• Maximum Preamp Output: 8.5 V RMS

Performance

• Frequency Response: 10 Hz – 30 kHz
• Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
• THD+N: < 0.1%
• Minimum Power / Ground Wire Gauge: 3 AWG wire
• Fuse Rating: 3 x 40 A
• Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz

Weights & dimensions

• Dimensions: 12″W x 8.0″D x 2.1″H
• Weight: 7.2lbs. (3.3kg)

in the box: LC-6.1200, Speaker Connectors, Fuses, Manual, Warranty

Specifications
