Alpine INE-AX809 + Aerpro AKTO37 Bundle 9" Trapezoid Head Unit with Install Kit to suit Toyota kluger 2014-2019

Wireless CarPlay and Android Auto

SKU:INE-AX809_AKTO37

RRP $1,519.00
$1,280.00
SAVE $239.00 (16%)
Available Options

Calculate Shipping

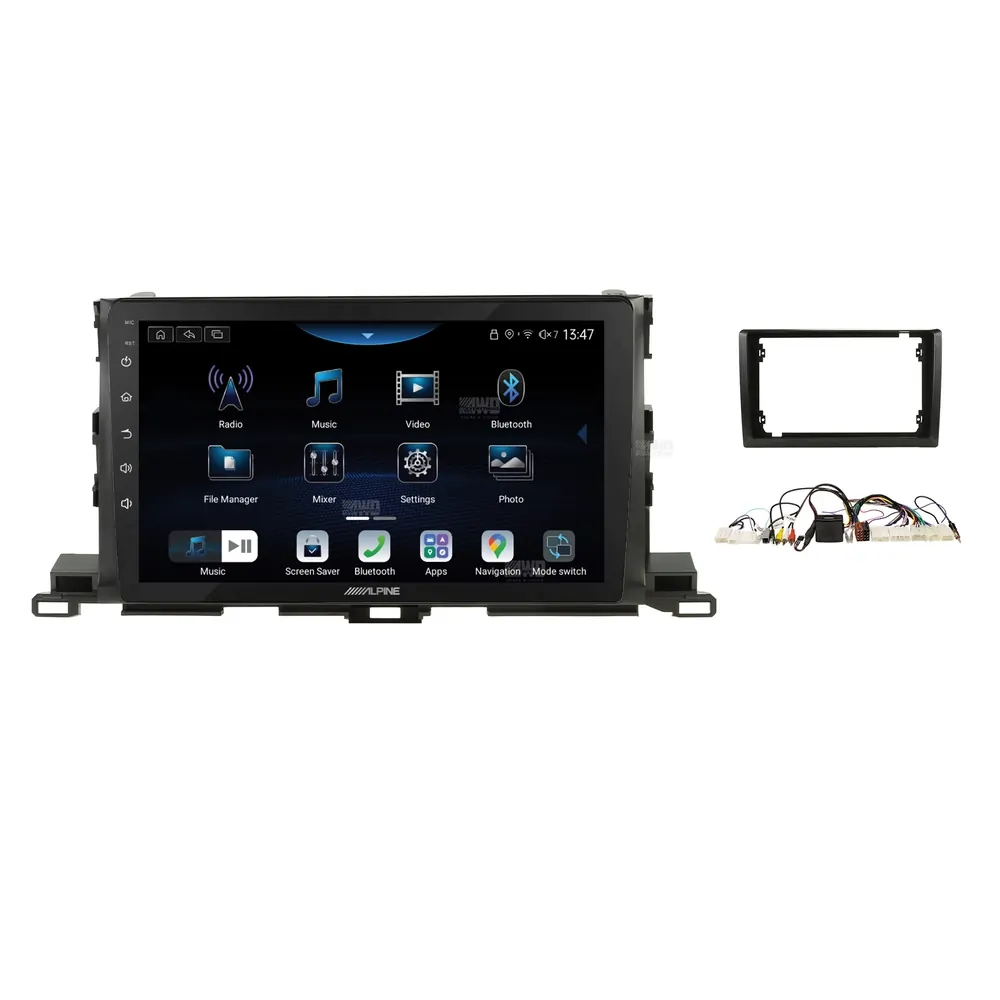

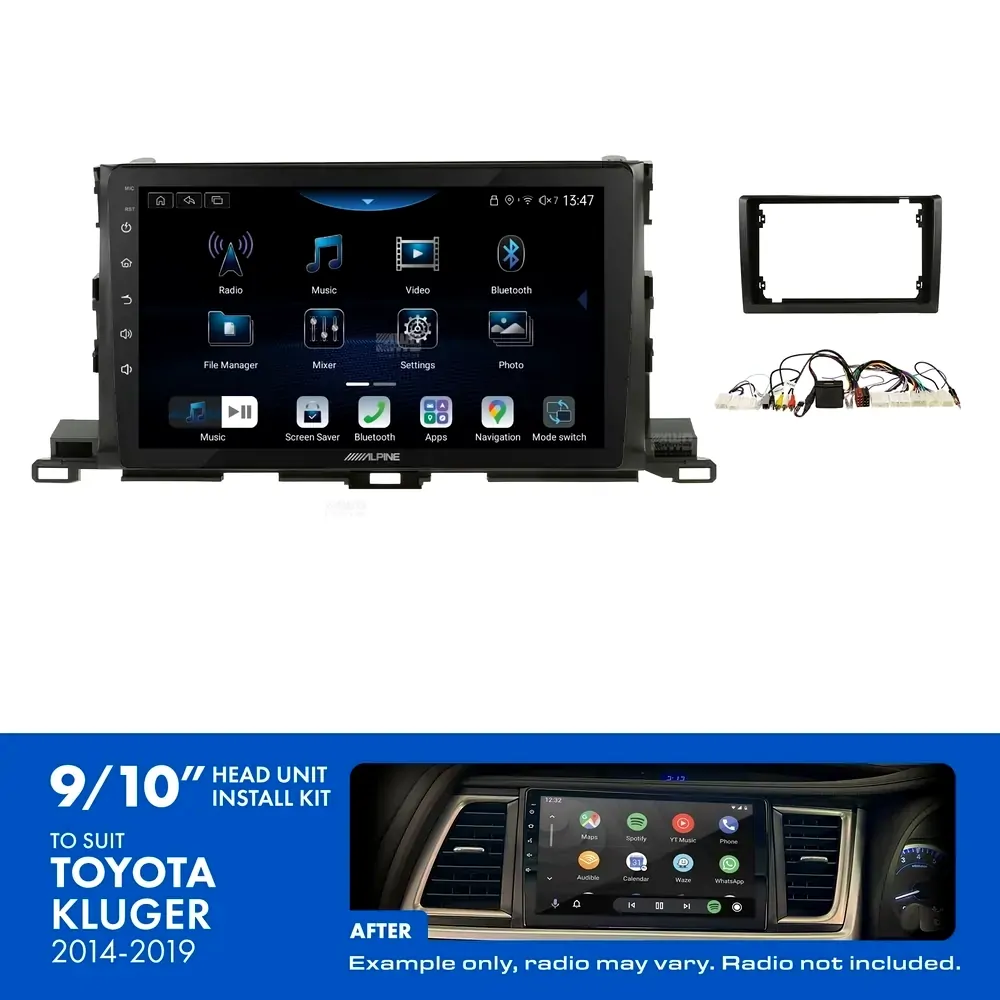

This complete bundle includes the Alpine trapezoid head unit and installation kit for a seamless and easy installation.

The new Alpine INE-AX809, upgrade to modern and outstanding features to enhance your driving experience. With a powerful CPU and 8GB RAM/256GB storage, The INEAX809 display provides quick and convenient access to applications and features, supporting various multimedia formats and Hi-Res Audio playback for superior sound quality. The design seamlessly integrates with your car for a perfect fit.

FEATURES

Connections

  • Apple CarPlay (wireless or cable connection)
  • Android Auto (wireless or cable connection)
  • 3 x USB
  • Bluetooth 5.0 / HDMI / AUX-In
  • AV-In / AV-Out
  • Support 4G / WiFi / GPS
  • Rear camera PAL / AHD / 360° (1080P)
  • CAN Interface / SWC Learning Type

 Display & Illumination

  • RAM 8  ROM 256G  8-Core
  • CPU: Qualcomm® Snapdragon™ 665
  • Processor 2.0 GHz
  • 9-inch and 10-inch / Touch screen
  • Screen Resolution 1280 x 720px (HD)
  • New Features Update

Media

  • Supports Variety Of Applications
  • USB for music and Video
  • Bluetooth phone and music streaming
  • Radio tuner
  • Mirror link
  • Audio Playback: MP3 / M4A / AAC / AMR / WMA / WAV / MID / FLAC / OGG
  • Video Playback : MPEG / MP4 / 3GP / MKV / AVI / FLV

Sound & Tuning

  • Advanced sound tuning
  • Optical Output
  • 48 Bands Parametric EQ Per Channel
  • DSP Chip: AKM7739

The Aerpro AKTO37 9/10" Installation Kit comes with all of the components required to install a 9/10" trapezoid shaped radio into your Toyota Kluger (2014-2019) vehicles whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Important Information:

  • This kit is developed to suit universal trapezoid shaped radios and Aerpro AM9X & AM10X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
  • The facia kit is designed for left hand drive (LHD) vehicles. The kit will fit without modification however it is recommended to remove the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly.
  • Feature Retention will be radio dependent.

Features

  • To suit Toyota Kluger (2014-2019) vehicles
  • Includes all the parts required to complete the installation and to retain important vehicle features
  • Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped)
  • To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Specs

  • Kit Inclusions:
    • Black Facia Kit
    • Steering Wheel Control Interface Harness
    • SWC Patch Lead
    • Adaptor to allow for 9" and 10" radios to be installed
    • Antenna Adaptor
    • Camera Retention Adaptor
    • Factory USB Retention Harness
  • Vehicle Feature Retention:
    • Steering Wheel Controls: Yes (including phone button)
    • Factory Reverse Camera: Yes (if equipped)
    • AUX Input: Yes
    • USB Input: Yes
    • Parking Tones: N/A
    • Factory Amplifier: No
    • Vehicle Menu: No
    • Other
  • Important Information:
    • This kit is developed to suit universal trapezoid shaped radios and Aerpro AM9X & AM10X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
    • The facia kit is designed for left hand drive (LHD) vehicles. The kit will fit without modification however it is recommended to remove the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly.
    • Feature Retention will be radio dependent.

Vehicles known to work with this product

  • Toyota Kluger 2014-2019
SKU INE-AX809_AKTO37
Brand ALPINE
