Alpine INE-AW409S + Aerpro AKTO38 Bundle 9" Trapezoid Head Unit with Install Kit Fits Toyota kluger 2014-2019

Wireless CarPlay and Android Auto

SKU:INE-AW409S_AKTO38

RRP $1,599.00
$1,350.00
SAVE $249.00 (16%)
Available Options

Calculate Shipping

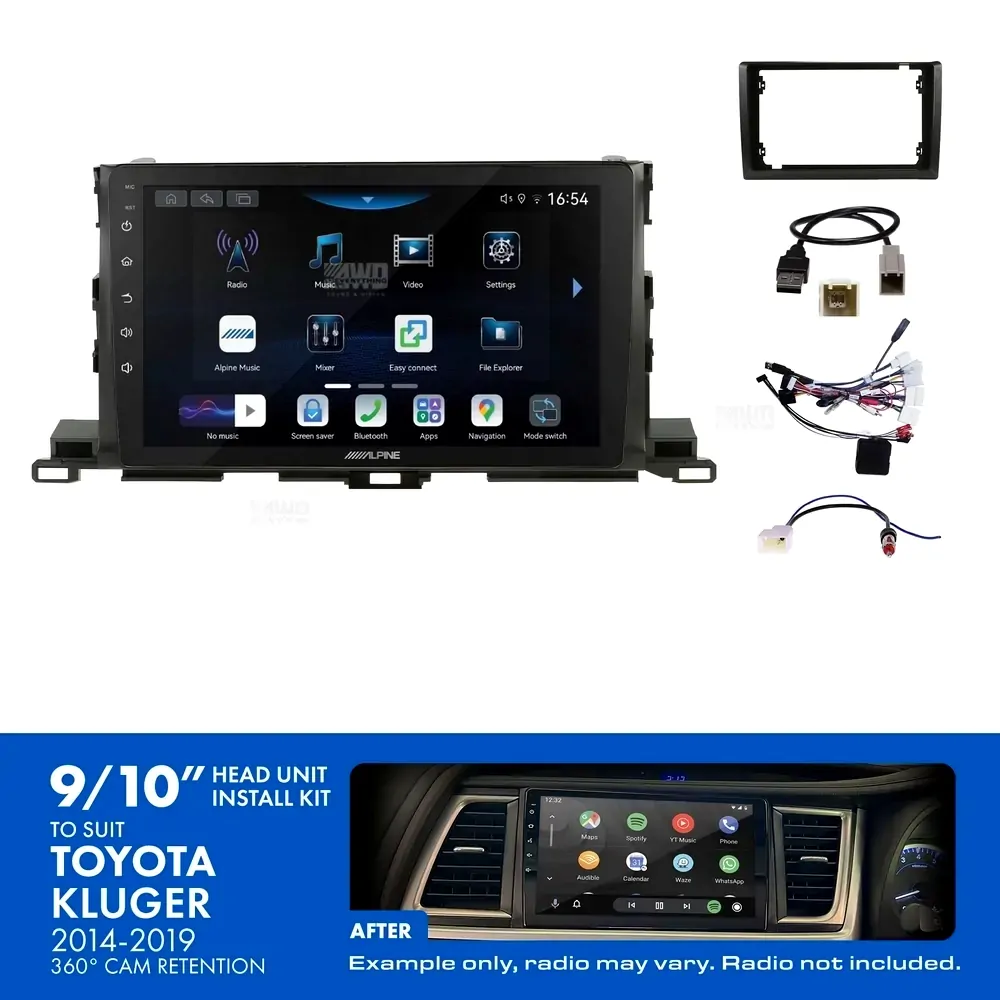

This complete bundle includes the Alpine trapezoid head unit and installation kit for a seamless and easy installation.

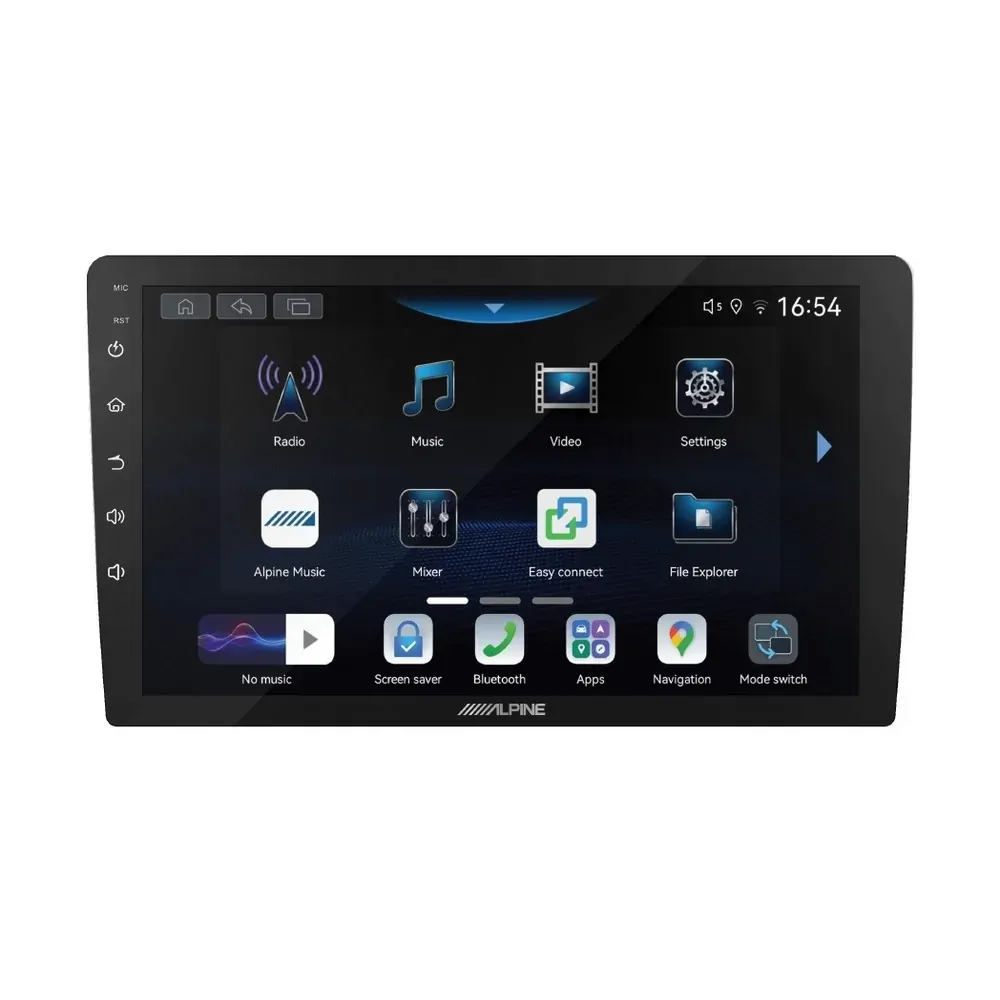

The new ingenious Alpine iNE-AW409S, 9-inch touchscreen display with provide a friendly GUI and work with Alpine OS. The Alpine iNE-AW409S can supports more application more fun, Makes your journey brighter and enlightened. Boost up your sound with Alpine sound quality.

FEATURES

Connections

  • Apple CarPlay (wireless or cable connection)
  • Android Auto (wireless or cable connection)
  • 2 x USB
  • Support WiFi
  • Rear camera CVBS / AHD
  • CAN interface / SWC learning type

 Display & Illumination

  • RAM 2  ROM 32G  4-Core
  • 9-inch Touch screen
  • Screen Resolution 1280 x 720px (Full HD)
  • Friendly interface

Media

  • Applications
  • Bluetooth 5.0 for phone and music
  • Mirror link
  • Radio tuner
  • USB for music : MPEG / WMA / WAV / OGG / FLAC / AAC / AMR / MID
  • USB for video : MPEG1/2 / MPEG4 / H.254 / AVC / MVC / H.265 / HEVC / VP8 / H.263 / VC-1 / MKV

Sound & Tuning

  • Sound Effects EQ mode
  • Fader / Balance

The Aerpro AKTO38 9/10" Installation Kit comes with all of the components required to install a 9/10" trapezoid shaped radio into your Toyota Kluger (2014-2019) vehicles with factory 360 camera, whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Important Information:

  • This kit is developed to suit universal trapezoid shaped radios and Aerpro AM9X & AM10X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
  • The facia kit included in this kit is designed for left hand drive (LHD) vehicles. The kit will fit without modification however it is recommended to remove the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly.
  • Feature Retention will be radio dependent.

Features

  • To suit Toyota Kluger (2014-2019) vehicles with factory 360 camera
  • Includes all the parts required to complete the installation and to retain important vehicle features
  • Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped)
  • To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Specs

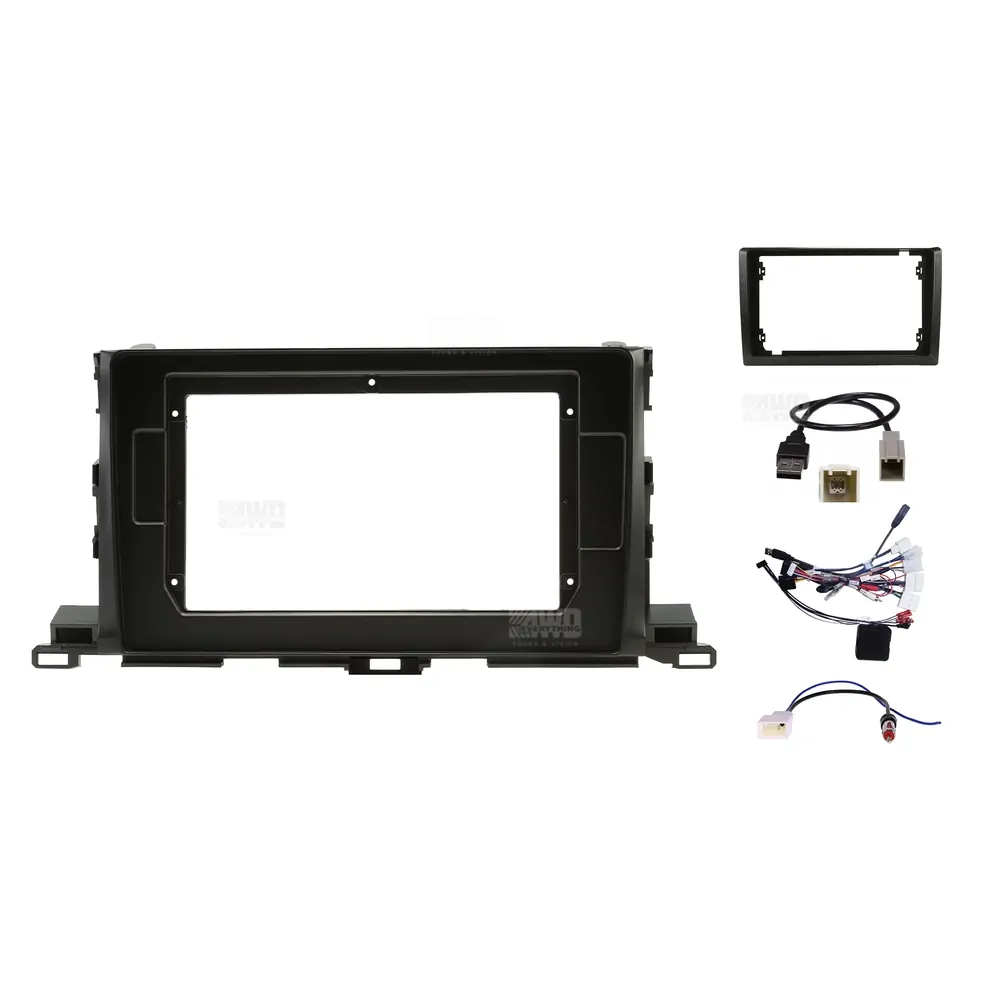

  • Kit Inclusions:
    • Black Facia Kit
    • Steering Wheel Control Interface Harness
    • SWC Patch Lead
    • Adaptor to allow for 9" and 10" radios to be installed
    • Antenna Adaptor
    • Camera Retention Adaptor
    • Factory USB Retention Harness
  • Vehicle Feature Retention:
    • Steering Wheel Controls: Yes (including phone button)
    • Factory Reverse Camera: Yes
    • AUX Input: Yes
    • USB Input: Yes
    • Parking Tones: N/A
    • Factory Amplifier: Yes
    • Vehicle Menu: No
    • Other
  • Important Information:
    • This kit is developed to suit universal trapezoid shaped radios and Aerpro AM9X & AM10X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
    • The facia kit included in this kit is designed for left hand drive (LHD) vehicles. The kit will fit without modification however it is recommended to remove the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly.
    • Feature Retention will be radio dependent.

Vehicles known to work with this product

  • Toyota Kluger 2014-2019
