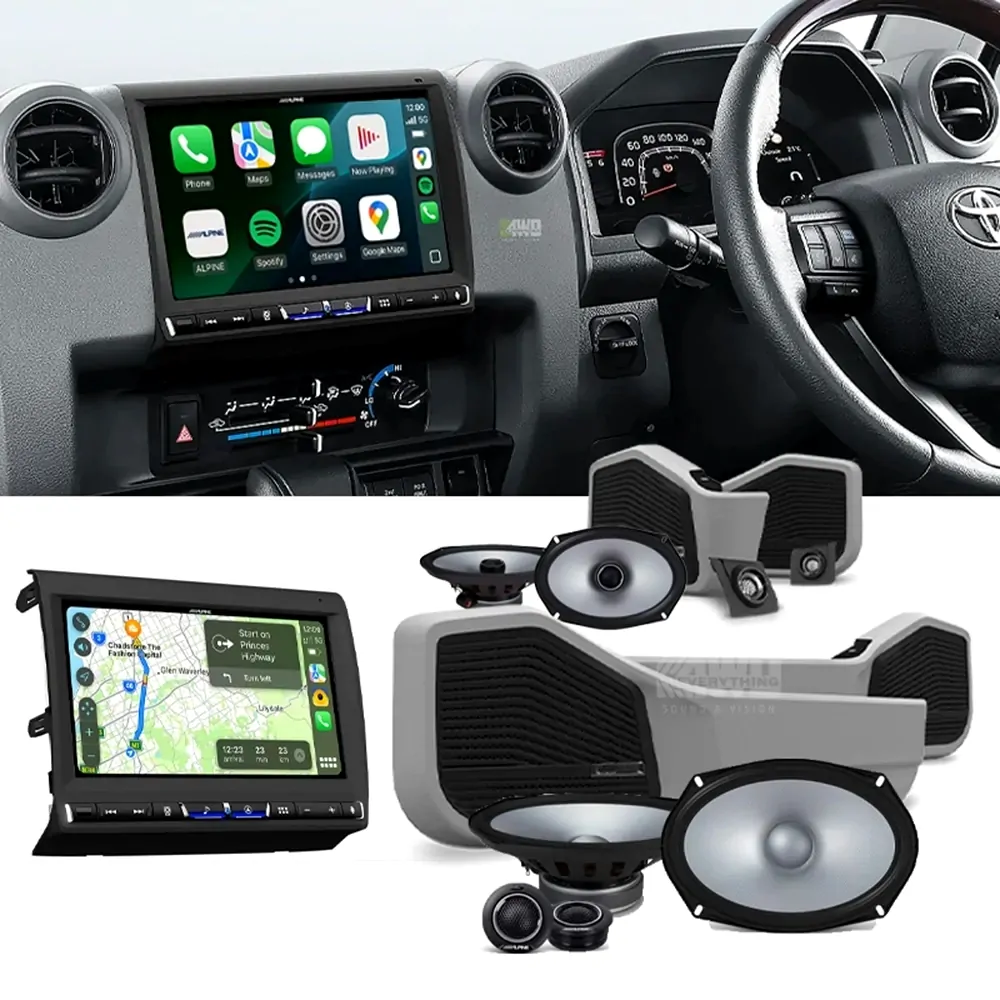

Enhance your driving experience with the ultimate Alpine upgrade bundle, custom-designed for Toyota Landcruiser 70 Series (2024 Onwards). Enjoy seamless connectivity and premium sound quality with Alpine's cutting-edge technology. Experience wireless Apple CarPlay, wired Android Auto, and superior audio performance with front and rear door pods package bundle and powerful 6x9” Speaker System.

Specifically fits Toyota 76 Series and 79 Series Dual Cab. 2024 onwards (Facelift Models with Steering Wheel Control Retention)

Pack includes:

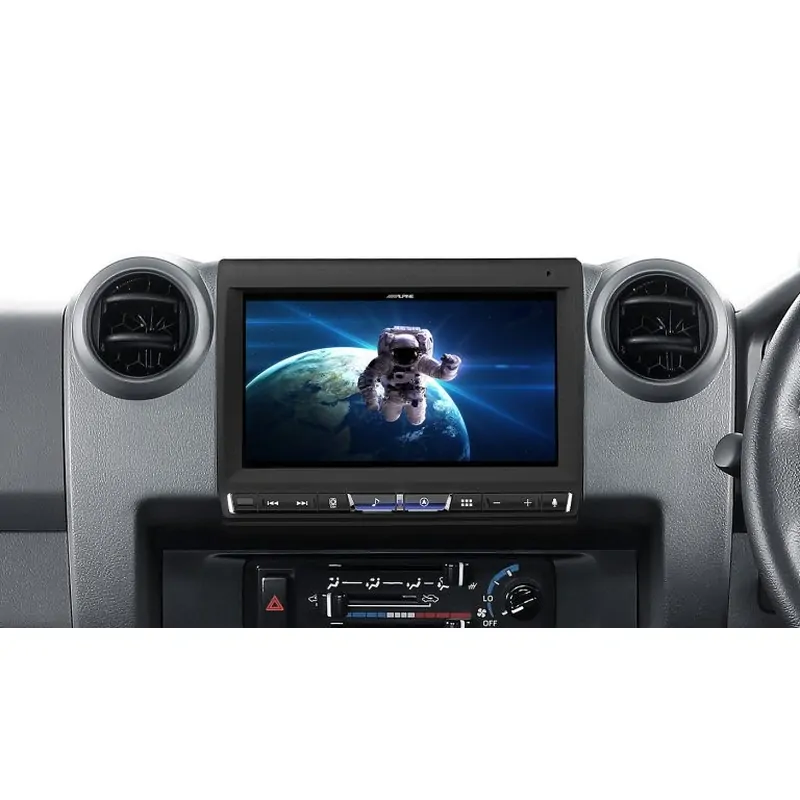

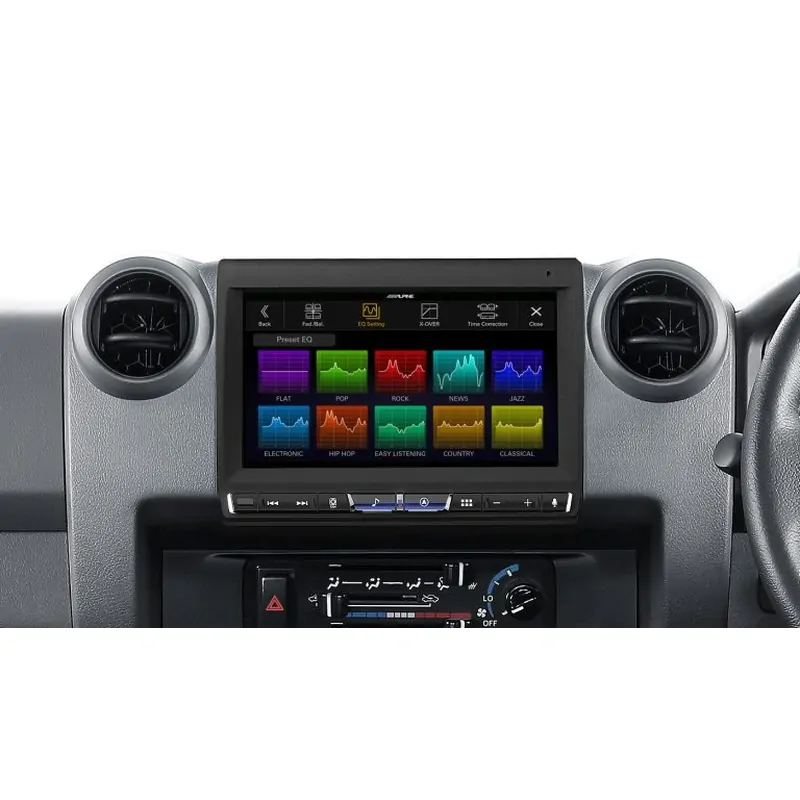

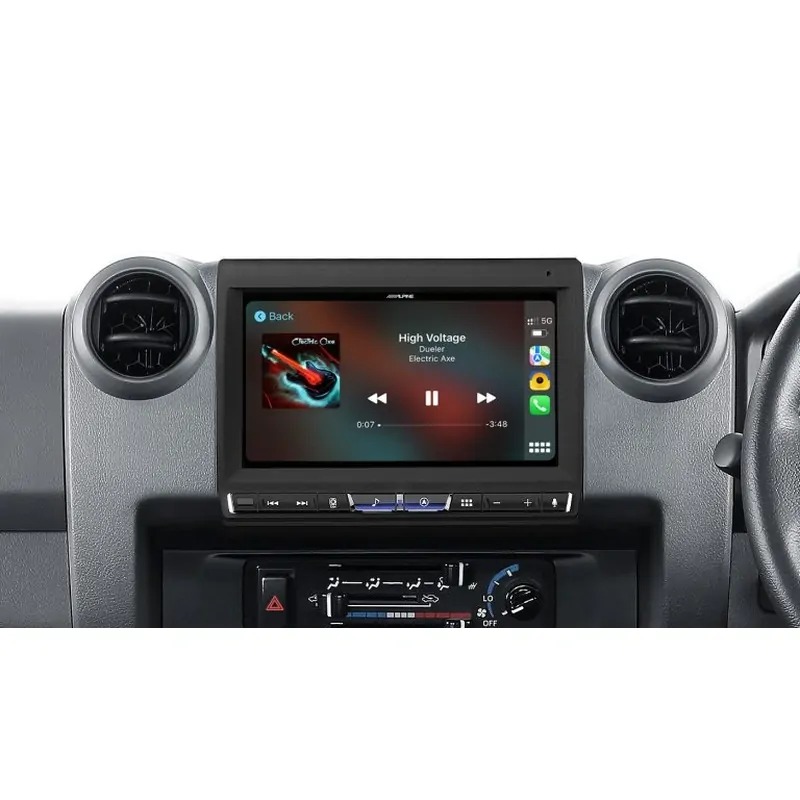

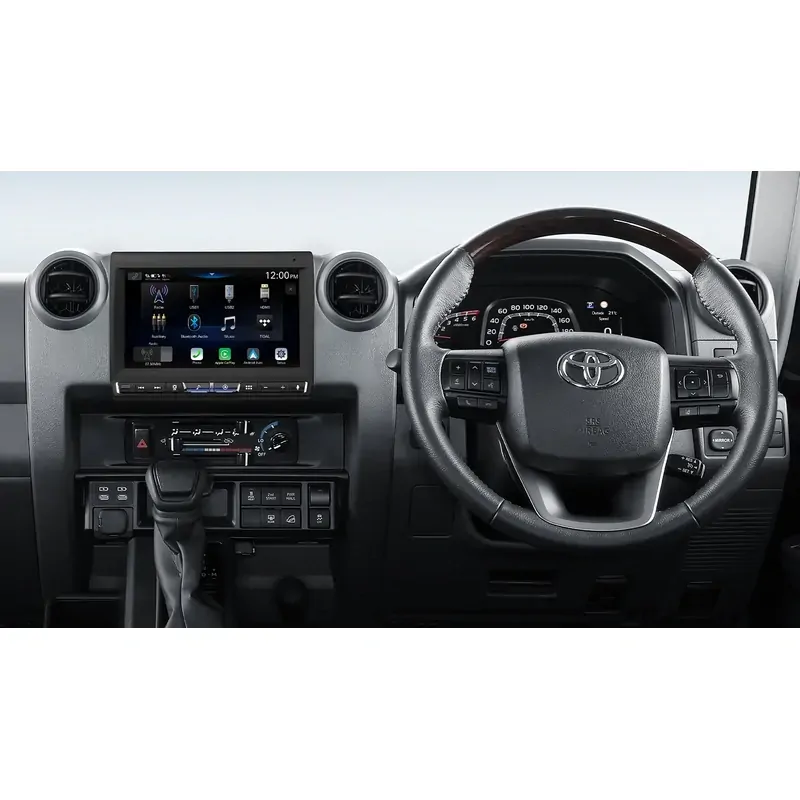

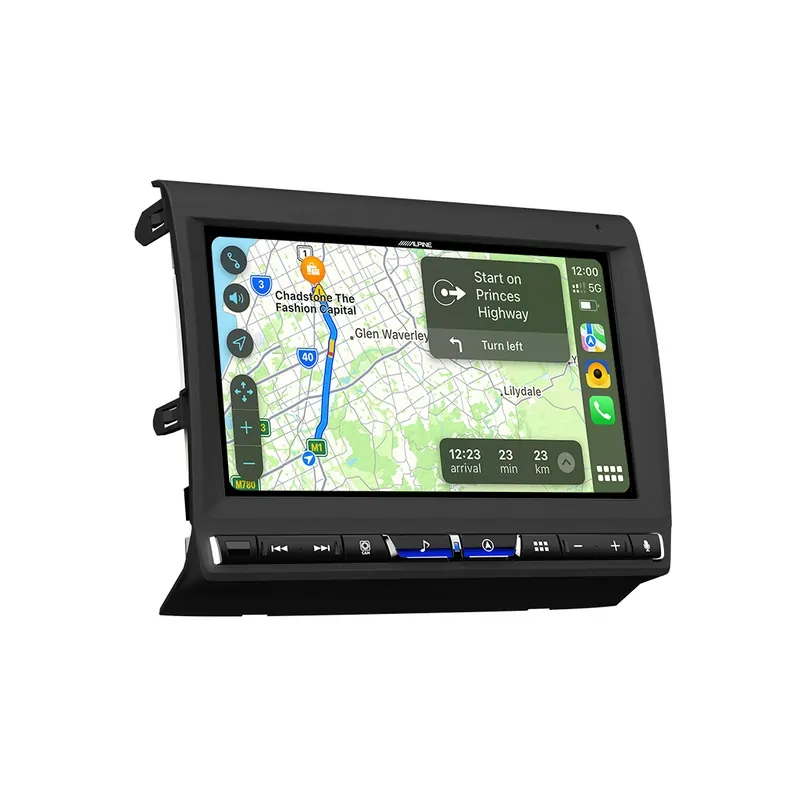

Alpine i905i-LC70-24:
- 11-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
- Steering Wheel Control Retention
- iDatalink Maestro Compatible
- Display angle adjustable after installation
- 3 PreOuts (4 V, Front / Rear / Subwoofer)
- 1 A/V AUX Input (3.5 mm micro jack)
- 1 HDMI input / 1 HDMI output
- 2 USB Ports (1x USB data port / 1x USB charging)
- Steering Wheel Remote Control Ready
- Vehicle Display Interface Ready (UART connection)
- Remote Control Ready
- 4 x Four Camera Input using (KCX-C250MC Multi-Camera Selector Interface (sold separately).
- Camera Distance Guides (adjustable)
- Live Contrast Adjustment
- Menu Language: 24 Languages
- Auto Dimmer
- Anti-theft security code
- Engine Start-Stop unaffected
- 3-Year Warranty when installed by Authorised Alpine Dealer

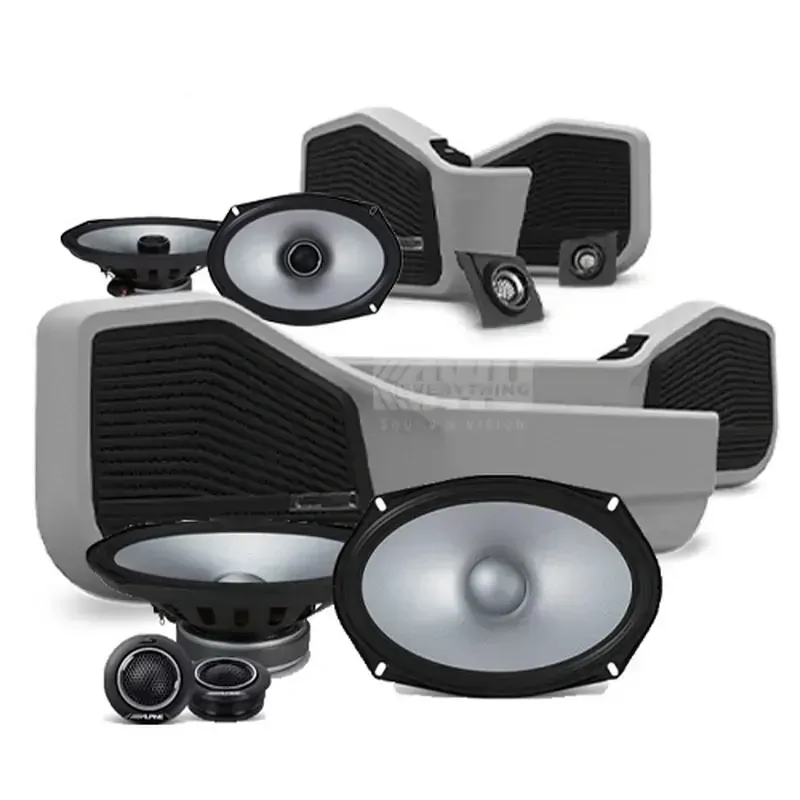

Alpine LC70-S269P LandCruiser Door pods and Speaker System:
- Front Tweeter (Component)
  - 1″ Extended-Range Soft Dome
  - Magnet Material: Ferrite
  - Application Type: External/Swivel Tweeter Mounting Kit
  - Flush mount and Collapsable for OEM fit.
  - Grill: Perforated Net
  Front Woofer (Component)
  - 6×9″ (160cm x 240cm) Lightweight Glass Fiber Composite Speaker
  - HAMR (High Amplitude Multi-Roll) Surround
  - Large 35mm Voice Coil
  - Magnet Material: Strontium Ferrite
  Crossover Network
  - Woofer: Copper Air-Coiled Wound Inductor
  - Tweeter: High Grade Audio Poly Capacitor
  Rear Woofer (Coaxial)
  - 6×9″ (160cm x 240cm) Lightweight Glass Fiber Coaxial Speaker
  - HAMR (High Amplitude Multi-Roll) Surround
  - Large Voice Coil
  - Magnet Material: Strontium Ferrite
  - Grill sold separately: KTE-S69G
  Rear Tweeter (Coaxial)
  - 1″ Extended-Range Soft Dome Tweeter
  - Magnet Material: Ferrite
  - Tweeter Grill: Perforated Net
  Crossover Network
  - Woofer: Copper Air-Coiled Wound Inductor
  - Tweeter: High Grade Audio Poly Capacitor

Upgrade today for unmatched connectivity and audio excellence on every drive.

General

Power Requirement – 14.4V DC (11-16V allowable)
Operating Temperature – -20°C to +60°C
Power Output – 50W x 4
Maximum Current Consumption – 15A

Audio Output Level

Preout (Front, Rear): 4V/10k ohms (max.)
Preout (Subwoofer): 4V/10k ohms (max.)

Weight

2.3kg

Screen

Screen Size: 9 inch Laminated WXGA
LCD Type: Transparent Type TN LCD
Operation System: TFT Active Matrix
Illumination System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System: NTSC, PAL

FM Tuner

Tuning Range – 87.5 -105MHz
Mono Usable Sensitivity – 8.1 dBf (0.7μV/75 ohms)
50dB Quieting Sensitivity – 12dBf (1.1μV/75 ohms)
Alternate Channel Selectivity – 80dB
Signal-to-Noise Ratio – 65dB
Stereo Seperation – 35dB

AM Tuner

Tuning Range – 531-1701 kHz
Usable Sensitivity – 25.1μV/28 dBf

DAB Tuner

Tuning Range – 174 – 240 MHz
Usable Sensitivity – -100dBm
Signal-to-Noise Ratio – 90dB

USB (1)

USB Requirements: USB 2.0
Max. Power Consumption: 2,400 mA (CDP Support)
USB Class: Mass Storage Class, Play From Device
File System: FAT 16/32, exFAT
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC format ′′.m4a′′ file
FLAC Decoding
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 – 40k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.005%
DynamicRange(at 1kHz): 95 dB
Signal-to-Noise Ratio: 95 dB
Channel Separation (at 1kHz): 90 dB
