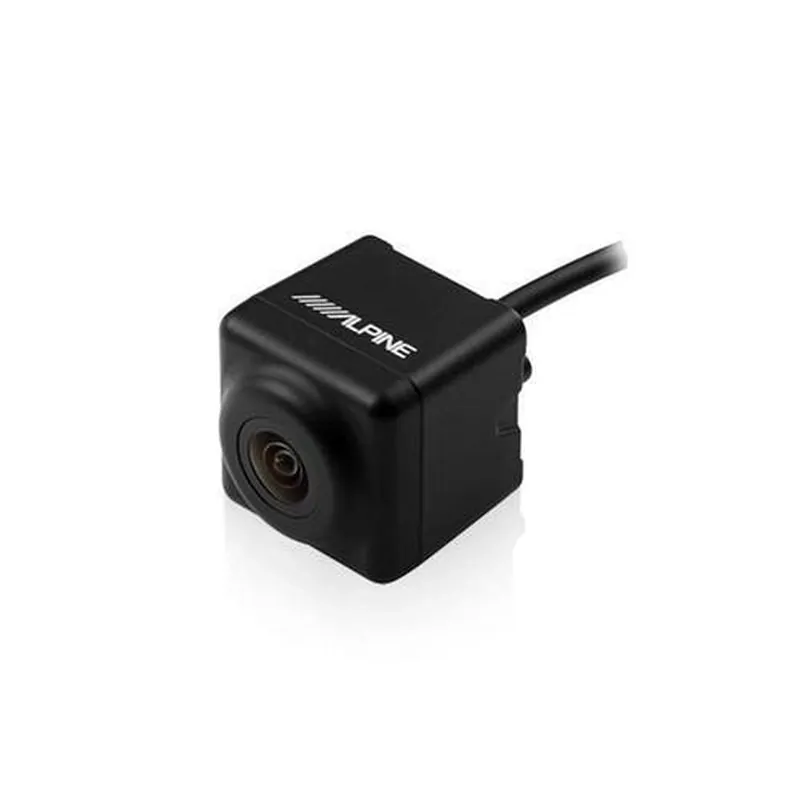

Alpine HCE-C205RD Direct Connect Multi-View Rear Camera System

SKU:HCE-C205RD

RRP $199.95
$170.00
SAVE $29.95 (15%)


Calculate Shipping

The HCE-C205RD rear drive assist camera makes parking and reversing manoeuvres simpler and safer than ever. With cutting-edge technology and full-screen touch operation the user experiences a significantly increased sense of spatial awareness and driving ability. Manoeuvres that were previously difficult or thought to be impossible without someone guiding the driver can now be achieved quickly through the guidance of your Alpine system

The HCE-C205RD is capable of four viewing angles rear view, corner view, ground view and panorama view (pictured above with the iVX-W200E) controlled easily via the head unit. Furthermore the HCE-C205RD provides an expansive viewing angle of 187.8° horizontal and 145.3° vertical delivering vital assistance while reversing and parking.

* The HCE-C205RD is only compatible with the iXE-W400E, iVX-W200E, i108AD and the i109AD.

  • Power Requirement: 6.0V DC (5.4 – 9.0V DC allowed)
  • Power Consumption: 0.9W (6.0V)
  • Output Image: Mirror image, CVBS (NTSC video signal)
  • Image Sensor: 1/4″ Type Color CMOS Image Sensor, Aspect Ratio 16:9
  • Output Drive Capacity: 1 Vp-p (75 ohms)
  • Automatic Image Adjusting Function: Automatic exposure adjustment, Automatic white balance adjustment
  • Resolution (horizontal, centre area): 350 TV lines
  • Operating Temperature: -40°C – +85°C
  • Illumination Range: 1.5Lx to 100kLx
  • Active Array Size: VGA (640 x 480)
  • Lens: Brightness: Brightness: F=2.4
  • Weight: 33g
  • High Visibility In Day and Night
  • Viewing angle: Horizontal 187.8˚, Vertical 145.3˚
  • Viewing modes: rear view, corner view, ground view and panorama view
  • Viewing mode change by Touch Screen
  • Automatic Imaging Function: Exposure and white balance adjustment
  • Works with i109AD, i108AD, iXE-W400E and iVX-W200E
  • Compact Installation Size
  • Chassis Size (W x H x D) mm: 23.6mm x 23.6mm x 25.8mm
