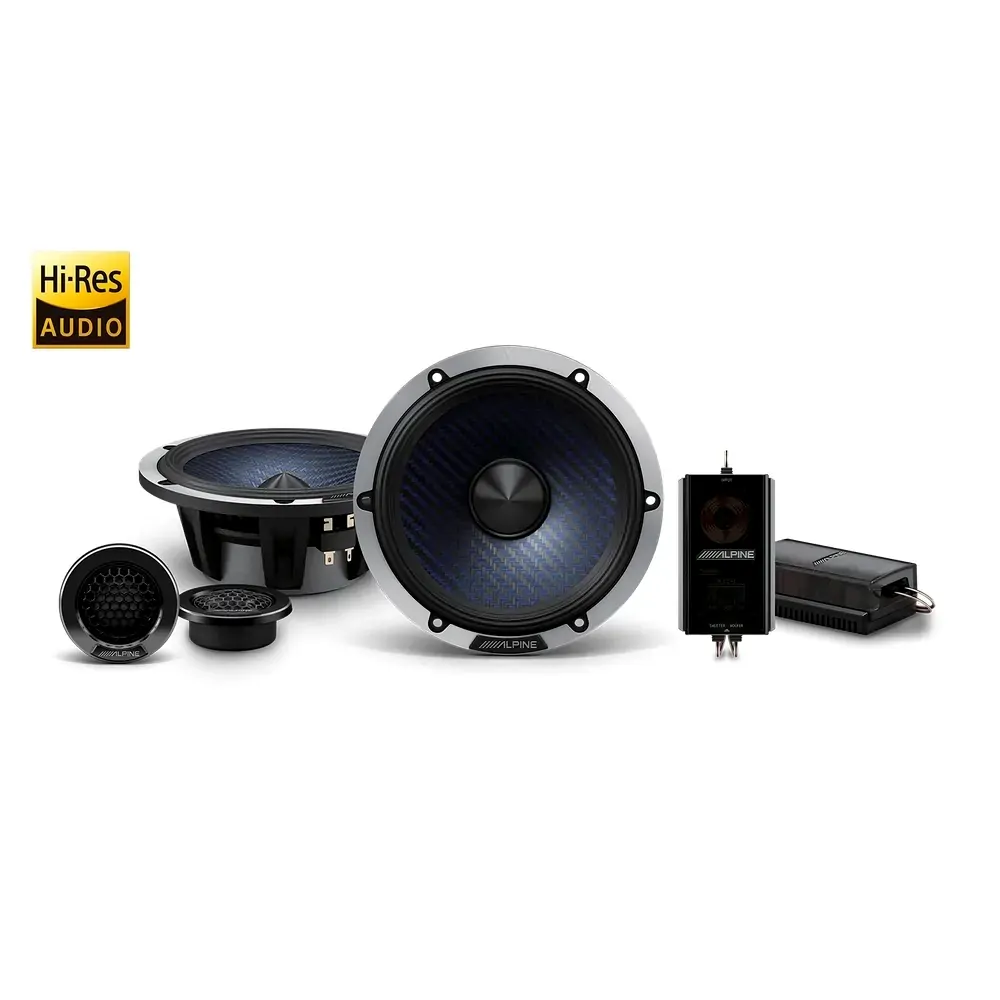

Alpine DP2-65C Digital Precision DP2-Series 6.5″ Component 2-Way Speaker System

Now featuring Hi-Res Audio specifications, Alpine’s second generation Digital Precision (DP) Series are state-of-art loudspeakers, delivering an acoustic performance to match their stunning high-performance inspired aesthetic design.

Re-engineered with a new motor structure, DP2-Series is taking sound quality performance to the next level. These speakers are composed with a bespoke design machine finished aluminium cast frame complimented by an elegant backplate housing and an industry first blue accented woven carbon fibre hybrid woofer diaphragm. The tweeter utilises a new Tetoron soft dome for a smoother and highly detailed top-end frequency response extending beyond 40kHz.

Engineered to reproduce the dynamics of digital sound sources and recordings, the DP2-Series have an extraordinary detailed high and mid-range response coupled with truely powerful and controlled bass to express every nuance and sound richness—ensuring your music can be enjoyed to the fullest.

The DP2-Series is the encapsulation of precision design and atmospheric sound performance.

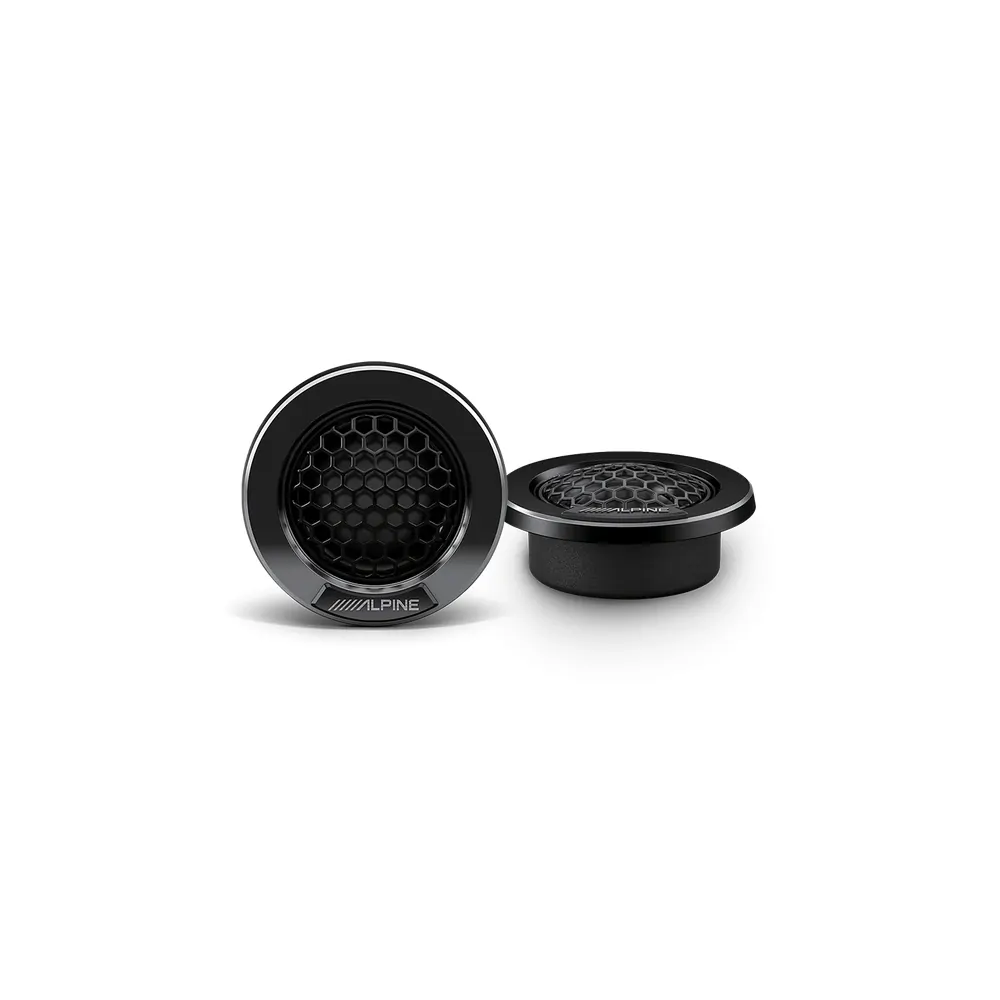

Tweeter

• Tweeter Type: 1″ Tetoron Soft Dome Tweeter
• Magnet Material: Neodymium Magnet
• Application Type: Surface Mount

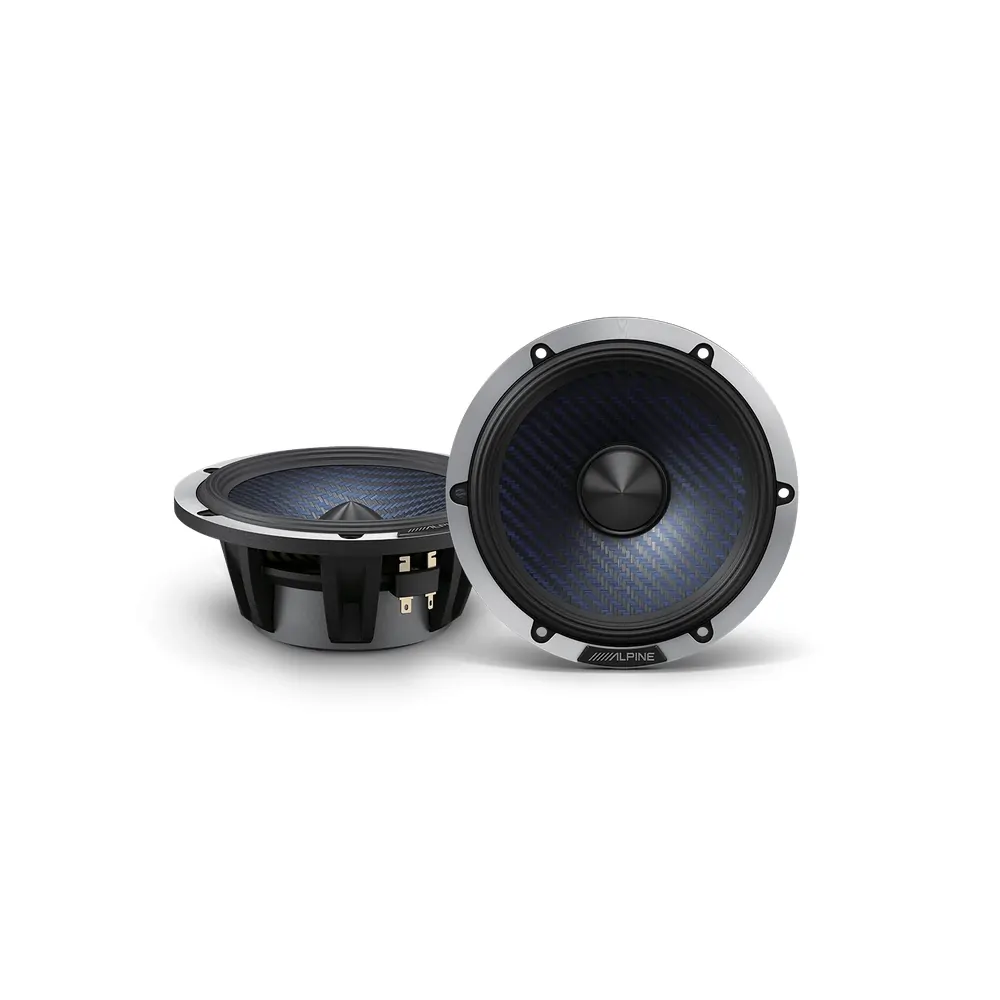

Woofer

• Cone Material: Woven Carbon Fibre Hybrid
• Magnet: Ultra High Density Radial Ring Magnet
• Frame: Cast Aluminium
• Surround: HAMR Multi-Roll
• Mounting: 6 Point
• Terminals: Gold Plated

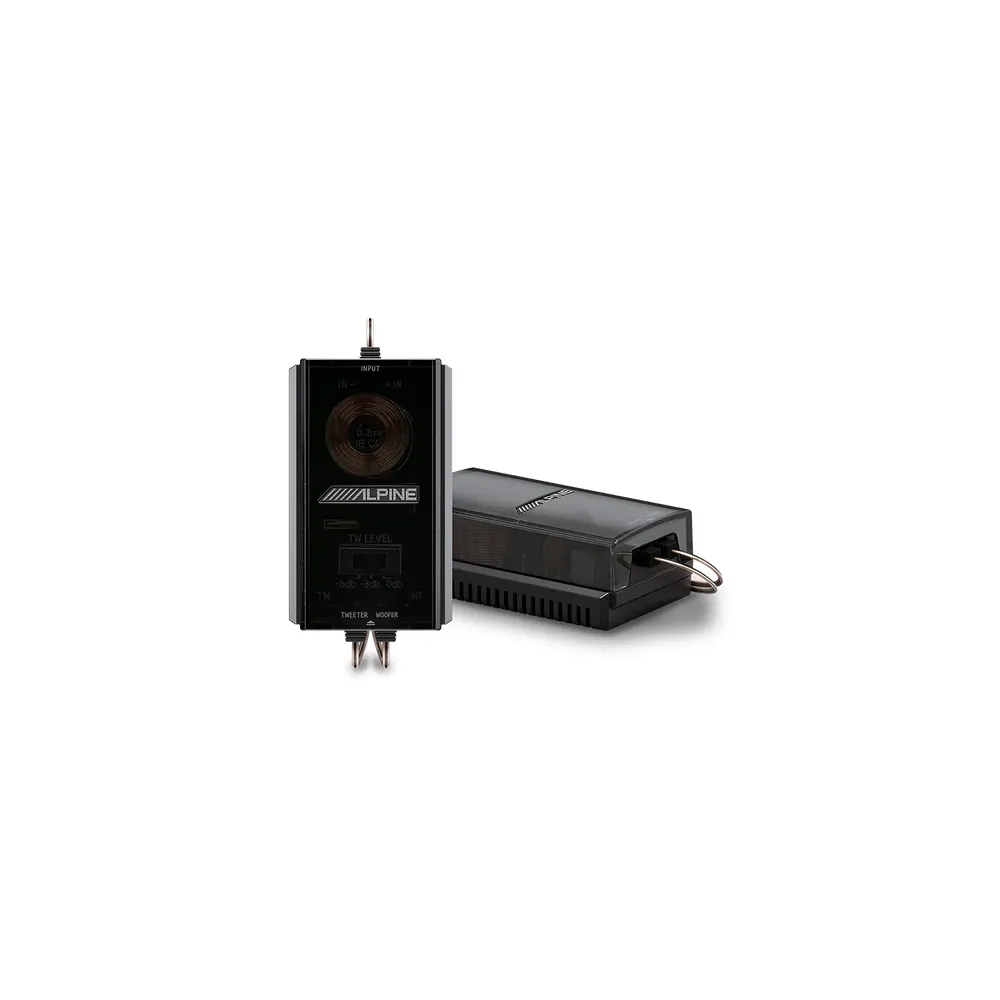

Passive Crossover Network

• Compact Design for Easy Installation
• Design: In-line 2 Way Network Design
• Tweeter Attenuation: 0dB, -3dB, -6dB
• High Grade Network Components
• Alpine Custom Specification Poly-Capacitors
• Air-Core Inductors

General

• Peak Power Handling: 240W
• RMS Power Handling: 50W
• Nominal Impedance: 4ohms
• Frequency Response: 60Hz – 40KHz
• In-Line 2-Way High Quality Crossover
• 1″ Tetoron Soft Dome Tweeter
• Woven Carbon Fibre Hybrid Woofer Diaphragm
• Woofer Cast Aluminium Frame
• Woofer Grille Optional (Pair): DP-65G

Dimensions

• Woofer Diameter : 165 mm
• Woofer Mounting Depth : 59 mm
• Woofer Cut-Out: 130.2mm
• Network Width : 51.9mm
• Network Height : 30.9mm
• Tweeter Diameter (Without Frame): 39mm
• Tweeter Depth (Without Frame): 20.1mm
• Tweeter Mounting Cup Diameter: 59mm
• Tweeter Mounting Cup Diameter Cut-Out: 43.6mm
• Tweeter Mounting Cup Depth: 15.8mm

Weight

• Woofer: 1240g
• Tweeter: 72g
• Crossover Network: 120g
