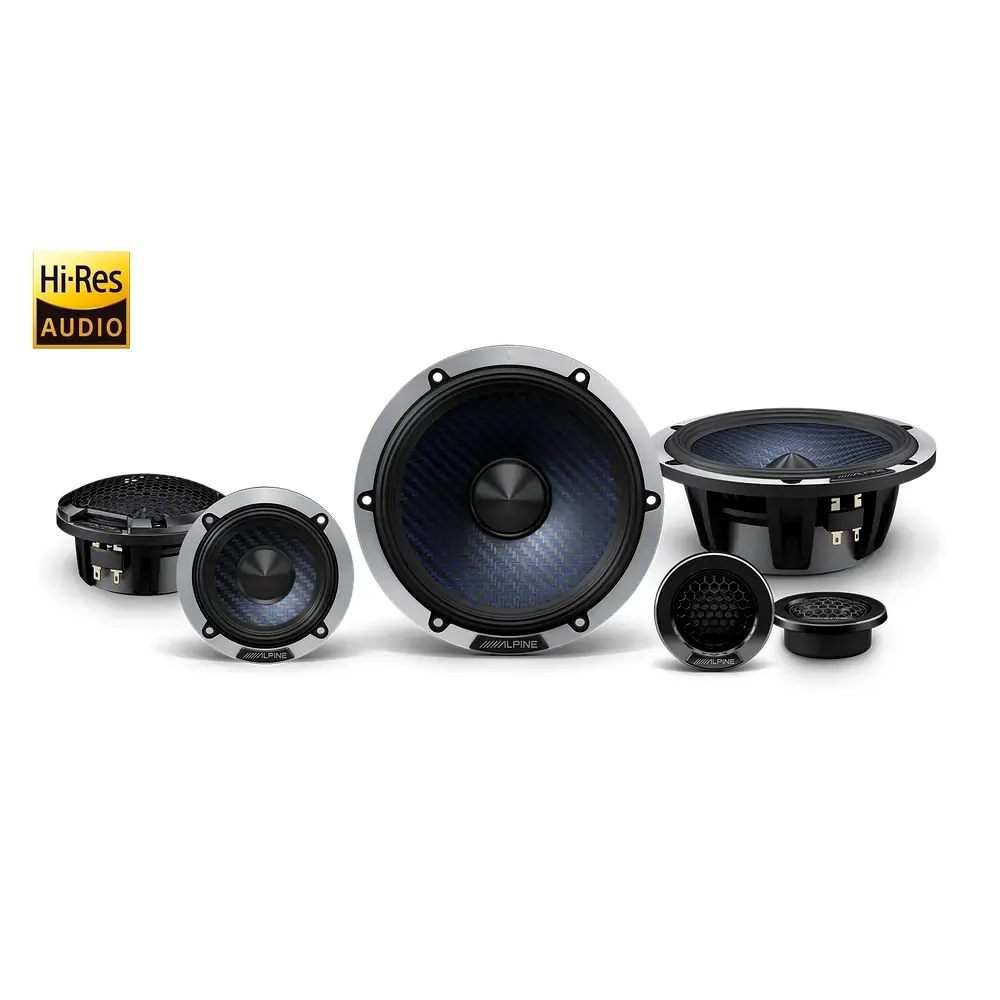

Alpine DP2-653 Digital Precision DP-Series 6.5″ and 3.5″ Component 3-Way Speaker System

Alpine’s Digital Precision Series state-of-the-art loudspeakers are capable of reproducing acoustics with phenomenal clarity.

Precise in their construction, these speakers are composed with a bespoke design machine finished aluminium cast frame complimented by an elegant backplate housing and an industry first blue accented woven carbon fibre hybrid woofer diaphragm. The tweeter utilises an exotic magnesium alloy dome for extraordinary detail of high frequencies, all while the 3.5″ midrange magnificently articulates vocals and instruments with fine detail and stunning musicality. Moreover, the 3-way configuration allows for custom high-end audio system builds to achieve incredible staging and imaging, or provides seamless mutli-speaker upgrading of late model vehicles with 3-Way factory front speaker systems.

For optimised performance the 3-Way speaker system is ready for Alpine’s multi-channel processor amplifiers for a fully active system enabling precise crossover setting and vehicle specific sound tuning with time correction and parametric EQ adjustment. The 3-Way system is also ready for a conventional passive network system configuration with the DP-653NW 3-Way high-quality crossover network sold separately.

Engineered to reproduce the dynamics of digital sound sources and recordings, the DP-Series have an extraordinary detailed high and mid-range response coupled with truely powerful and controlled bass to express every nuance and sound richness—ensuring your music can be enjoyed to the fullest.

The DP-Series are the encapsulation of precision design and atmospheric sound performance.

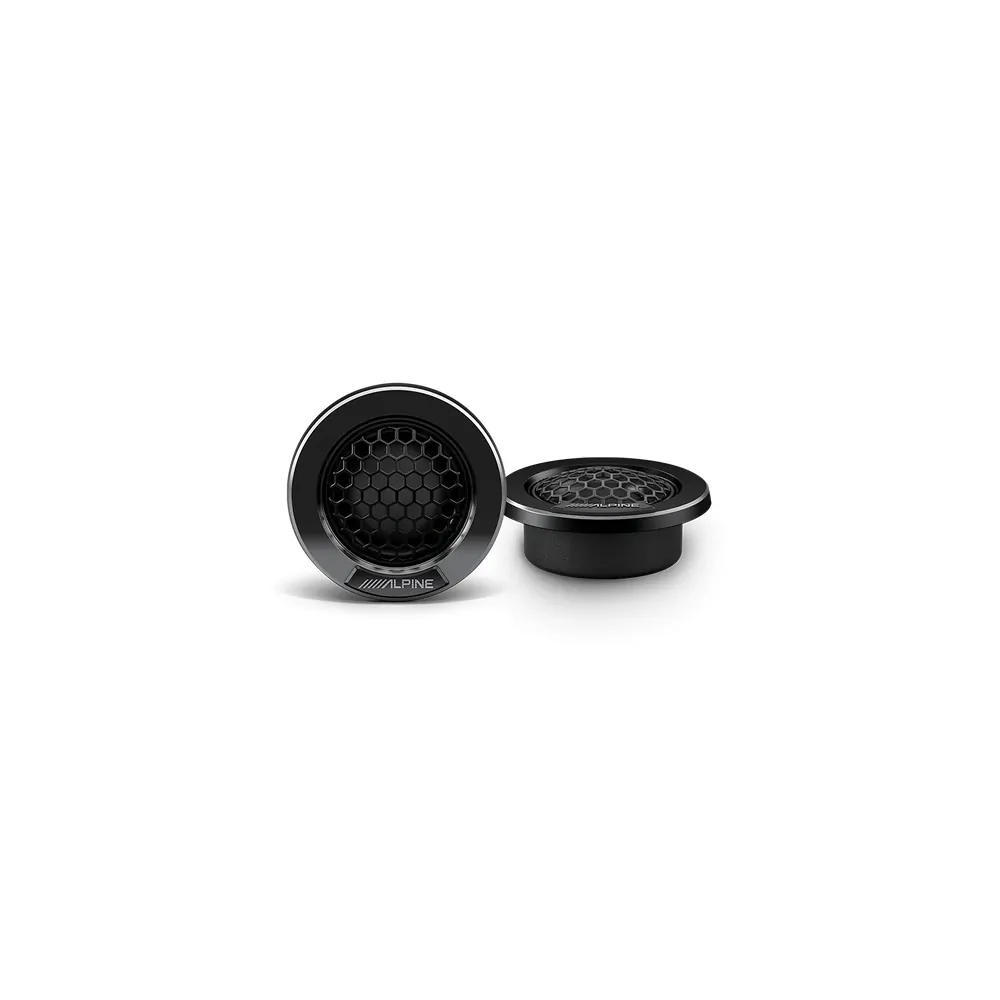

Tweeter

• Tweeter Type: 1″ Tetoron Soft Dome Tweeter
• Magnet Material: Neodymium Magnet
• Application Type: Surface Mount

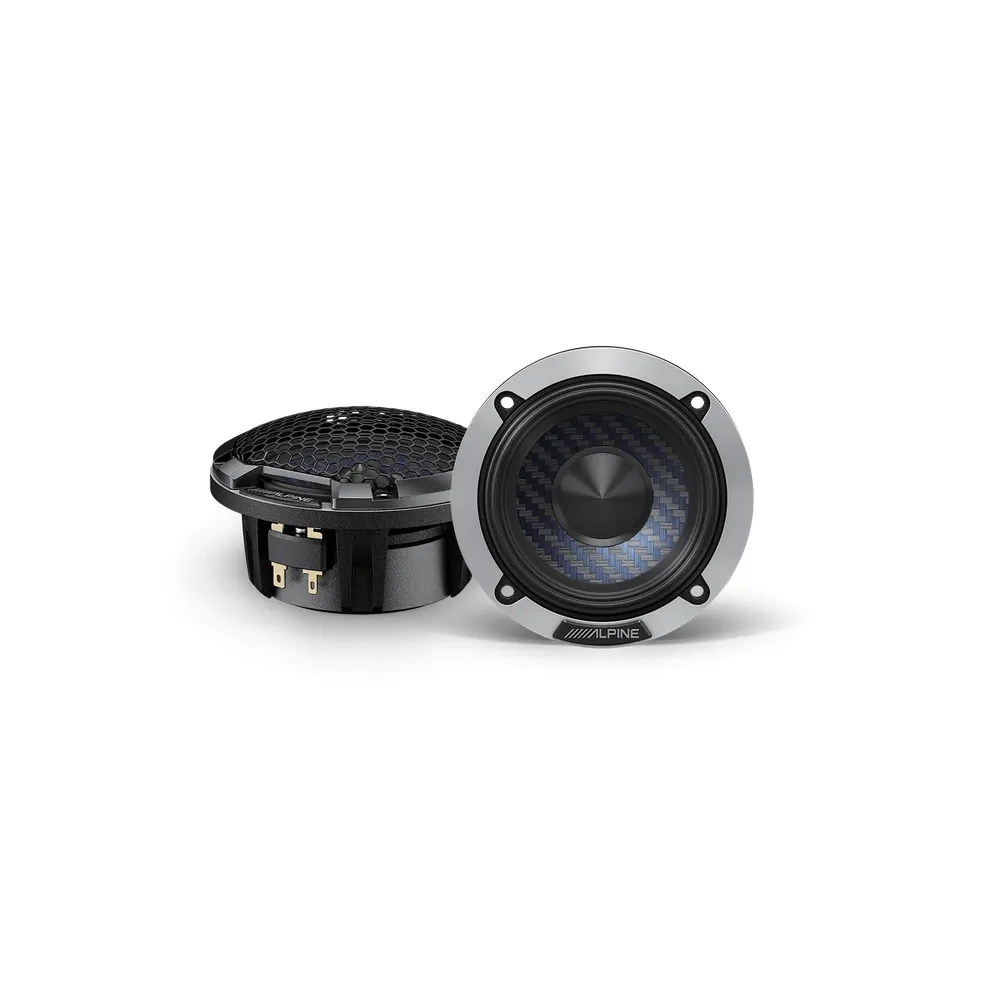

Midrange

• Midrange Size: 3.5″
• Cone Material: Woven Carbon Fibre Hybrid
• Magnet: Ultra High Density Radial Ring Magnet
• Frame: Cast Aluminium
• Surround: HAMR Multi-Roll
• Mounting: 4 Point
• Terminals: Gold Plated
• Grille: Honeycomb (Included)

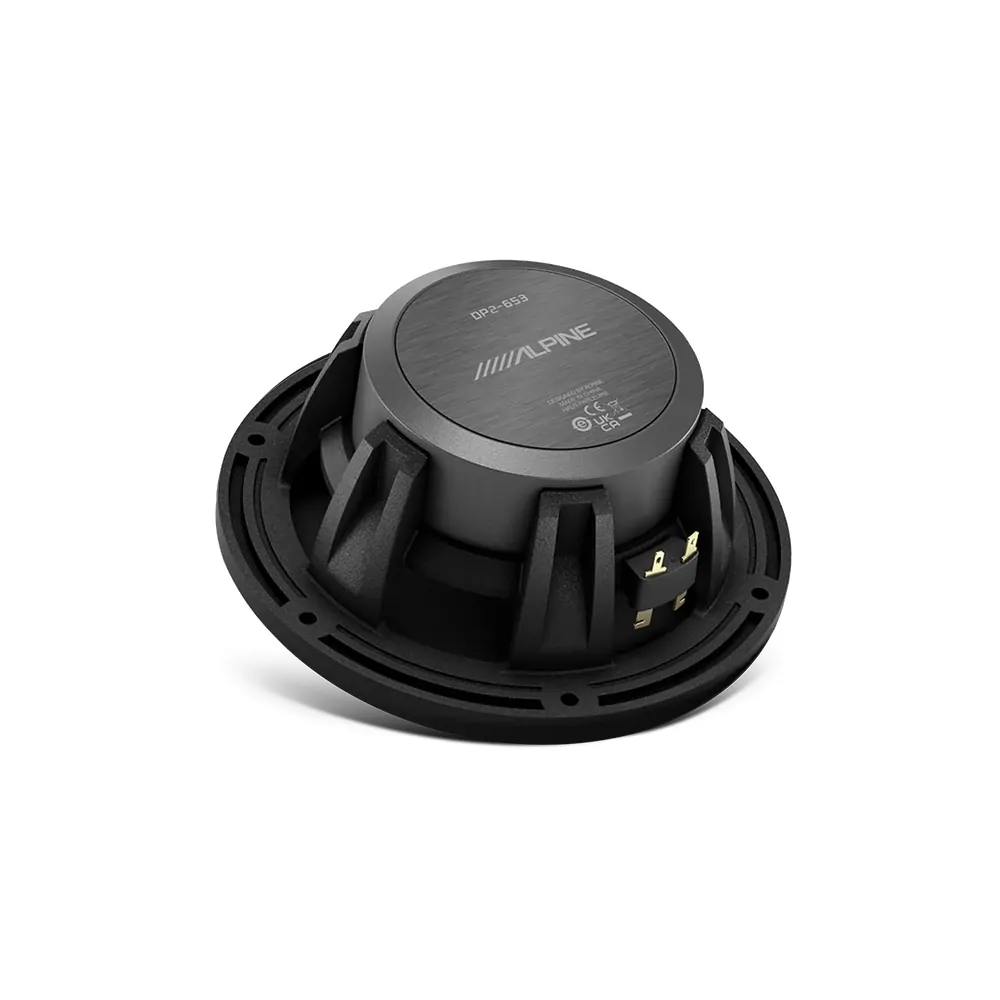

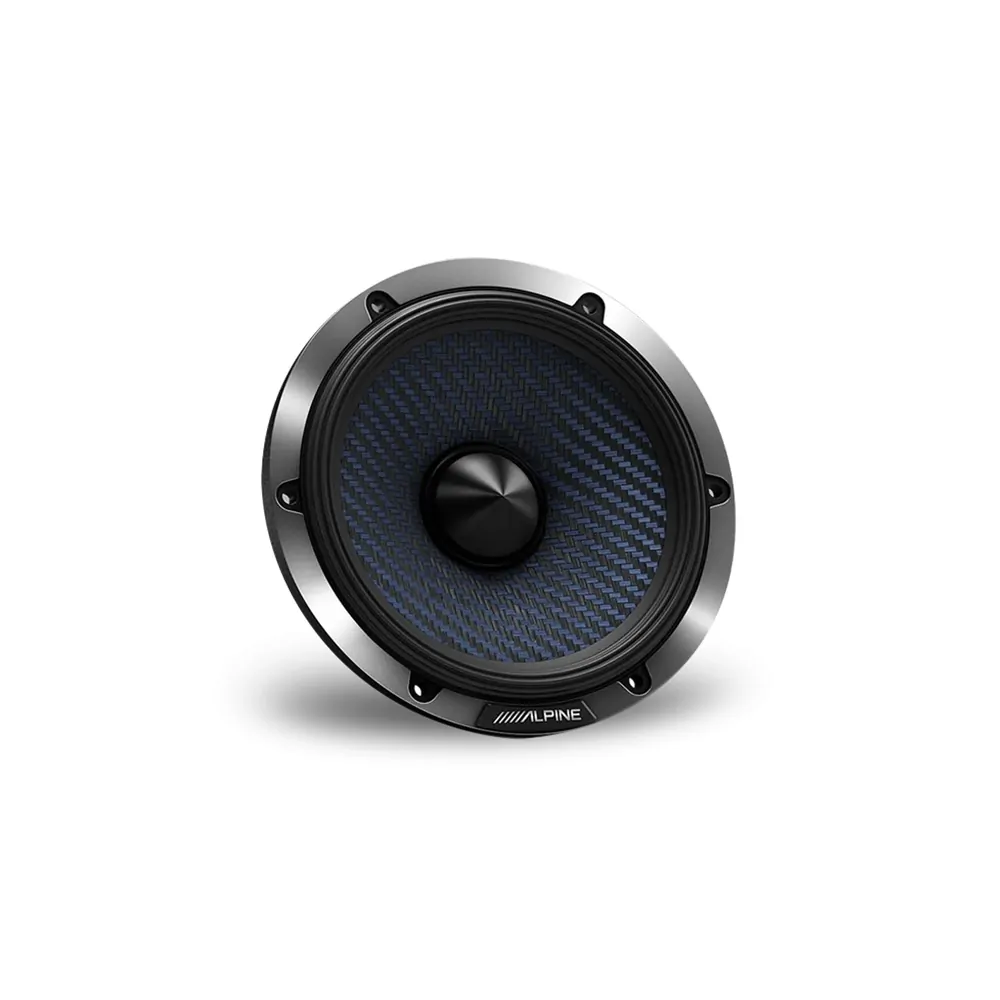

Woofer

• Woofer Size: 6.5″
• Cone Material: Woven Carbon Fibre Hybrid
• Magnet: Ultra High Density Radial Ring Magnet
• Frame: Cast Aluminium
• Surround: HAMR Multi-Roll
• Mounting: 6 Point
• Terminals: Gold Plated
• Grille: Honeycomb (Optional DP-65G)

3-Way Passive Crossover Network (Optional DP2-653DP)

• 3-Way Passive Design: 1-Input with 3-Way Output (Tweeter/Midrange/Woofer)
• Tweeter Attenuation: 0dB, -3dB, -6dB
• High Grade Network Components
• Alpine Custom Specification Poly-Capacitors
• Air-Core Inductors (Woofer Output)

General

• Peak Power Handling: 240W
• RMS Power Handling: 50W
• Nominal Impedance: 4ohms
• Frequency Response: 60Hz – 40KHz
• In-Line 2-Way High Quality Crossover
• 1″ Tetoron Soft Dome Tweeter
• Woven Carbon Fibre Hybrid Woofer Diaphragm
• Woofer Cast Aluminium Frame
• Woofer Grille Optional (Pair): DP-65G
• 3-Way Passive Crossover Network Optional (Pair): DP2-653NW

Dimensions

• Woofer Diameter : 165mm
• Woofer Cut-Out: 130.2mm
• Woofer Mounting Depth : 58.9mm
• Midrange Diameter: 94.7mm
• Midrange Cut-Out: 75.7mm
• Midrange Mounting Depth: 34.2mm
• Tweeter Diameter (Without Frame): 39mm
• Tweeter Depth (Without Frame): 20.1mm
• Tweeter Mounting Cup Diameter: 59mm
• Tweeter Mounting Cup Diameter Cut-Out: 43.6mm
• Tweeter Mounting Cup Depth: 15.8mm

Weight

• Woofer: 1240g
• Midrange: 405g
• Tweeter: 72g
