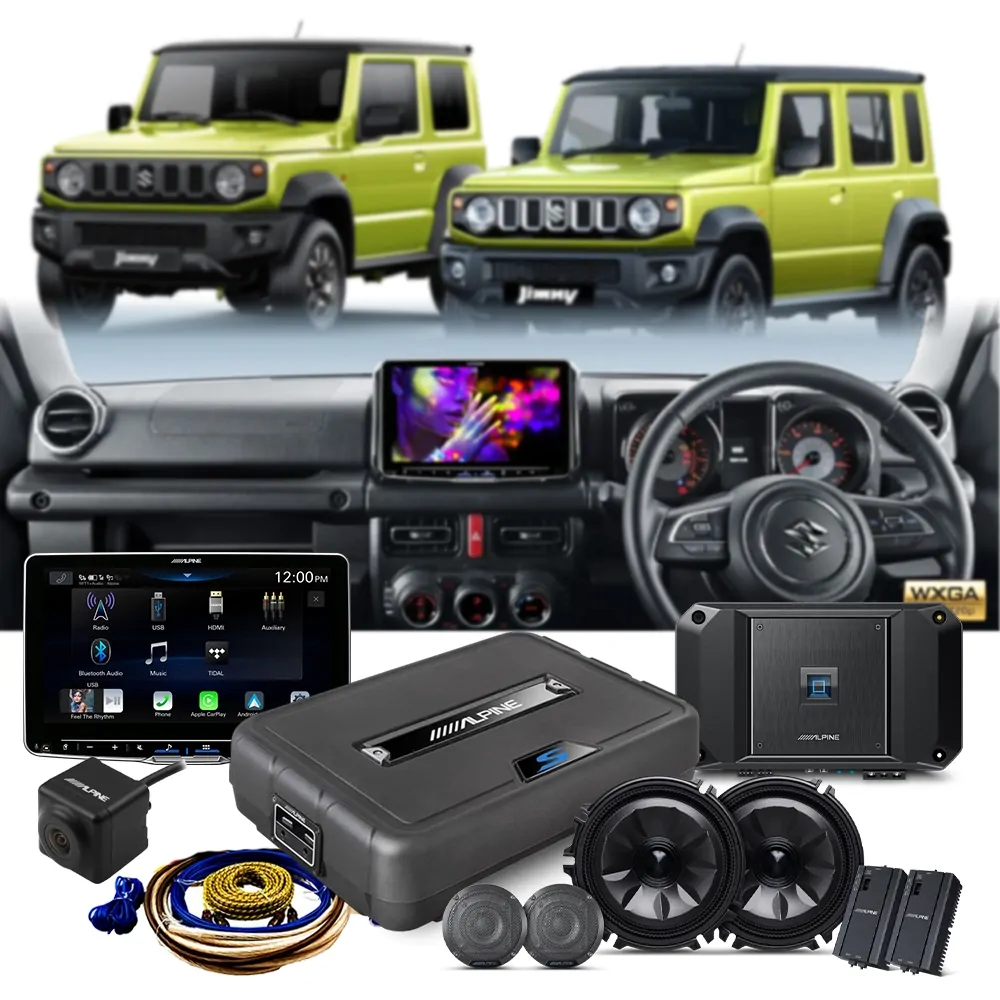

Alpine Complete Audio Upgrade Kit Fits Suzuki Jimny 2018-OnWards Head Unit + Speakers + Subwoofer + Amplifier + Reverse Camera + Wiring

Transform your Suzuki Jimny’s audio experience with this premium Alpine Complete Audio Upgrade Package. Designed specifically for the Jimny (2018-Onwards), this kit delivers a seamless, factory-integrated installation with powerful performance upgrades across every audio component.

Includes: iLX-F509A Halo9 Head Unit + HCE-C2100RD Multi View Rear Camera System + Metio Premium Speaker System + S-Series 10” Subwoofer Enclosure + R-Series Amplifier + Stinger 4GA Wiring Kit

Featuring Alpine’s flagship iLX-F509A Halo9 multimedia receiver with wireless Apple CarPlay / Android Auto, the Metio Premium Jimny Speaker System, a powerful S-Series shallow-mount subwoofer enclosure, and an R-Series high-resolution amplifier, this system takes clarity, bass response, and in-car connectivity to an entirely new level.

Perfect for touring, daily driving, and audiophile-grade music playback — all engineered to integrate cleanly into the Jimny with no compromise.

IN THE BOX (Complete Package)

1. Alpine iLX-F509A Halo9 System for Jimny

• 9-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
• Display angle adjustable after installation
• 3 PreOuts (4 V, Front / Rear / Subwoofer)
• 1 A/V AUX Input (3.5 mm micro jack)
• 1 HDMI input / 1 HDMI output
• 2 USB Ports (1x USB data port / 1x USB charging)
• Steering Wheel Remote Control Ready
• iDatalink Maestro compatible*
• Remote Control Ready
• 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
• Camera Distance Guides (adjustable)
• Live Contrast Adjustment

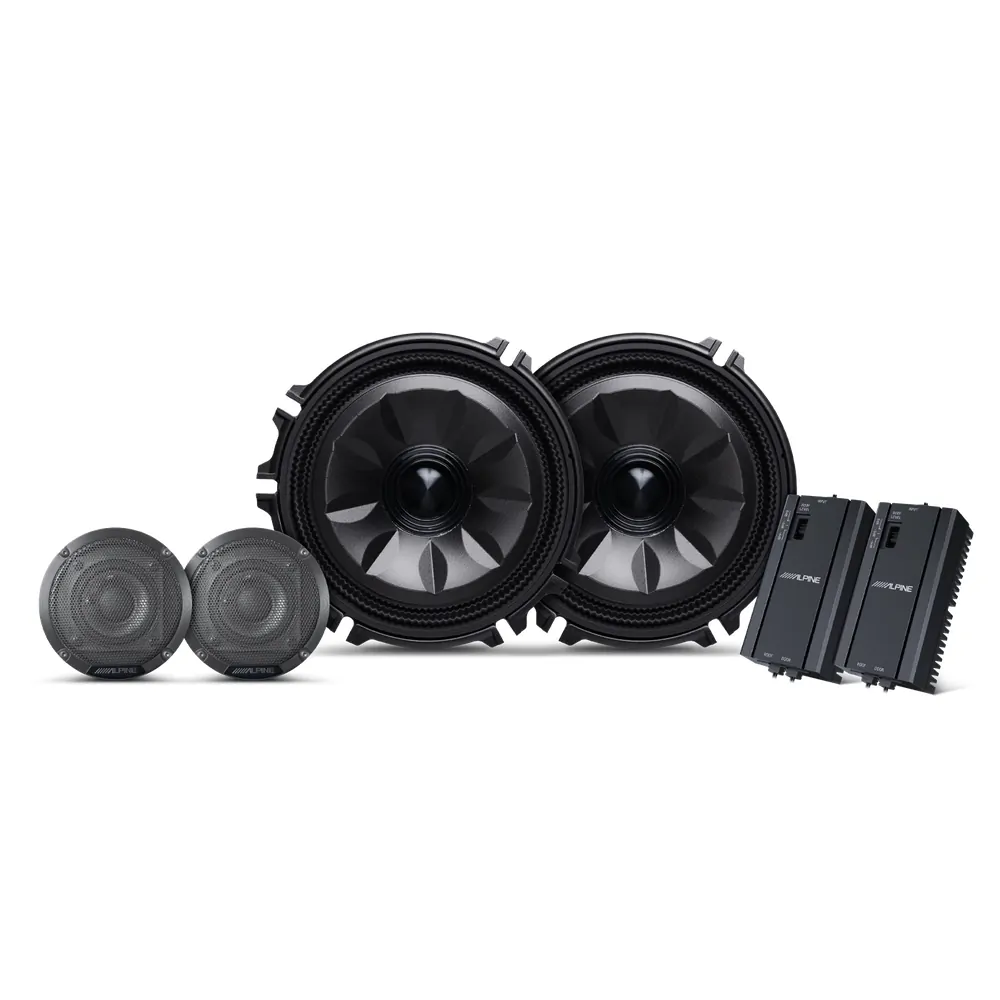

2. Alpine Metio Premium Jimny Speaker System (MS-165-JI-64)

• Peak Power Handling: 300W
• RMS Power Handling: 100W
• Nominal Impedance: 4ohms
• Frequency Response: 65Hz-40kHz
• In-Line High Quality Crossover
• 59mm Mounting Depth
• Swivel Tweeters
• Neodymium Magnet
• Multi-layer Hybrid Cone
• Dual Gap Voice Coil
• All-New Design Circuit for Precision Response
  Dimensions (Front)
• Woofer Diameter (mm): 165mm
• Woofer Diameter (in): 6×9″
• Woofer Mounting Diameter (mm): 160mm H 240 W
  Dimensions (Rear)
• Woofer Diameter (mm): 165mm
• Woofer Diameter (in): 6-1/2″
• Woofer Mounting Diameter (mm): 176mm
• Woofer Mounting Diameter (in): 6-15/16″
• Woofer Mounting Depth (mm): 59mm
• Woofer Mounting Depth (in): 2-3/8″

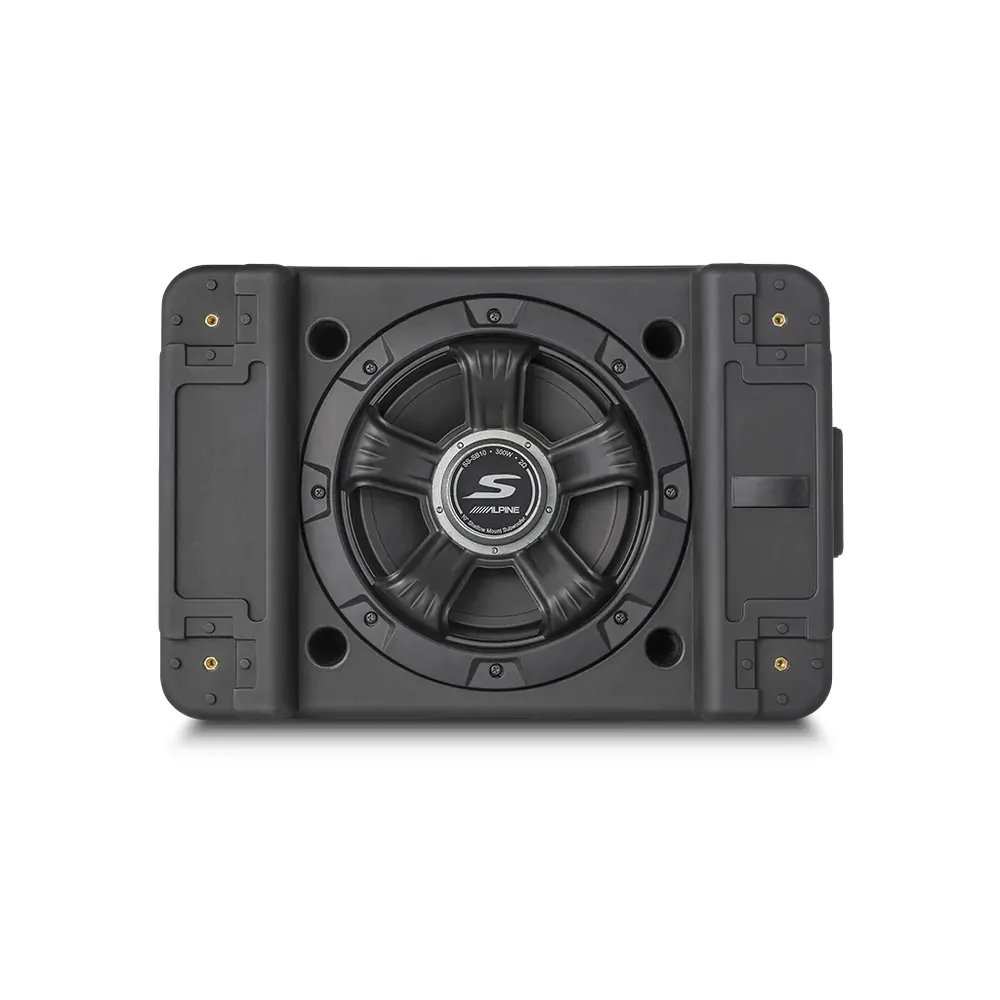

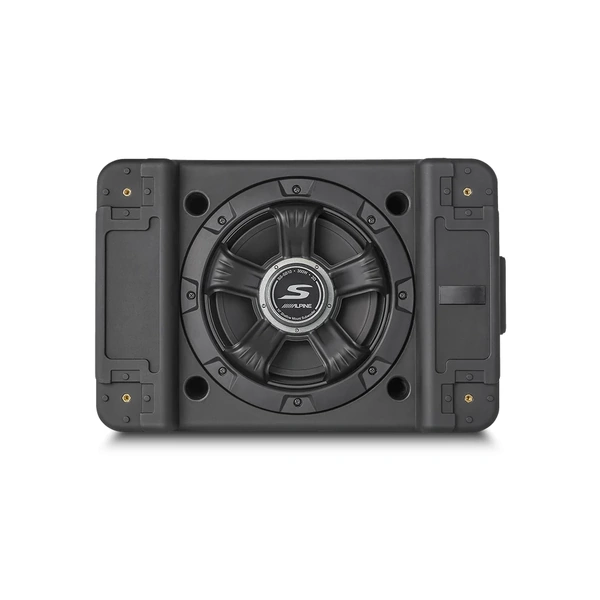

3. Alpine S-Series 10” Subwoofer Enclosure (SS-SB10)

• RMS Power Handling: 300W
• X-Max: 11mm 1-Way Linear
• Nominal Impedance: 2Ω
• Frequency Response: 35Hz-200Hz
• Voice Coil: 2” (50mm) Single 2 Ohm Voice Coil for a 2 Ohm load (compatible with S2-A55V, KTA-200M, or KTA-30MW Amplifiers)
• Mounting Dimensions: 470mm (W) x 114mm (H) x  318mm (D)

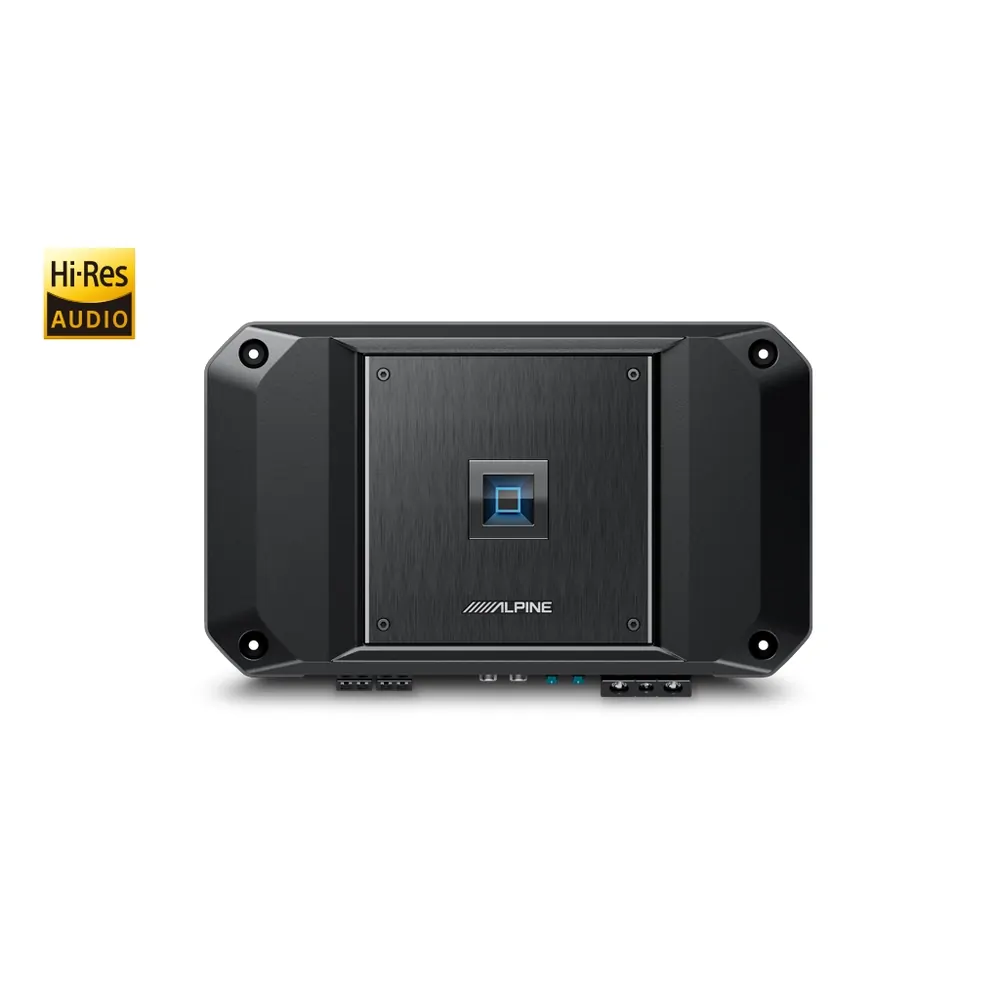

4. Alpine R-Series 4-Channel Amplifier (R2-A60F)

• Output Channels: 4/3/2 Channels
  Power Ratings
• Power (@14.4V 1% THD)
  • Per Channel into 4 Ohms: 100W X 4
  • Per Channel into 2 Ohms: 150W X 4
  • Bridged 4 Ohms: 300W X 2 [4Ω@14.4V]
• Max Power Output: 1200W

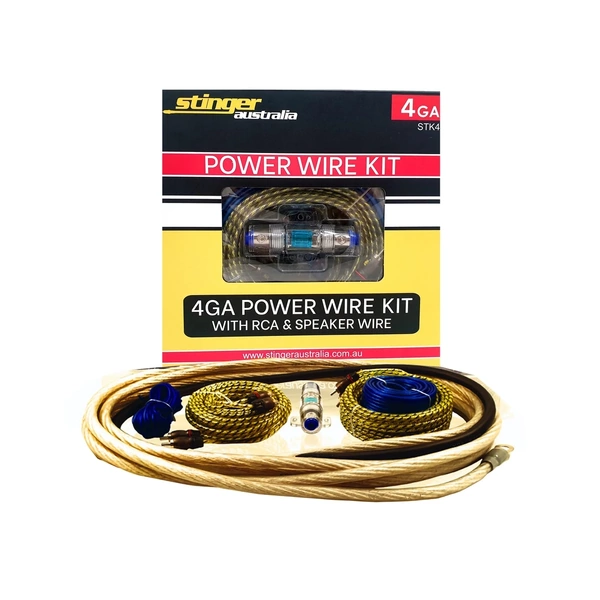

5. Stinger STK4 – 4GA Amplifier Wiring Kit

• 6 Metres (20ft) Clear CCA Power Wire
• 0.9 Metre (3ft) Black CCA Ground Wire
• 5 Metres (17ft) Twisted Pair RCA Interconnects (2 x Pair)
• 5 Metres (17ft) Blue Remote Turn-On Wire
• 6 Metres (20ft) Blue Speaker Wire
• High Current Midi ANL Fuse Holder with 100A Fuse
• Basic installation hardware (crimp terminals, butt connector, grommet, wire ties)

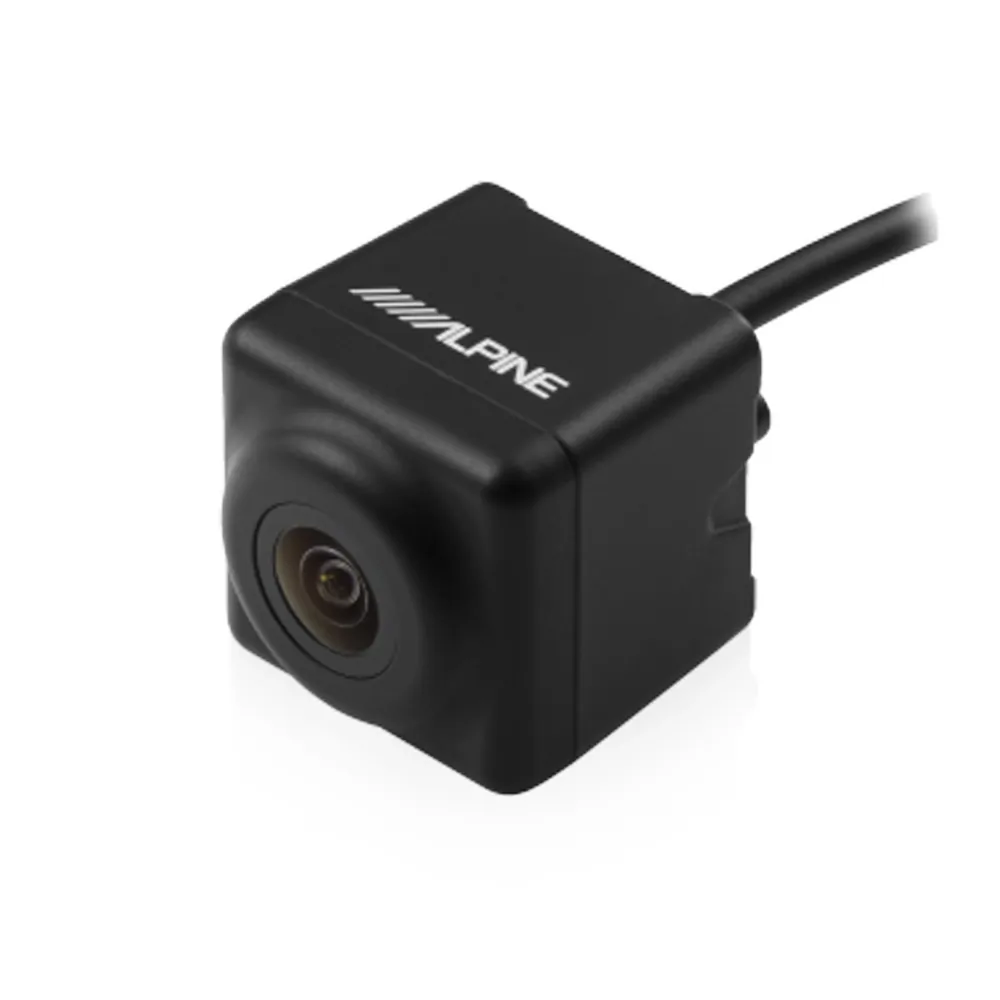

6. Alpine HCE-C2100RD Multi View Rear Camera System

• High Dynamic Range (HDR) Rearview Image
• Direct Camera Connection
• Vehicle Reverse Signal Synchronization
• Multi View Angle Selection: Rear View [Back], Panorama View [Panorama], Ground View [Top], Corner View [Corner]
• For use with Alpine monitors with touch-screen operation

*For 5-door models, a third-party SWC interface (Steering Wheel Control) is required (contact us to purchase separately).

*Vehicle images are for illustration purposes only.
