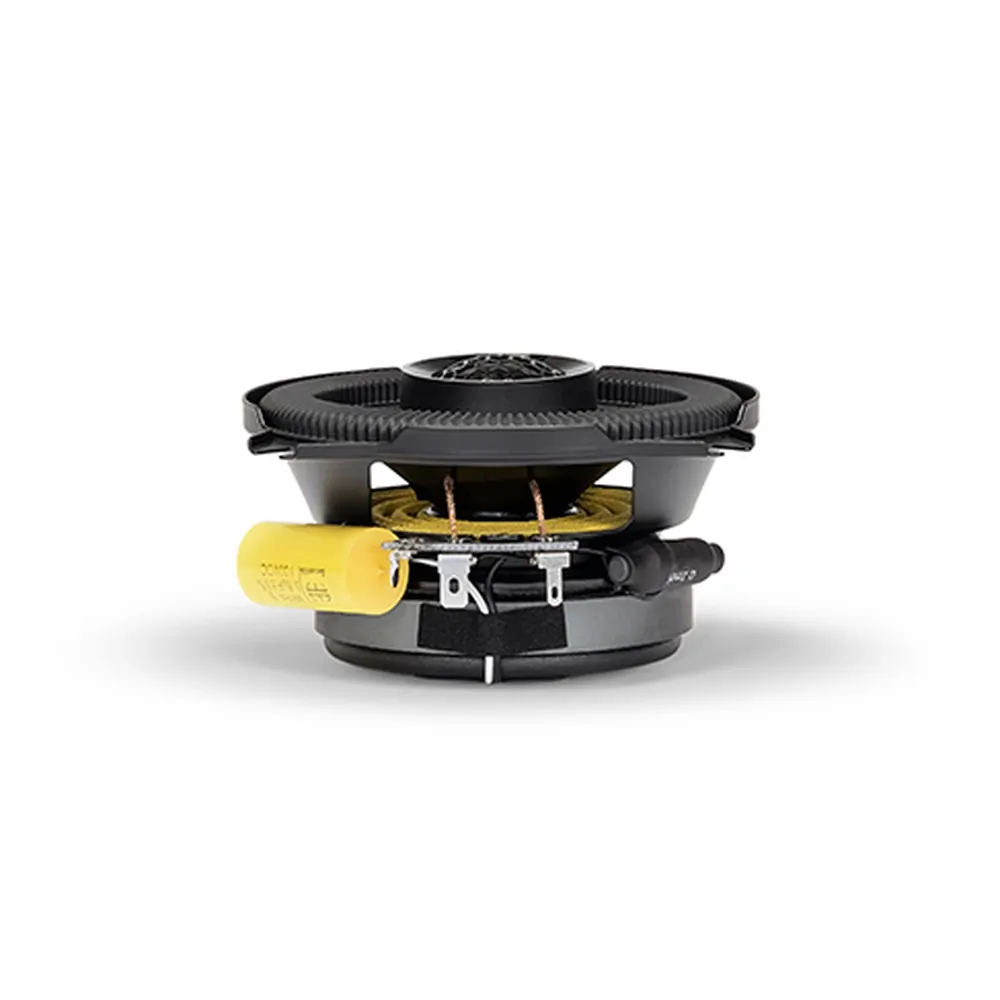

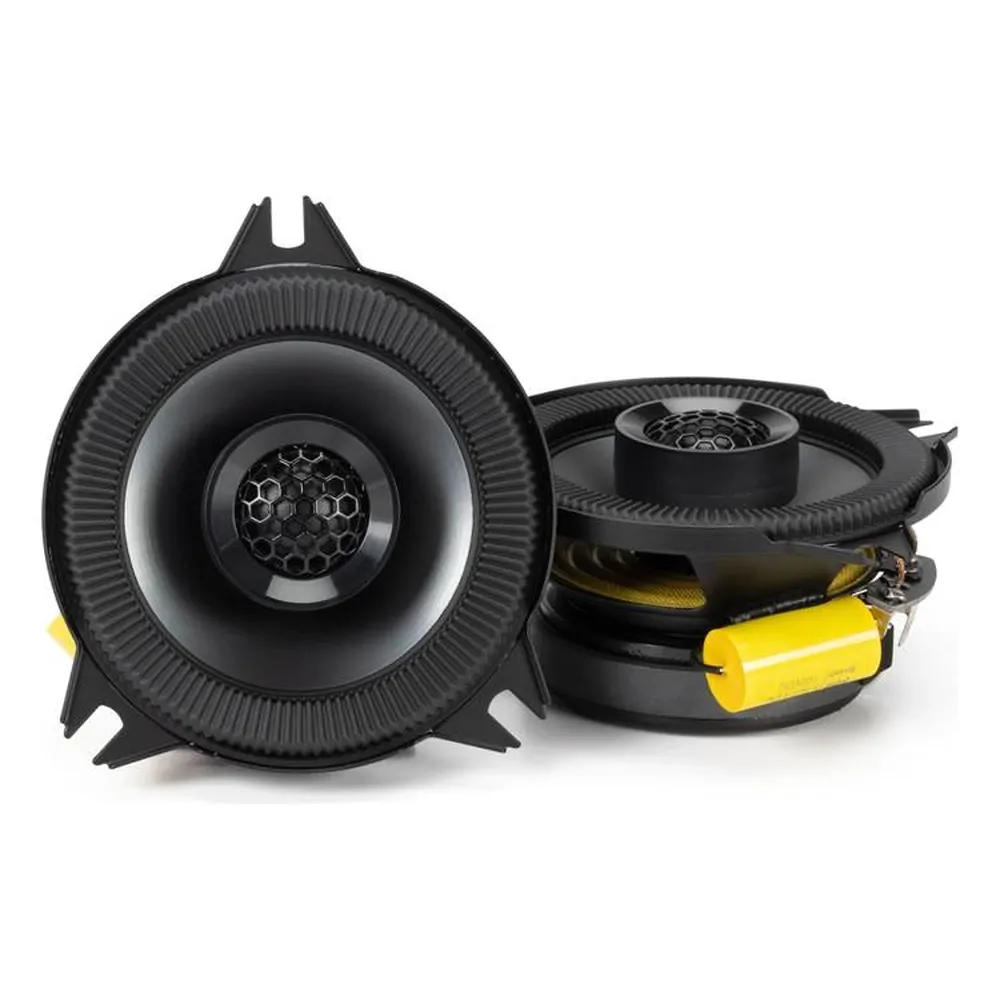

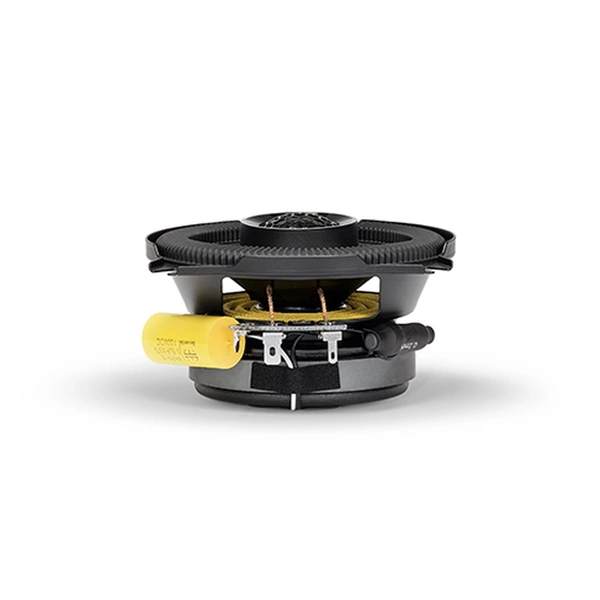

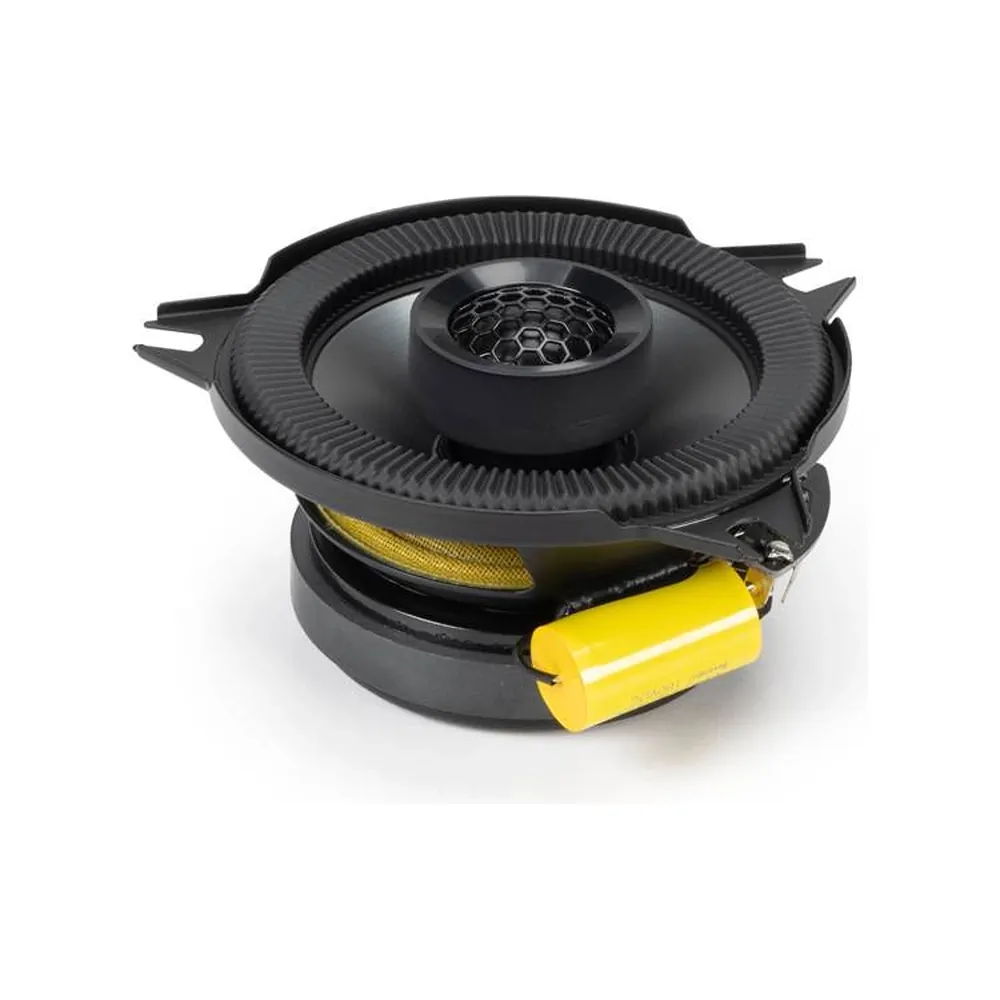

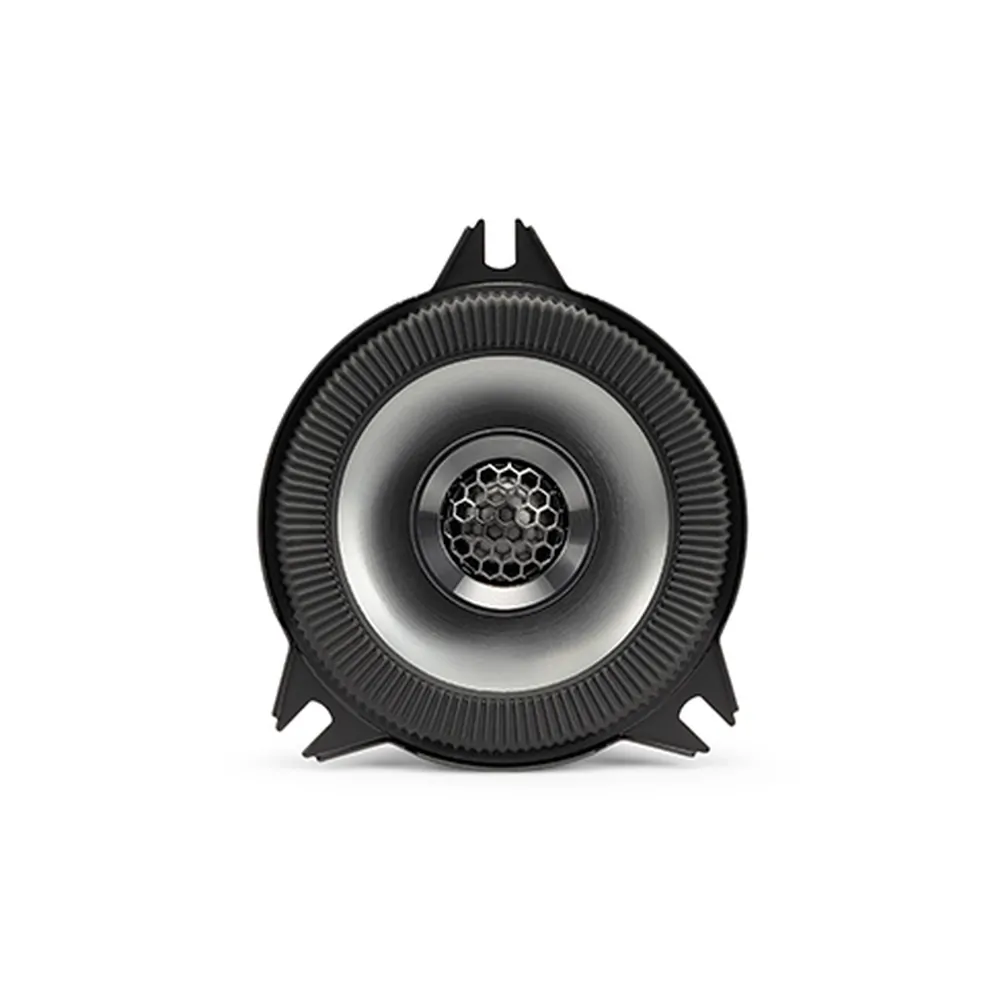

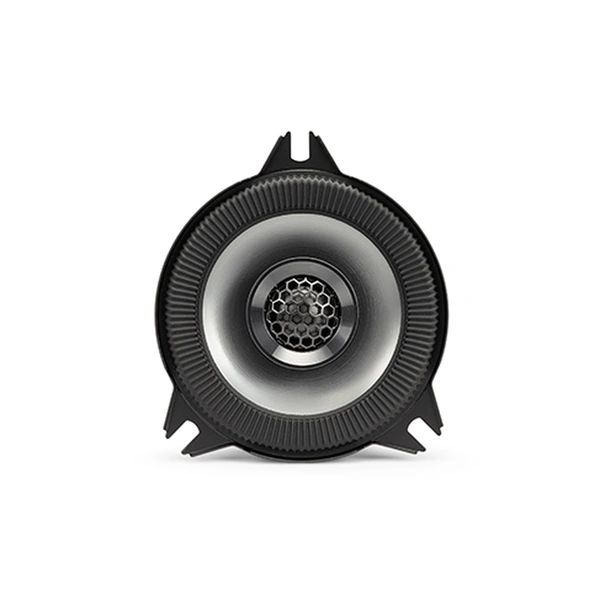

Alpine BRV-S40 BassRev 4" 2-Way Coaxial Speakers

Alpine’s HEDGE™ surround on BassRev speakers acts like performance suspension for your woofer. On the BRV-S40, this unique surround lets the 4" cone move farther with control, so more power becomes real, cabin-filling impact—not wasted motion. That extra, linear movement translates to stronger low-end presence and fuller mids, giving BRV-S40 the impact you expect from a larger 6.5" driver while preserving smooth mids and clear vocals. The result is big-speaker feel from a compact 4" coaxial.

Max Impact with OPTIM™

The BRV-S40 is impressive on its own, but the real magic happens when you pair it with Alpine’s OPTIM8® DSP/Amplifier using OPTIM™ Sync, our BassRev-specific tuning. OPTIM™ Sync intelligently applies dynamic bass boost and pre-EQ tailored to these drivers, safely extending low-end performance and smoothing tone to unlock their full potential. The result is bigger-than-size sound—a 4" set that plays with near-6.5" presence a speaker alone just can’t match.

Features

• 4" BassRev™ Coaxial Speaker Set (4" woofer w/coaxial 1" tweeter)
• Designed to pair with Alpine OPTIM8® using OPTIM™ Sync for maximum output
• Upgraded bass performance when tuned with OPTIM8® (Alpine Proprietary OPTIM™Sync Algorithm)
• Engineered for increased mid and low-end performance
• HEDGE™ Surround (High Excursion Design Gathered Edge) increases low-end output and extension
• Unique lapel cone shape enables higher excursion vs. traditional cones
• Polypropylene + mica cone for increased rigidity and cleaner response
• Ferrite magnet motor for stable performance and reliable power handling
• Gun-metal chemical coating for a premium, durable finish
• OEM-friendly fitment with shallow profile for tight doors and dash locations

Tech Specs

Woofer Size: 4"

Tweeter Size: 1" (Coaxial)

Power Handling: 40W RMS / 120W Peak

Frequency Response (w/*BassRev Tuning ON): 67Hz - 20kHz

Frequency Response (w/*BassRev Tuning OFF): 75Hz - 20kHz

Sensitivity: 84dB (1W/1m)

Impedance: 4Ω

Mounting Depth: 1-3/4" (woofer)

Cone Material: Polypropylene (woofer), Polyester cloth-dome (tweeter)

Surround Material: Rubber HEDGE™ Design (woofer)

Voice Coil Diameter: 25mm (woofer), 20mm (tweeter)

Magnet Size: 75mm (woofer)

Magnet Material: Ferrite (woofer), Neodymium (tweeter)

Frame Material: Steel (woofer)

*BassRev tuning requires Alpine OPTIM8® DSP/Amplifier using Alpine OPTIM™Sync Technology.
