Aerpro SWLVTVXC Steering Wheel Control Interface To Suit Holden - Calais, Statesman Premium Maestro Systems

Description

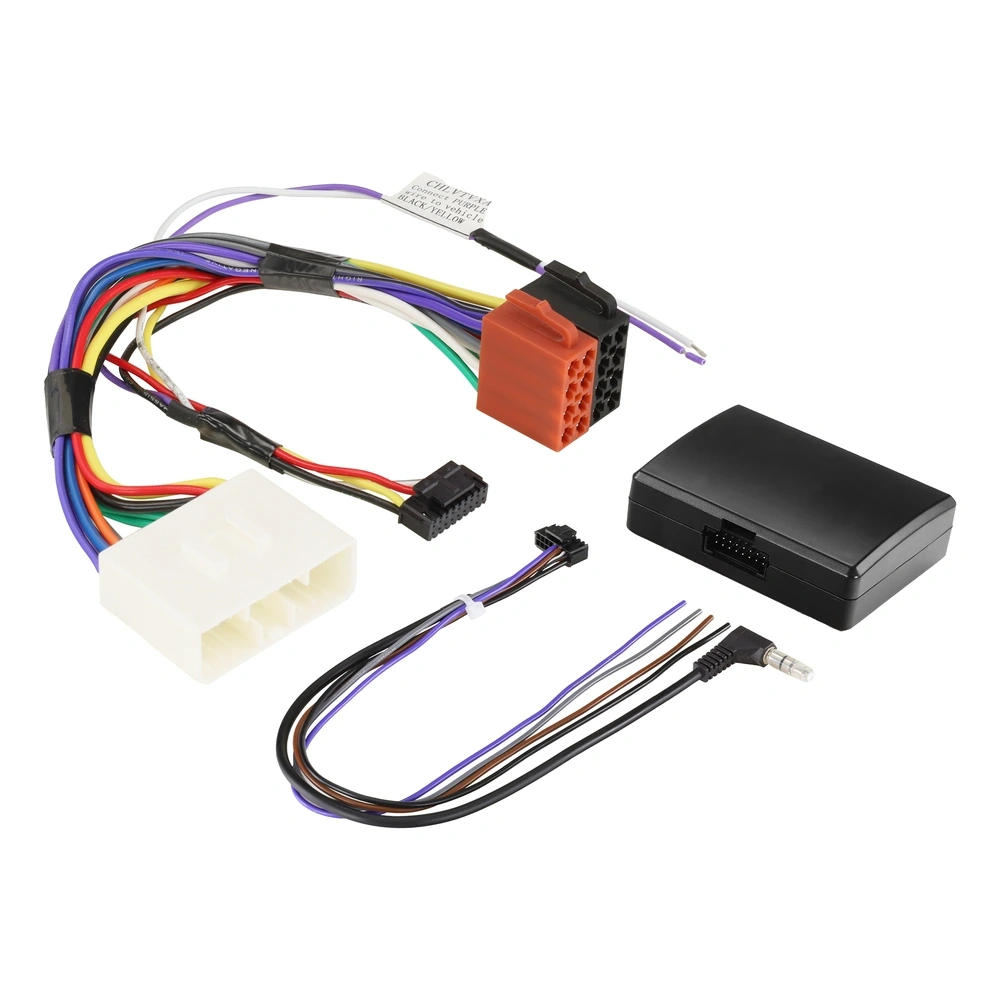

The Aerpro SWVTVXC Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit Holden Calais (VT), Commodore (VT/VX/VU), Monaro (V2I) and Statesman (WH) models with premium maestro OEM systems, the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP8 Headunit Secondary ISO Harness, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface.

• Please Note:
  • Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
  • Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
  • Black wire needs to be connected to Black/Yellow wire in the vehicle, White wire needs to be connected to Brown wire in vehicle (located in 12 pin plug).

Features

• Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
• Fitted with a vehicle specific plug, no cutting of wires required
• Recommended to be installed with an Aerpro APP8 Headunit Secondary ISO Harness (sold separately)
• Optional button remapping available to customise your steering control button configuration (requires programming)

Specs

• INTERFACE TYPE: ANALOGUE
• PATCH LEAD TYPE: SW
• PHONE BUTTON COMPATIBILITY: NO
• VOICE ASSISTANT BUTTON SUPPORT: NO
• OUTPUTS:
  • REVERSE TRIGGER: NO
  • PARK BRAKE: NO
  • SPEED PULSE: NO
  • ILLUMINATION: NO
  • AMP REMOTE: NO
  • TELEPHONE MUTE: NO
• OTHER RETENTION:
  • OEM AMPLIFIED SYSTEM: NO
• NOTES:
  • Aftermarket headunit must be SWC compatible.
  • Black wire needs to be connected to Black/Yellow wire in the vehicle, White wire needs to be connected to Brown wire in vehicle (located in 12 pin plug).
  • Custom button remapping available, requires USB-C cable (sold separately) click here for remapping instructions

Vehicles known to work with this product

• Holden Calais 1997-1999 VT
• Holden Commodore 2000-2002 VX Series I, II, VU
• Holden Monaro 2001-2002 V2
• Holden Statesman 1999-2003 WH Series I , II
