Aerpro CBA230 2.0 / 3.0dbi On-glass Uhf Antenna

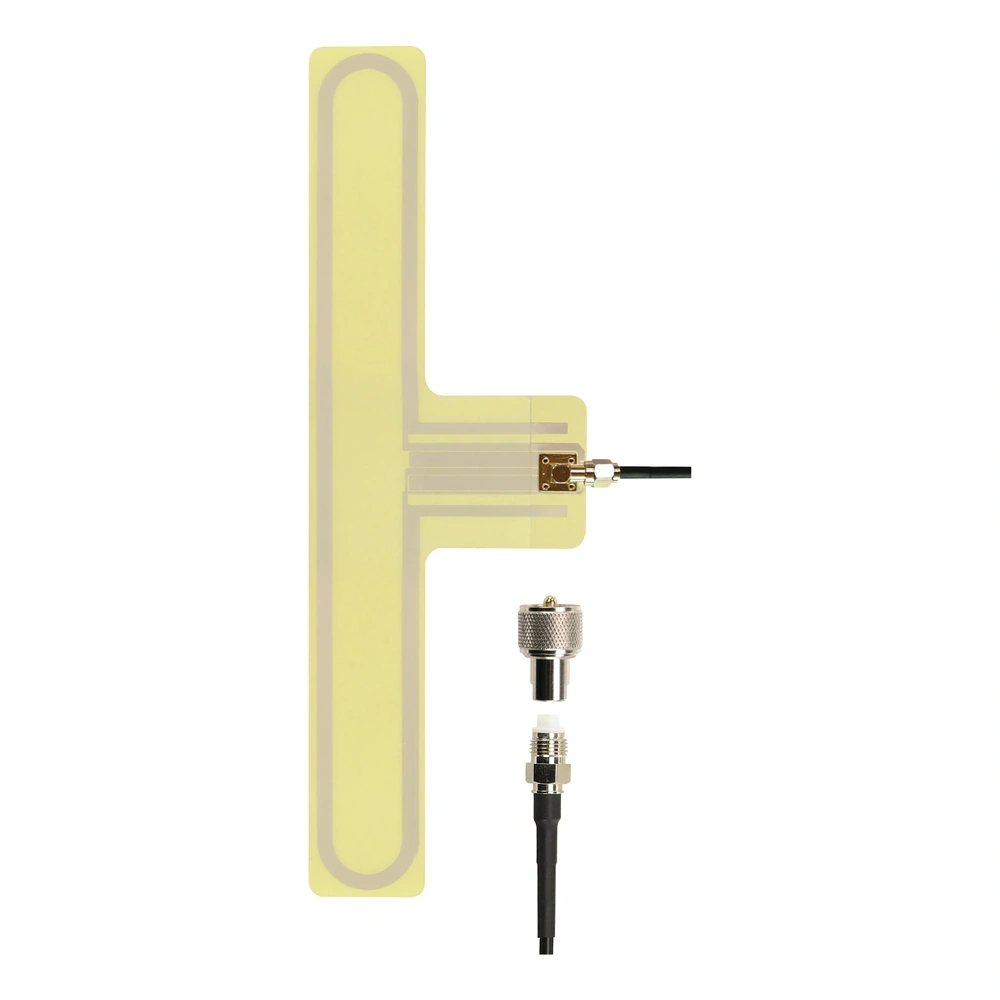

The Aerpro CBA230 2.0–3.0dBi 477MHz On-Glass Adhesive UHF Antenna is compatible with most brands of 477MHz UHF Radios. Designed for vehicles where an external antenna mount is not possible or desirable, the CBA230 uses a clear self-adhesive mount that attaches directly to the inside of a windscreen or rear window — no drilling, no external hardware and no permanent modifications required. With 2.0 / 3.0dBi gain, the broad radiation pattern is well suited to urban environments and built-up regions where communication range is typically shorter and signals need to work in multiple directions.

The white and clear antenna element blends neatly against the glass for a clean, unobtrusive appearance. Being ground independent, it maintains a consistent radiation pattern regardless of the vehicle body around it. The 50 Ohm impedance and linear polarisation ensure compatibility with standard UHF Radio installations. It comes supplied with a dedicated 3-metre RG58 coaxial cable terminated with an FME connector, as well as an FME to UHF PL259 screw-on adaptor.

Features

• Compatible with all 477MHz UHF CB radios in Australia and New Zealand for use with all major brands.
• Clear self-adhesive mount attaches directly to the windscreen or rear window — no drilling, no roof holes, no permanent modifications.
• 2.0–3.0dBi broad radiation pattern is well matched to urban, suburban and built-up environments.
• Ground independent design ensures reliable, consistent performance regardless of mounting position on the vehicle.
• Low-profile white and clear antenna element sits discreetly against the glass for a neat, unobtrusive look.
• Includes a dedicated 3-metre RG58 FME cable and FME to PL259 adaptor for a complete, ready-to-install solution.

Specs

• Frequency: 477MHz
• Gain: 2.0–3.0dBi
• Main Colour: White & Clear
• Ground Independent: Yes
• Mount Type: Self-Adhesive Glass Mount
• Impedance: 50 Ohm
• Polarisation: Linear
• Cable Type: RG58 Terminated with Female FME
• Cable Length: 3.0m
• Included Accessories: FME to PL259 Adaptor
