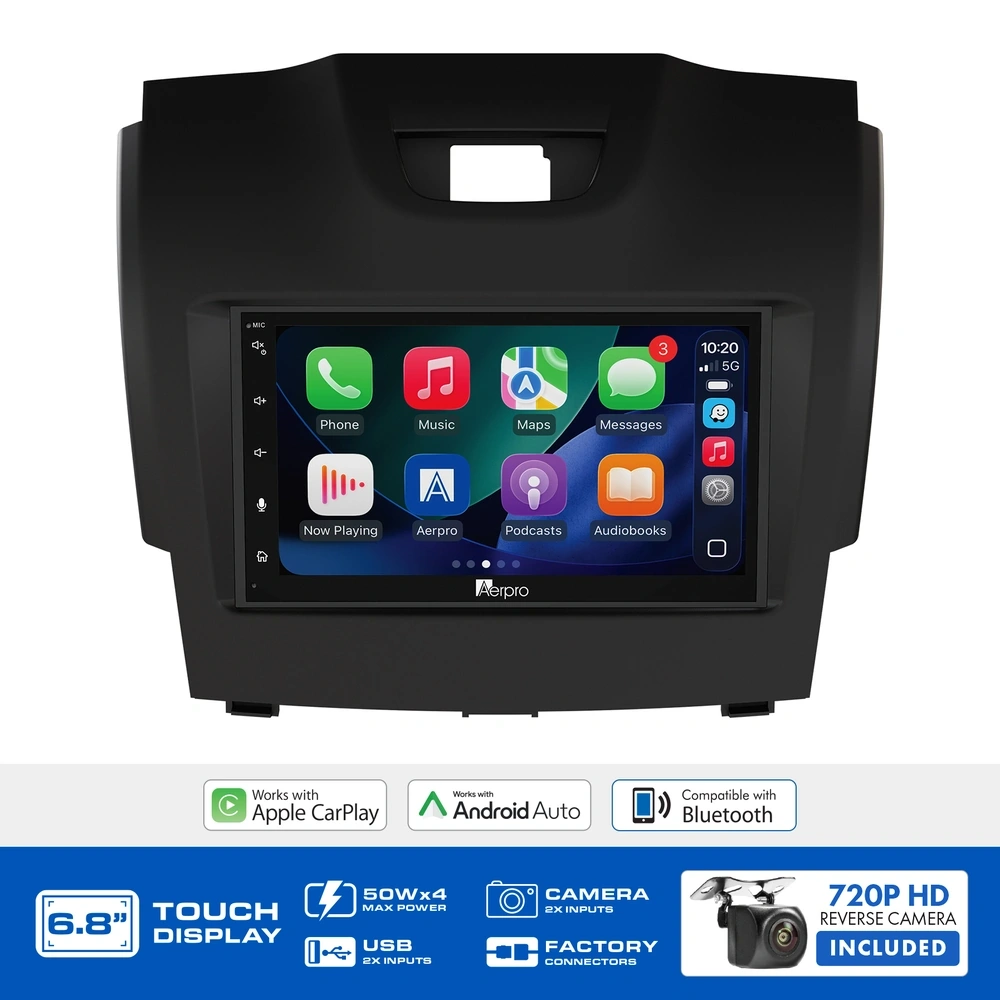

The Aerpro AX8063BC 6.8" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Holden Colorado and Colorado 7 (2014-2016) vehicles. Featuring a vibrant 6.8" capacitive touchscreen display with a crisp 1024x600 resolution, this Multimedia Receiver supports Apple CarPlay and Android Auto wirelessly or wired, built-in Bluetooth V5 for hands-free phone calls and wireless audio streaming, dual rear USB inputs and an AM/FM radio tuner with RDS. Sound quality is superb with 4 x 50W max output, 13-band graphic EQ, time alignment and low-pass filter capabilities, and amplifiers can be added via the 4V / 6 RCA Preouts (Front/Rear/Subwoofer). The kit includes a Vehicle Specific Installation Kit designed specifically for Colorado and Colorado 7 2014-2016 vehicles, containing a black facia kit, metal mounting brackets, Infodapter steering wheel control interface, chime speaker, antenna adapter and universal SWC patch lead. A 720P AHD Surface Mount Camera is also included, delivering high definition picture quality with a 150 degree field of view, optional parking guidelines and IP67 rating.

Supplied as a complete Head Unit Upgrade Kit, the Aerpro AX8063BC includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls.

Important Information:

Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
This head unit is sold as a kit which includes:
- Aerpro 6.8" Multimedia Receiver with Wireless CarPlay and Android Auto
- Vehicle Specific Installation Kit
- 720P AHD Surface Mount Camera

Features

Complete Head Unit Upgrade Kit: Includes all the parts required to complete the installation and retain important vehicle features for Holden Colorado and Colorado 7 (2014-2016).
Vehicle Feature Retention: Retains steering wheel controls when applicable.
Vibrant 6.8" Capacitive Touchscreen Display: Crisp 1024x600 resolution with smooth, responsive control for easy navigation of maps, media, and menus.
Wireless Apple CarPlay & Android Auto: Instantly access maps, music, calls, and messages without plugging in your phone, or connect via USB for wired operation and charging.
Bluetooth Hands-Free Calling & Audio Streaming: Bluetooth V5 with HD Voice support, internal and external microphone options, and full phonebook and audio streaming capability.
High-Power Audio with Advanced Tuning: 4 x 50W Max output, 4V / 6 RCA Preouts (Front/Rear/Subwoofer), 13-band EQ, time alignment, and subwoofer control for clear, powerful sound.
720P AHD Surface Mount Camera Included: High definition picture quality with a 150 degree field of view, optional parking guidelines and IP67 rating — mountable as a front, rear or reverse camera.
Dual Camera Inputs (AHD 720P Compatible): Connect the included reverse camera plus an additional front or towing camera for improved visibility and confidence.
AM/FM Tuner with RDS: 18 FM and 12 AM presets for all your broadcast preferences.
USB Media Playback Support: Play music, videos, and photos directly from a USB drive in popular file formats (MP3 / MP4 / MKV / FLAC / Xvid).
Multi-Colour Key Illumination: Customisable 6-colour button lighting to match your vehicle's interior.

Specs

Aerpro 6.8" Multimedia Receiver Specifications:

LCD Display:
- Size: 6.8"
- Resolution: 1024x600
- Touch Screen: Capacitive
OS System: Linux
DIN Size: 2 DIN Body (Double DIN)
Power Output:
- MAX Power (4 Ohm): 4CH x 50W
Media Playback: MP3 / MP4 / MKV / FLAC / Xvid
Device Ports:
- USB1 (Rear): Apple CarPlay & Android Auto with Charging Function – 5V / 1.5A
- USB2 (Rear): Media with Charging Function – 5V / 1.5A
- USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
- Rear A/V Input (RCA Type – 3pcs): Yes
- Composite Video Output: Yes
- Reverse Camera Input: Yes (720P AHD Compatible)
- Second Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V5
- Microphone: Internal + External Microphone
- ID3 Tag/Information (Artist, Album, Song): Yes
- HFP Profile: HFP 1.6 (HD Voice)
Tuner:
- AM/FM (# of Presets): AM 12 / FM 18
- FM Frequency Span (MHz): 87.5–108.0MHz (0.05MHz Step)
- AM Frequency Span (KHz): 522–1710KHz (9KHz Step)
- RDS: Yes
RCA Preamp Outputs:
- RCA Preamp Output: 4V / 6 RCA Preouts (Front/Rear/Subwoofer)
- Subwoofer Level Control: Yes
- Preamp Voltage: 4V p-p
Tone Control:
- 13-Band EQ: 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
- Loudness: Yes
- LPF – Frequencies (Sub): Yes
- Preset EQs: 6+2 Custom
- Time Alignment: Yes
Other Features:
- Steering Wheel Control: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)
Inclusions:
- 6.8" Multimedia Double DIN Head Unit
- Double DIN Metal Frame & Mounting Hardware
- Head Unit Plastic Trim
- Wiring Harness with ISO Connection
- 3 Wire Learning SWC Lead
- External Microphone with Mount
- GPS Antenna with Adhesive Pad
- QR Digital Manual Leaflet

Vehicle Specific Installation Kit Specifications:

Inclusions:
- Facia Kit (Black)
- Infodapter Steering Wheel Control Interface
- Chime Speaker
- Antenna Adaptor
- Universal Patch Lead

AHD Camera Specifications:

Inclusions:
- 720P AHD Surface Mount Camera (wired)
- 6m of Video Cable (RCA) with in-line Reverse Trigger
Mount Type: Surface Mount
Camera Type: Front, Rear Or Reverse
Image Sensor: Sony 225, 1/3 CMOS AHD
Lens Angle: 150 Degree

Important Information:

Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
This head unit is sold as a kit which includes:
- Aerpro 6.8" Multimedia Receiver with Wireless CarPlay and Android Auto
- Vehicle Specific Installation Kit
- 720P AHD Surface Mount Camera
