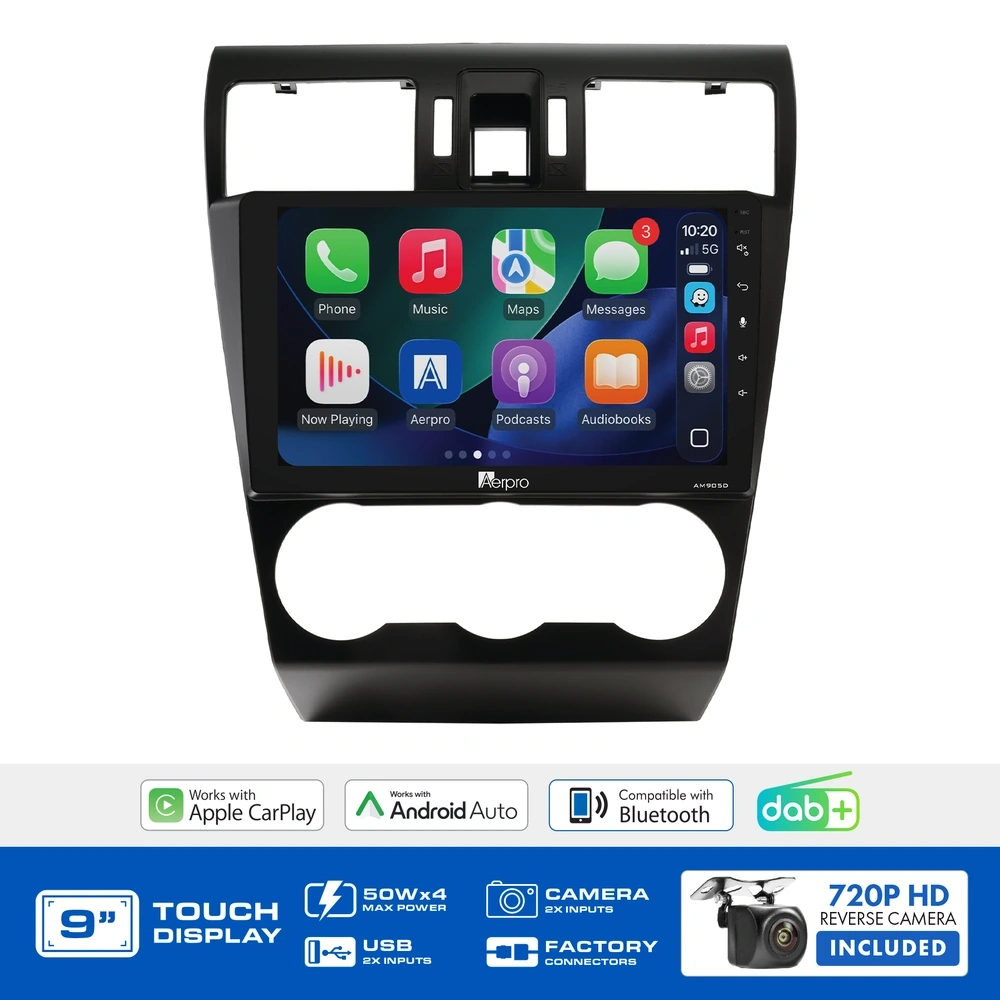

Aerpro AMDSU1 9 Inch Multimedia Receiver To Suit Subaru Forester 2013-2014 , Impreza 2012-2014 & Xv 2012-2015 - Models Without Factory 6.1 Inch Touchs

The Aerpro AMDSU1 9" Multimedia Receiver with Wireless Apple CarPlay, Android Auto and DAB+ suits Subaru Forester SJ (2013-2014), Impreza GP, GJ (2012-2014) and XV (2012-2015) vehicles without a factory 6.1" touchscreen. Featuring a large 9" capacitive touchscreen display with a crisp 1024x600 resolution, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth V5 for hands-free phone calls & wireless audio streaming, dual rear USB inputs, built-in DAB+ digital radio for crystal-clear sound and a wider range of stations, as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 13-band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMSU1 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls. A universal 720P AHD rear camera is also included in this kit.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• This model suits vehicles without a factory 6.1" factory touchscreen (Clarion head unit). For vehicles with a 6.1" factory touchscreen (Fujitsu 10 Denso head unit) please use kit AMASU2.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
• This head unit is sold as a kit which includes:
  • AM905D Multimedia Receiver
  • Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • USB Adaptor

Features

• Complete Head Unit Upgrade Kit: Includes all the parts required to complete the installation and retain important vehicle features for Subaru Forester (2013-2014), Impreza (2012-2014) and Xv (2012-2015) - Models Without Factory 6.1" Touchscreen.
• Vehicle Feature Retention: Retains steering wheel controls and USB input.
• Large 9" Capacitive Touchscreen Display: Crisp 1024x600 resolution with smooth, responsive control for easy navigation of maps, media, and menus.
• Wireless Apple CarPlay & Android Auto: Instantly access maps, music, calls, and messages without plugging in your phone, or connect via USB for wired operation and charging.
• Built-In DAB+ Digital Radio: Enjoy crystal-clear digital sound quality and a wider range of stations, plus AM/FM tuning with RDS for all your broadcast preferences.
• Bluetooth Hands-Free Calling & Audio Streaming: Bluetooth V5 with HD Voice support, internal and external microphone options, and full phonebook and audio streaming capability.
• USB Media Playback Support: Play music, videos, and photos directly from a USB drive in popular file formats.
• 720P AHD Universal Rear Camera Included: Improve visibility and confidence when reversing, with an additional camera input available for a front or towing camera.
• High-Power Audio with Advanced Tuning: 4 x 50W Max output, 5-channel 4V RCA preouts, 13-band EQ, time alignment, and subwoofer control for clear, powerful sound.
• Multi-Colour Key Illumination: Customisable 6-colour button lighting to match your vehicle's interior.

Specs

AMDSU1 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

• Kit Inclusions:
  • AM905D Multimedia Receiver
  • Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • 720P AHD Universal Rear Camera
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes
  • Factory Reverse Camera: N/A
  • AUX Input: N/A
  • USB Input: Yes
  • Parking Tones: N/A
  • Factory Amplifier: N/A
  • Vehicle Menu: N/A
  • Other: N/A

AM905D MULTIMEDIA RECEIVER SPECIFICATIONS:

• LCD Display:
  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive
• OS System: Linux
• DIN Size: Fixed Screen Style (Trapezoid)
• Power Output:
  • MAX Power (4 Ohm): 4CH x 50W
• Media Playback: MP3 / MP4 / MKV / FLAC / Xvid
• Device Ports:
  • USB1 (Rear): Apple CarPlay & Android Auto with Charging Function – 5V / 1.5A
  • USB2 (Rear): Media with Charging Function – 5V / 1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type – 3pcs): Yes
  • Composite Video Output: Yes (Two)
  • Reverse Camera Input: Yes (720P AHD Compatible)
  • Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V5
  • Microphone: Internal + External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile: HFP 1.6 (HD Voice)
• Tuner:
  • DAB: Yes
  • AM/FM (# of Presets): AM 12 / FM 18
  • FM Frequency Span (MHz): 87.5–108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 522–1710KHz (9KHz Step)
  • RDS: Yes
• RCA Preamp Outputs:
  • RCA Preamp Output: 4V, 5 Channel – 3 Pair (Front / Rear / Subwoofer)
  • Subwoofer Level Control: Yes
  • Preamp Voltage: 4V p-p
• Tone Control:
  • 13-Band EQ: 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
  • Loudness: Yes
  • LPF – Frequencies (Sub): Yes
  • Preset EQs: 6+2 Custom
  • Time Alignment: Yes
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)
• Inclusions:
  • 9" Fixed Headunit (Trapezoid)
  • Mounting Hardware Screws
  • Wiring Harness with ISO Connection
  • AV, USB and Camera Harnesses
  • DAB Antenna
  • 3 Wire Learning SWC Lead
  • External Microphone with Mount
  • GPS Antenna with Adhesive Pad
  • QR Digital Manual Leaflet

AHD Camera Specifications:

• Inclusions:
  • 720P AHD Universal Rear Camera (wired)
• Mount Type: Surface Mount
• Camera Type: Rear / Reverse
• Image Sensor: Sony 225, 1/3 CMOS AHD
• Lens Angle: 150 Degree

IMPORTANT INFORMATION:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
• This model suits vehicles without a factory 6.1" factory touchscreen (Clarion head unit). For vehicles with a 6.1" factory touchscreen (Fujitsu 10 Denso head unit) please use kit AMDSU2.

Vehicles known to work with this product

• Subaru Forester 2013-2014 SJ has 2 different product configurations depending on the headunit in the car.
• Subaru Impreza 2012-2014 GP, GJ has 2 different product configurations depending on the headunit in the car.
• Subaru XV 2012-2015 has 2 different product configurations depending on the headunit in the car.
