Aerpro AKVW15 9 Inch install kit to suit Volkswagen various models

The Aerpro AKVW15 9" Installation Kit comes with all of the components required to install a 9" trapezoid shaped radio into your Volkswagen Amarok (2016-on), Beetle (2015-2016), Caddy (2015-2020), Multivan (2016-2019), Tiguan (2015-2016), Transporter (2016-2019), whilst maintaining important vehicle features such as Steering Wheel Control functionality, Vehice Climate Control and Parking Visualisation on the aftermarket display (if equipped).

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Compatible with the following 9" Trapezoid Head Units:

• ALPINE: INE-AW409S, INE-AX809
• KENWOOD: DMX80AXS
• PIONEER: DMH-AP6650BT
• AERPRO: AM9X
• VARIOUS ANDROID HEAD UNITS

Important Information:

• This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios.
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.
• Ignition Stabiliser may be required for Stop/start cars
• Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.

Features:

• To suit Volkswagen Amarok (2016-on), Beetle (2015-2016), Caddy (2015-2020), Multivan (2016-2019), Tiguan (2015-2016), Transporter (2016-2019) vehicles
• Compatible with Alpine INE-AW409S & INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android head units
• Includes all the parts required to complete the installation and to retain important vehicle features
• Provides on-screen access to vehicle menus, HVAC visualisations, and parking sensors
• Compatible with factory-installed Fender amplified audio systems.
• Supports parking camera display with OPS radar overlay for safer reversing. (camera retention harness sold separately)
• Retains steering wheel controls (including phone button)
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Specs:

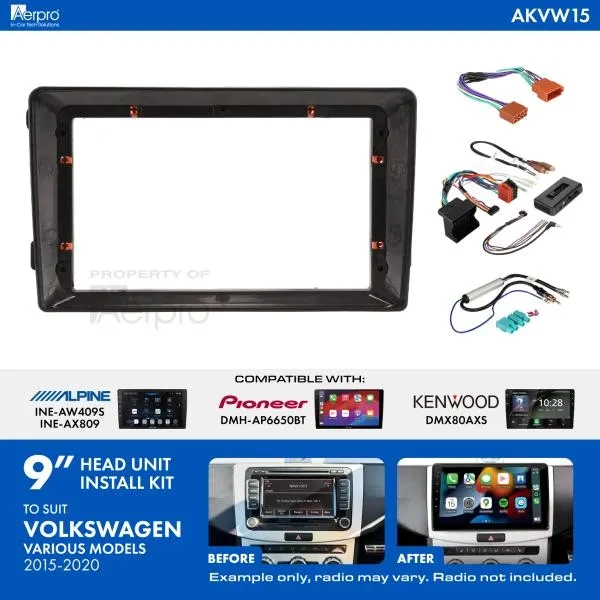

• Kit Inclusions:
  • Matte Black Facia Kit
  • Infolink Adaptor Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Amplifier Retention Harness
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes (including phone button via manually programming)
  • Factory Reverse Camera: No (camera retention harness sold separately)
  • AUX Input: N/A
  • USB Input: No
  • Parking Tones: Yes
  • Factory Amplifier: Yes
  • Vehicle Menu: Yes
  • Other
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios.
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.
  • Ignition Stabiliser may be required for Stop/start cars
  • Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.

Vehicles known to work with this product:

Volkswagen Beetle 2012-

Volkswagen Tiguan 2015-2016

Volkswagen Transporter T6 2016-2019
