Aerpro AKVW14 9 Inch install kit to suit Volkswagen various 2015-2020

The Aerpro AKVW14 9" Installation Kit comes with all of the components required to install a 9" trapezoid shaped radio into your Volkswagen Amarok (2016-), Caddy (2015-2020), Multivan (2016-2019), Tiguan (2015-2016), Transporter (2016-2019) vehicles whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Compatible with the following 9" Trapezoid Head Units:

• ALPINE: INE-AW409S, INE-AX809
• KENWOOD: DMX80AXS
• PIONEER: DMH-AP6650BT
• AERPRO: AM9X
• VARIOUS ANDROID HEAD UNITS

Important Information:

• This kit is developed to suit universal trapezoid shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS and Aerpro AM9X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

Features:

• To suit Volkswagen Amarok (2016-), Caddy (2015-2020), Multivan (2016-2019), Tiguan (2015-2016), Transporter (2016-2019) vehicles
• Compatible with Alpine INE-AW409S & INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android head units
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel controls (including phone button^)
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Specs:

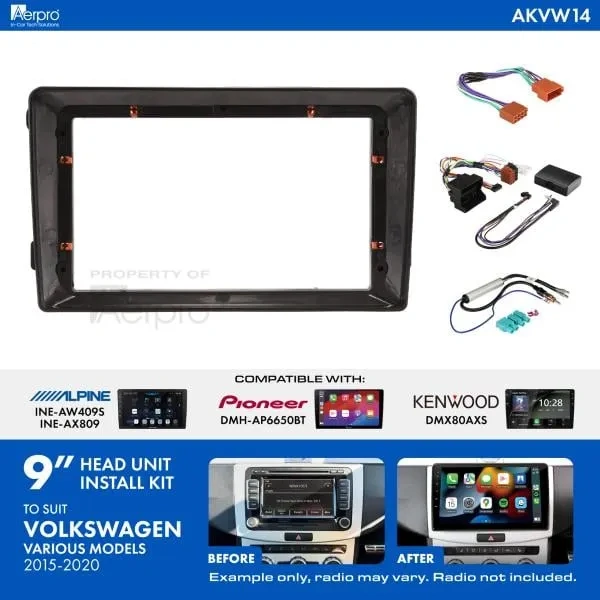

• Kit Inclusions:
  • Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes (including phone button^)
  • Factory Reverse Camera: No
  • AUX Input: No
  • USB Input: No
  • Parking Tones: N/A
  • Factory Amplifier: No
  • Vehicle Menu: No
  • Other: ^Vehicles with MIB-PQ units from factory may need to remove fuse from factory Bluetooth module for phone button to work
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.

Vehicles known to work with this product:

Volkswagen Amarok 2017-2022

Volkswagen Caddy 2015-2020

Volkswagen Multivan 2016-2019

Volkswagen Tiguan 2015-2016

Volkswagen Transporter T6 2016-2019
