Aerpro AKVW13 9 Inch install kit to suit vw various 2006-2015

The Aerpro AKVW13 9" Installation Kit comes with all of the components required to install a 9" trapezoid shaped radio into your suits Volkswagen EOS (2007-2014), Golf (2009-2013), Passat (2006-2015), Polo (2010-2014), Scirocco (2009-2014), Tiguan (2008-2014) vehicles with Blaupunkt factory amplifier. The AKVW13 maintains important vehicle features such as Steering Wheel Control functionality, Vehice Climate Control, Parking Visualisation on the aftermarket display (if equipped) and the factory amplified system (model dependant**).

Please Note: This kit is developed to suit universal trapezoid shaped radios such as Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.

Feature Retention will be radio dependent

Compatible with the following 9" Trapezoid Head Units:

• ALPINE: INE-AW409S, INE-AX809
• KENWOOD: DMX80AXS
• PIONEER: DMH-AP6650BT
• AERPRO: AM9X
• VARIOUS ANDROID HEAD UNITS

Important Information:

• This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios.
• Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.
• Not compatible with factory Panasonic amplified systems, for these vehicles please use the Aerpro AKVW12 Head Unit Upgrade Kit.

Features:

• To suit Volkswagen EOS (2007-2014), Golf (2009-2013), Passat (2006-2015), Polo (2010-2014), Scirocco (2009-2014), Tiguan (2008-2014) vehicles
• Compatible with Alpine INE-AW409S & INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android head units
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel controls (including phone button)
• Provides on-screen access to vehicle menus, HVAC visualisations, and parking sensors.
• Compatible with factory-installed amplified audio systems. (Blaupunkt factory amplifier)
• Supports parking camera display with OPS radar overlay for safer reversing.
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Specs:

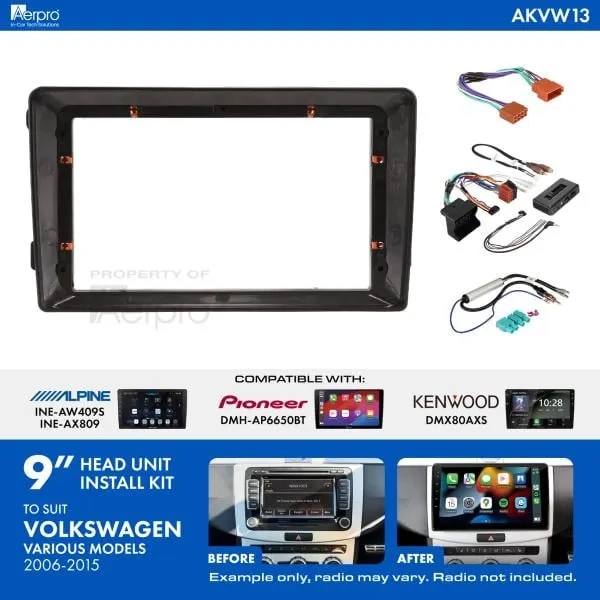

• Kit Inclusions:
  • Black Facia Kit
  • Infolink Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes (including phone button)
  • Factory Reverse Camera: No
  • AUX Input: No
  • USB Input: No
  • Parking Tones: N/A
  • Factory Amplifier: Yes (Blaupunkt factory amplified)
  • Vehicle Menu: Yes
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.
  • Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.
  • Not compatible with factory Panasonic amplified systems, for these vehicles please use the Aerpro AKVW12 Head Unit Upgrade Kit.

Vehicles known to work with this product:

Volkswagen EOS 2007-2014

Volkswagen Golf 2009-2013 MK6

Volkswagen Passat 2006-2015

Volkswagen Polo 2010-2014

Volkswagen Scirocco 2009-2014

Volkswagen Tiguan 2008-2014
