Aerpro AKTO9 9 Inch install kit to suit Toyota hilux pre 2011 suits DMH-AP6650BT & DMX80AXS

The Aerpro AKTO49 9" Installation Kit comes with all of the components required to install a 9" trapezoid shaped radio into your Toyota Hilux (Pre 2011) vehicles with steering wheel controls.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Important Information:

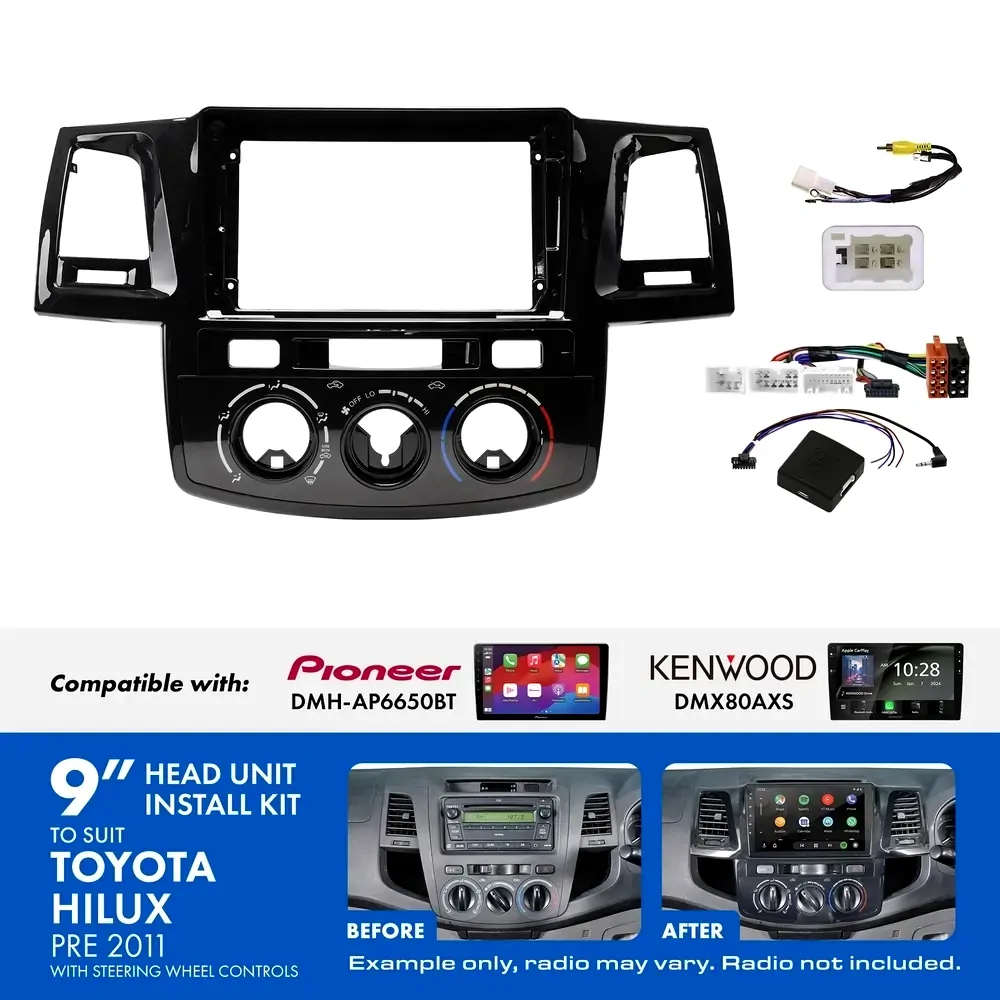

• This kit is developed to suit universal trapezoid shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS and Aerpro AM9X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

Features

• To suit Toyota Hilux (Pre 2011) vehicles with steering wheel controls
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped)
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Specs

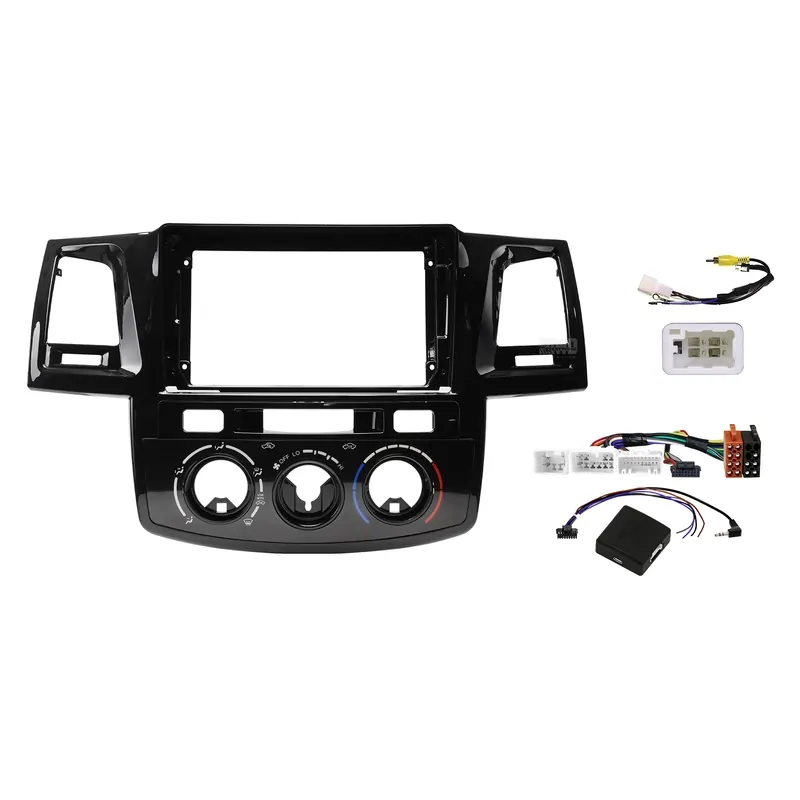

• Kit Inclusions:
  • Gloss Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Camera Retention Adaptor
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes
  • Factory Reverse Camera: Yes (if equipped)
  • AUX Input: No
  • USB Input: No
  • Parking Tones: N/A
  • Factory Amplifier: No
  • Vehicle Menu: No
  • Other:
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS and Aerpro AM9X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.

Vehicles

• Toyota Hilux 2005-2011 (Headunit Dependant)
