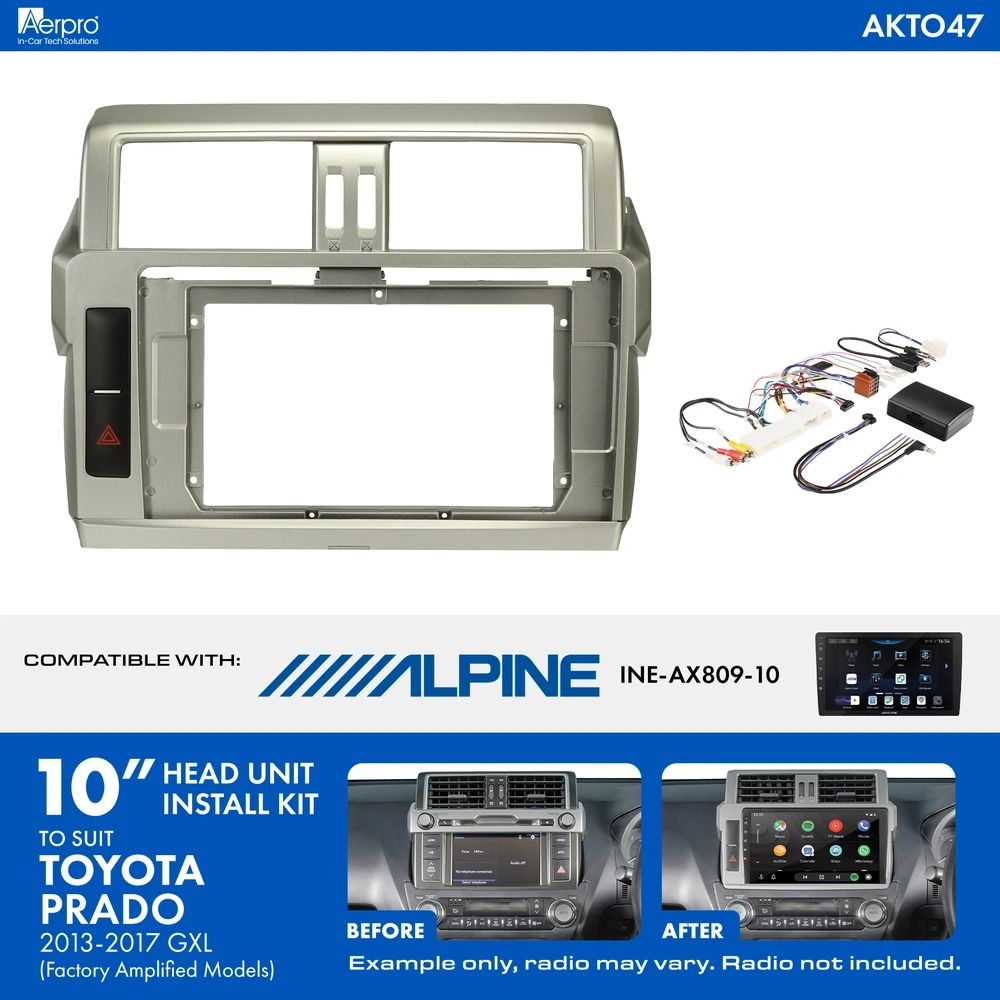

Aerpro AKTO47 10 Inch install kit to suit Toyota prado gxl 2013-2017

The Aerpro AKTO47 10" Installation Kit comes with all of the components required to install a 10" trapezoid shaped radio into your Toyota Prado GXL (2013-2017) vehicles whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Compatible with the following 10" Trapezoid Head Units:

• ALPINE:INE-AW409S-10, INE-AX809-10
• AERPRO:AM10X
• VARIOUS ANDROID HEAD UNITS

Important Information:

• This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Suits Amplified variant.
• Feature Retention will be radio dependent.

• To suit Toyota Prado GXL (2013-2017) vehicles with steering wheel controls
• Compatible with Alpine INE-AW409S-10, INE-AX809-10, Aerpro AM10X, AM1005D and various Android head units
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel controls (Including phone button) and factory reverse camera retention (if equipped)
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

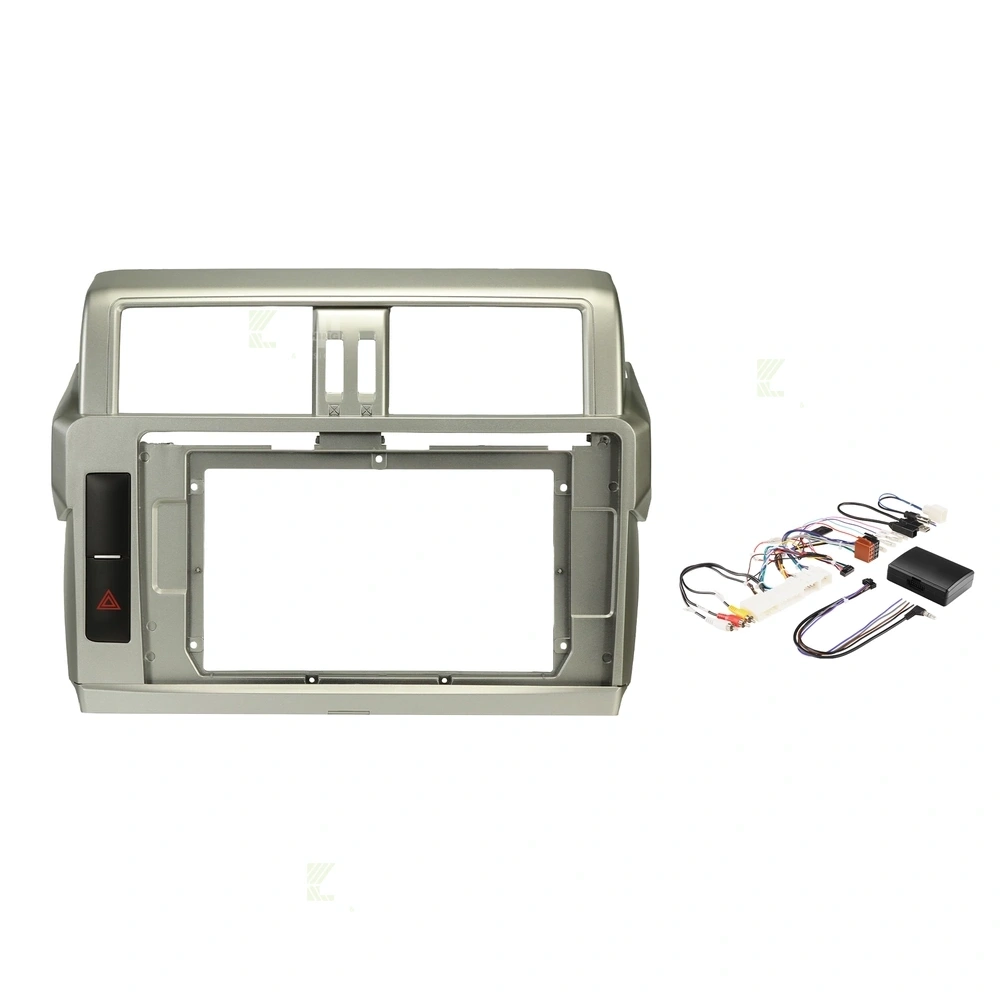

• Kit Inclusions:
  • Silver Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Factory USB Retention Adaptor
  • Camera Retention Adaptor
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes
  • Factory Reverse Camera: Yes (if equipped)
  • AUX Input: Yes
  • USB Input: Yes
  • Parking Tones: Yes
  • Factory Amplifier: Yes
  • Vehicle Menu: No
  • Other: Suits Amplified variant
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.
  • Due to the trim at the bottom of the facia, the 10" to 9" adapter does not suit this kit
