Aerpro AKTO45 9/10 Inch install kit to suit Toyota kluger grande 2007-2013

The Aerpro AKTO45 9/10" Installation Kit comes with all of the components required to install a 9/10" trapezoid shaped radio into your Toyota Kluger Grande (2007-2013) with factory navigation but without factory amplifier, vehicles whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Compatible with the following 9/10" Trapezoid Head Units:

• ALPINE: INE-AW409S, INE-AX809
• KENWOOD: DMX80AXS
• PIONEER: DMH-AP6650BT
• AERPRO: AM9X, AM10X
• VARIOUS ANDROID HEAD UNITS

Important Information:

• This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

Features

• To suit Toyota Kluger Grande (2007-2013) with factory navigation but without factory amplifier
• Compatible with Alpine INE-AW409S & INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X & AM10X, and various Android head units
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped)
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Specs

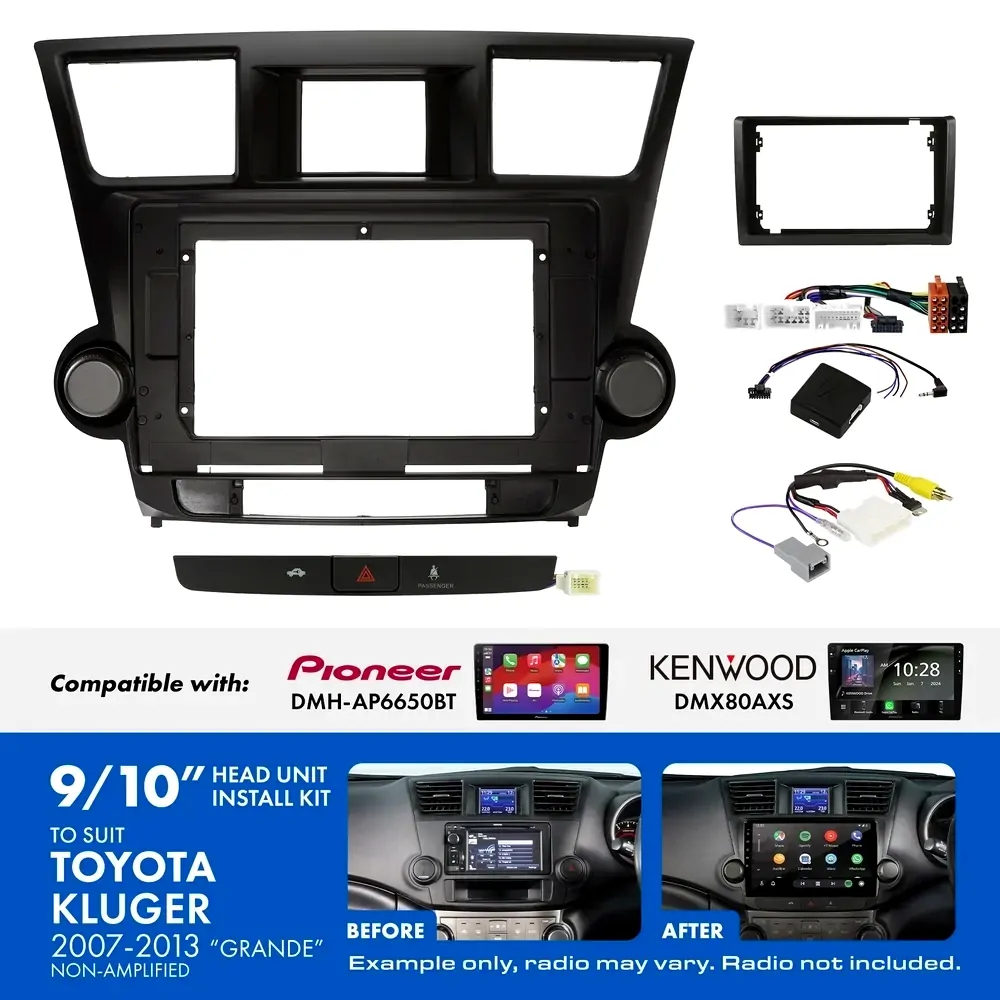

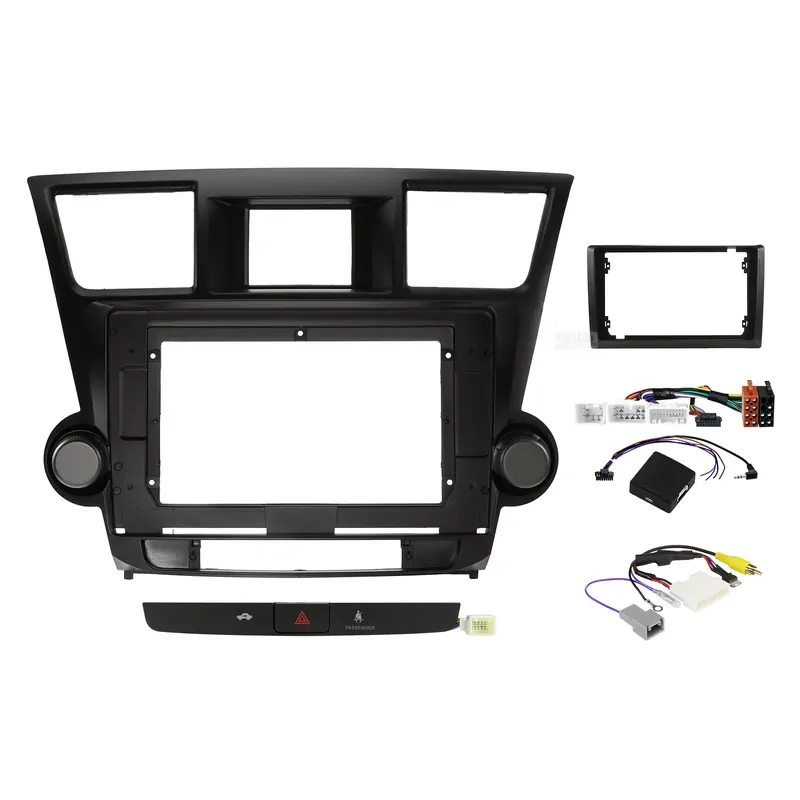

• Kit Inclusions:
  • Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Adaptor to allow for 9" and 10" radios to be installed
  • Antenna Adaptor
  • Camera Retention Adaptor
  • Hazard Switch
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes (including phone button)
  • Factory Reverse Camera: Yes (if equipped)
  • AUX Input: No
  • USB Input: No
  • Parking Tones: N/A
  • Factory Amplifier: No
  • Vehicle Menu: No
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.

Vehicles

• Toyota Kluger 2007-2013 "Grande"
