Aerpro AKTO4 9/10 Inch install kit to suit Toyota hilux 2020-

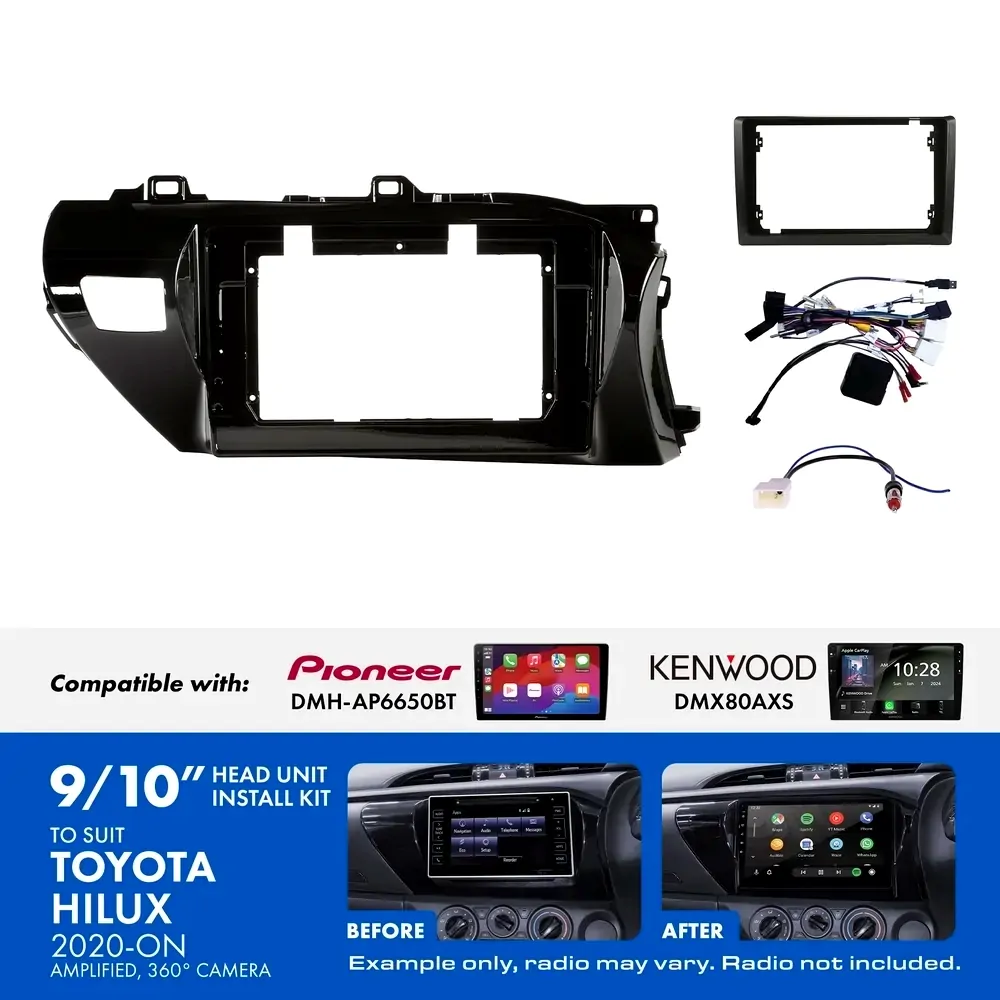

The Aerpro AKTO4 9/10" Installation Kit comes with all of the components required to install a 9/10" trapezoid shaped radio into your Toyota Hilux (2020-) vehicles with factory amplifier and 360 camera, whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Compatible with the following 9/10" Trapezoid Head Units:

• ALPINE: INE-AW409S, INE-AX809
• KENWOOD: DMX80AXS
• PIONEER: DMH-AP6650BT
• AERPRO: AM9X, AM10X
• VARIOUS ANDROID HEAD UNITS

Important Information:

• This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

Features

• To suit Toyota Hilux (2020-) vehicles with factory amplifier and 360 camera
• Compatible with Alpine INE-AW409S & INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X & AM10X, and various Android head units
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped)
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Specs

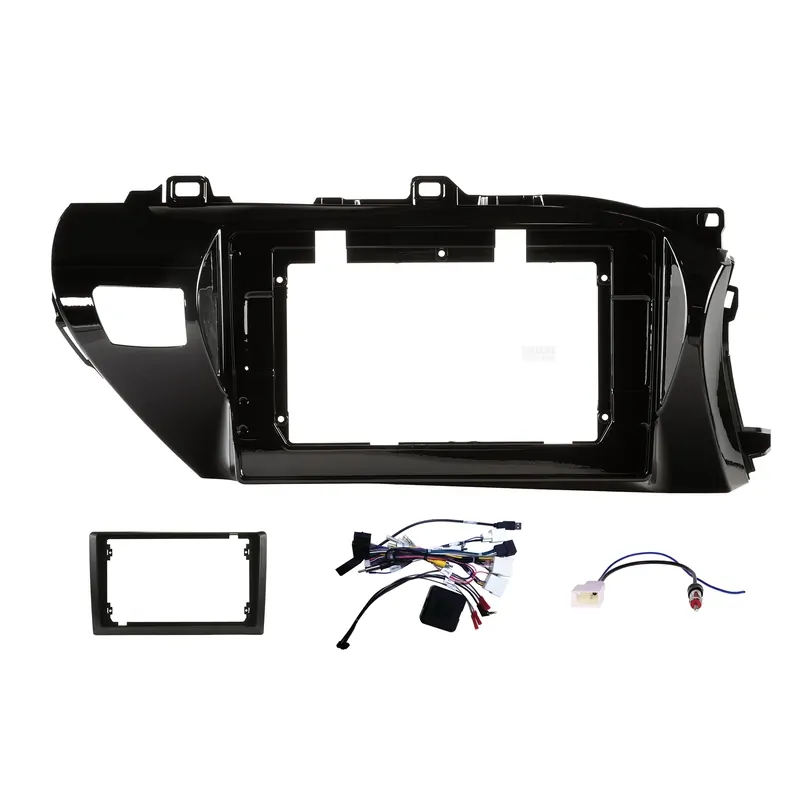

• Kit Inclusions:
  • Black Gloss Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Adaptor to allow for 9" and 10" radios to be installed
  • Antenna Adaptor
  • 360 Camera Retention Adaptor
  • Factory USB Retention Harness
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes (including phone button)
  • Factory Reverse Camera: Yes (if equipped)
  • AUX Input: Yes
  • USB Input: Yes
  • Parking Tones: N/A
  • Factory Amplifier: Yes
  • Vehicle Menu: No
  • Other: Does not support factory fade
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.

Vehicles

• Toyota Hilux 2020-
