Aerpro AKIZ1B 9 Inch install kit to suit Holden Isuzu 2012-2020

The Aerpro AKIZ1B 9" Installation Kit comes with all of the components required to install a 9" trapezoid shaped radio into your Holden Colorado (inc 7) 2012-2014, Isuzu D-Max 2012-2020 and Isuzu MU-X 2013-2017 vehicle whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Compatible with the following 9" Trapezoid Head Units:

• ALPINE: INE-AW409S
• KENWOOD: DMX80AXS
• PIONEER: DMH-AP6650BT
• AERPRO: AM9X
• VARIOUS ANDROID HEAD UNITS

Important Information:

• This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

Features

• To suit Holden Colorado (inc 7) 2012-2014, Isuzu D-Max 2012-2020 and Isuzu MU-X 2013-2017 vehicles
• Compatible with Alpine INE-AW409S, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android head units
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel control (including phone button) and factory reverse camera retention (if equipped)
• To simplify installation, this kit is compatible with Aerpro APP8 headunit harness adapters

Specs

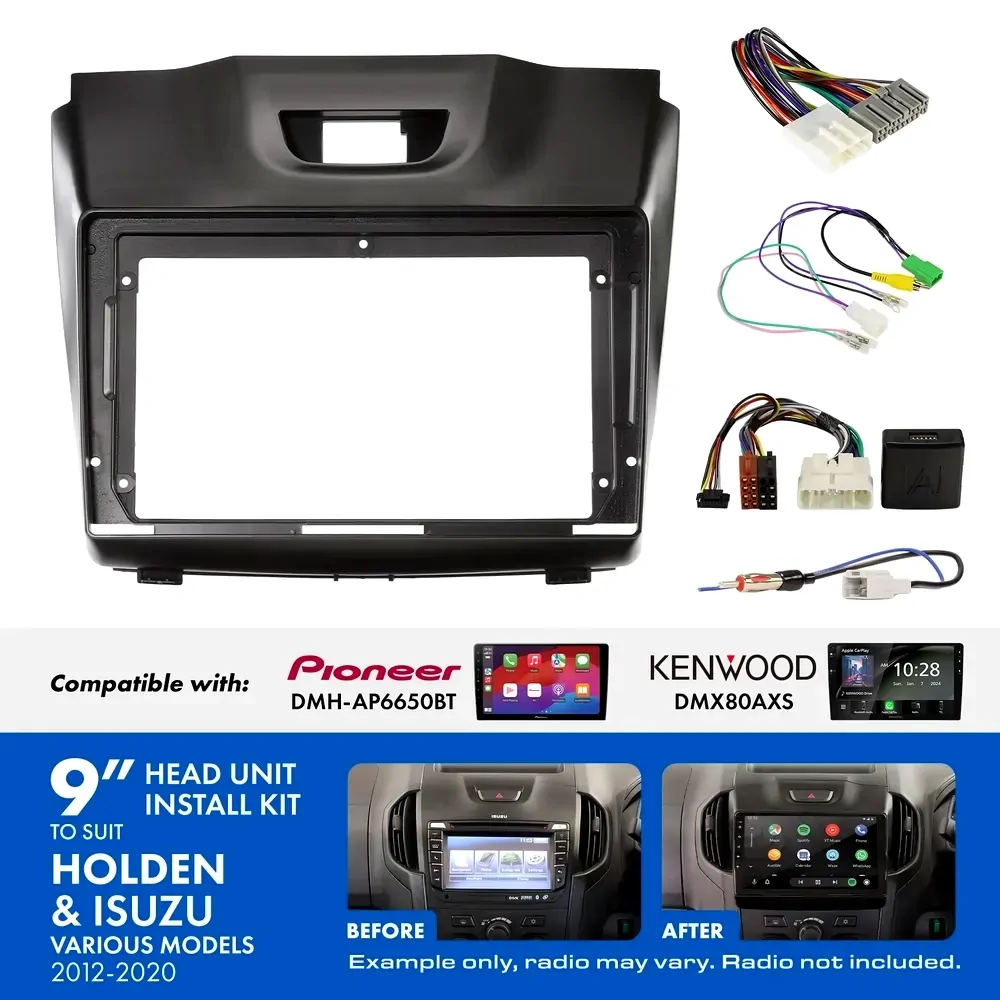

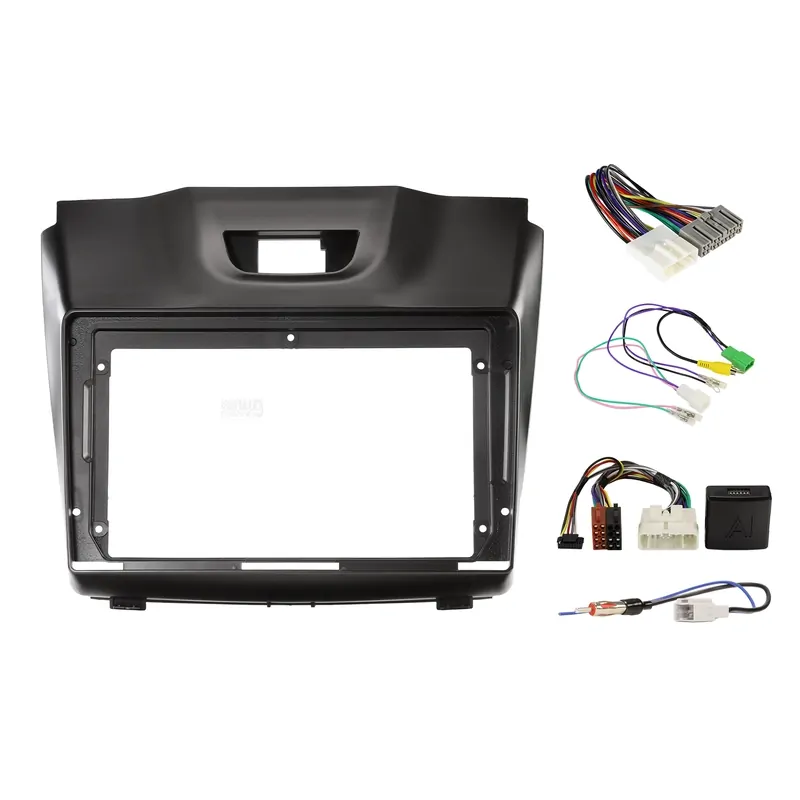

• Kit Inclusions:
  • Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Camera Retention Adaptor
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes (including phone button)
  • Factory Reverse Camera: Yes (if equipped)
  • AUX Input: N/A
  • USB Input: No
  • Parking Tones: N/A
  • Factory Amplifier: N/A
  • Vehicle Menu
  • Other: Not compatible with Holden Mylink Systems
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.

Vehicles

• Holden Colorado 7 2012-2014
• Isuzu MU-X 2013-2021 (Headunit Dependant)
• Holden Colorado 2012-2014 RG
• Isuzu D-Max 2012-2020 (Headunit Dependant)
