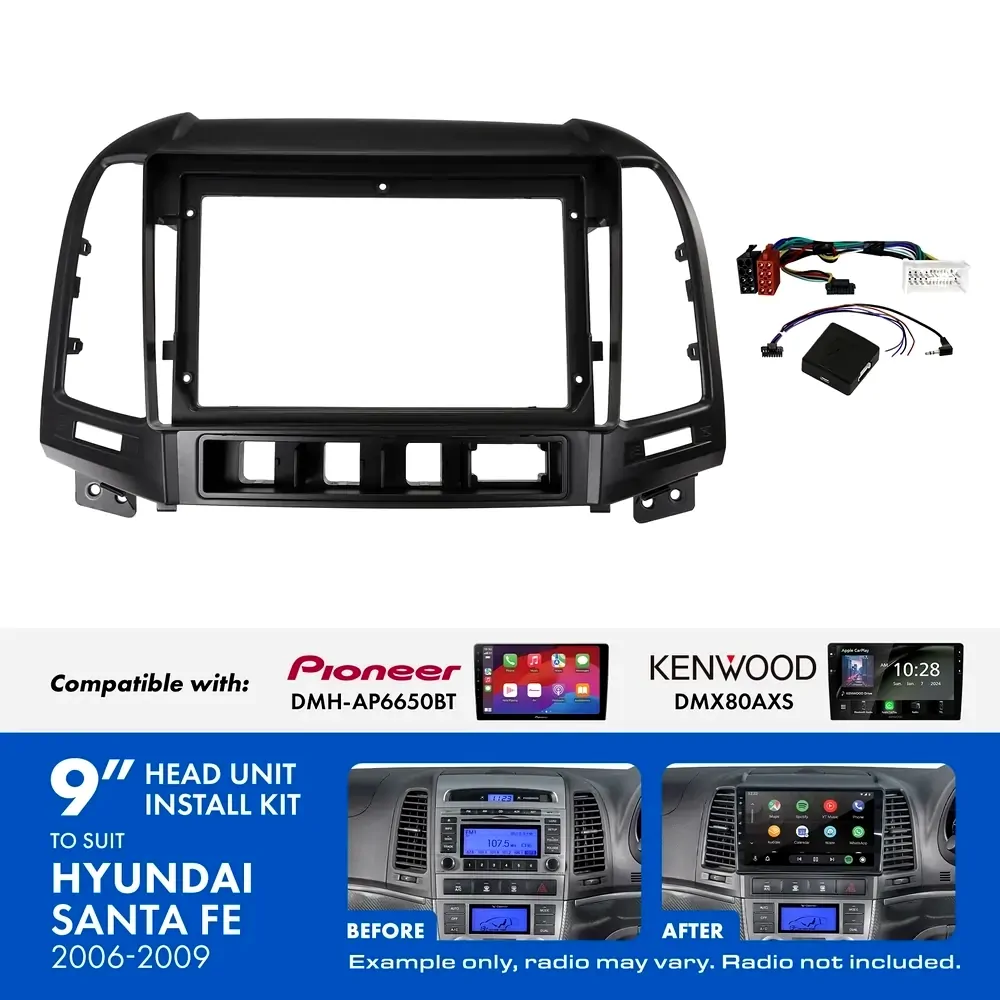

Aerpro AKHY19 9 Inch install kit to suit Hyundai santa fe 2006-2009

The Aerpro AKHY19 9" Installation Kit comes with all of the components required to install a 9" trapezoid shaped radio into your Hyundai Santa Fe (2006-2009) non amplified vehicles whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Compatible with the following 9" Trapezoid Head Units:

• ALPINE: INE-AW409S
• KENWOOD: DMX80AXS
• PIONEER: DMH-AP6650BT
• AERPRO: AM9X
• VARIOUS ANDROID HEAD UNITS

Important Information:

• This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

Features

• To suit Hyundai Santa Fe (2006-2009) non amplified vehicles
• Compatible with Alpine INE-AW409S, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android head units
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel controls
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Specs

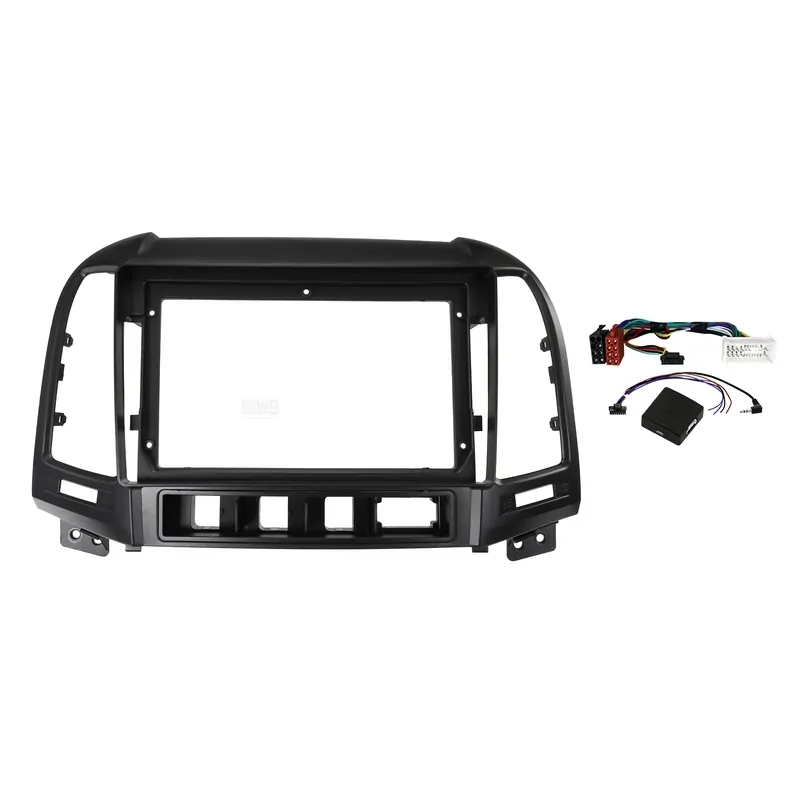

• Kit Inclusions:
  • Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes
  • Factory Reverse Camera: No
  • AUX Input: No
  • USB Input: No
  • Parking Tones: N/A
  • Factory Amplifier: No
  • Vehicle Menu: No
  • Other: Does not suit factory amplified models
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.

Vehicles

• Hyundai Santa Fe 2006-2008 CM (Headunit Dependant)
