Aerpro AKHY1 9 Inch install kit to suit Hyundai i30 2012-2017

The Aerpro AKHY1 9" Installation Kit comes with all of the components required to install a 9" trapezoid shaped radio into your Hyundai i30 2012-2017 vehicles without factory navigation, whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Compatible with the following 9" Trapezoid Head Units:

• ALPINE:INE-AW409S, INE-AX809
• KENWOOD:DMX80AXS
• PIONEER:DMH-AP6650BT
• VARIOUS ANDROID HEAD UNITS

Important Information:

• This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.
• The included USB Retention harnesss will only suit later model vehicles with a GD-03 head unit from factory. GD-01 and GD-02 Head units will need the APHYUSB4 (sold separately) for the factory USB to be retained.

• To suit Hyundai i30 2012-2017 vehicles without factory navigation
• Compatible with Alpine INE-AW409S, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android head units
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped)
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

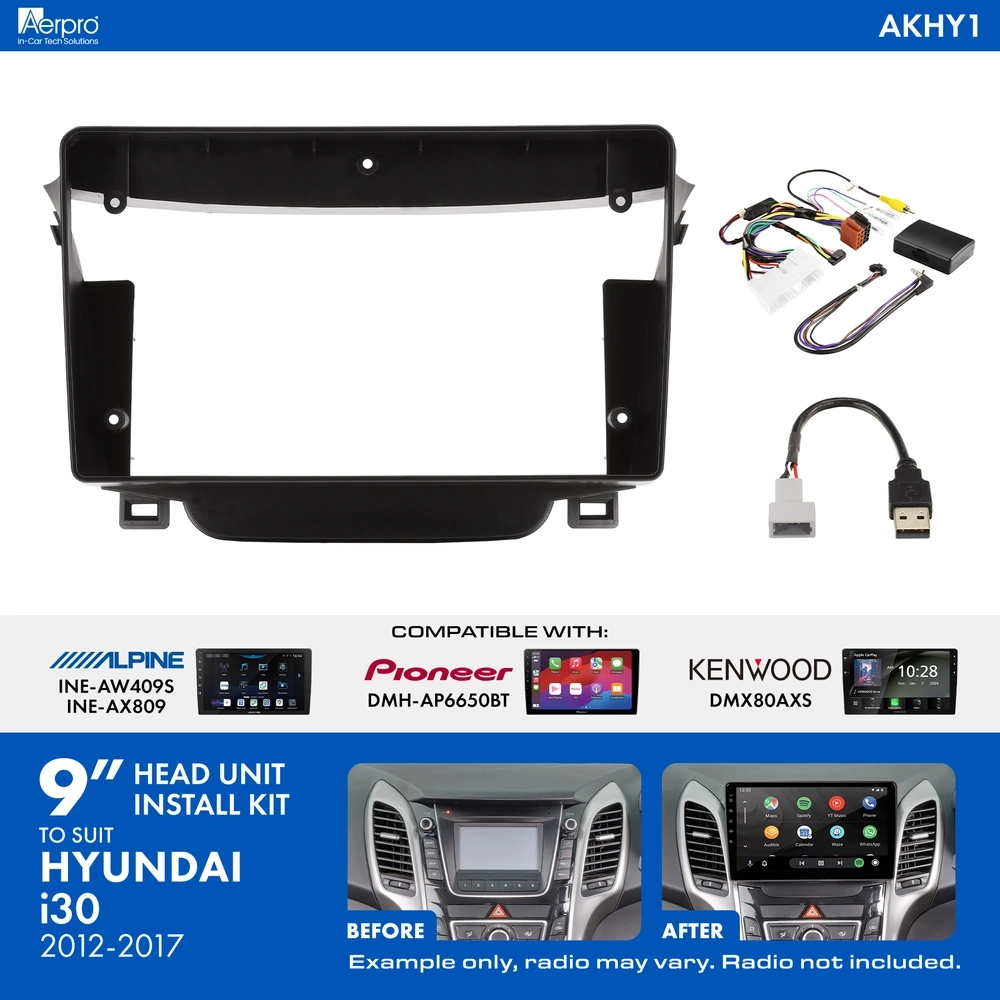

• Kit Inclusions:
  • Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Camera Retention Adaptor
  • Factory USB Retention Harness (Suits GD-03 models only)
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes (including phone button)
  • Factory Reverse Camera: Yes (if equipped)
  • AUX Input: No
  • USB Input: Yes (GD-03 models only)
  • Parking Tones: Yes
  • Factory Amplifier: No
  • Vehicle Menu: No
  • Other: Suitable for vehicles without factory navigation
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.
  • The included USB Retention harnesss will only suit later model vehicles with a GD-03 head unit from factory. GD-01 and GD-02 Head units will need the APHYUSB4 (sold separately) for the factory USB to be retained.
