Aerpro AKCFO10 9 INCH INSTALL KIT TO SUIT FORD FOCUS LZ 2015-2018

The Aerpro AKCFO10 9 Inch Installation Kit comes with all of the components required to install a 9 Inch trapezoid shaped radio into your Ford Ford Focus 2015-2018 LZ (Vehicles with Sync3) whilst maintaining important vehicle features such as Steering Wheel Control functionality. Also retains Vehice Climate Control and Parking Visualisation on the aftermarket display (if equipped)

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Compatible with the following 9 Inch Trapezoid Head Units:

• ALPINE:INE-AW409S
• KENWOOD:DMX80AXS
• PIONEER:DMH-AP6650BT
• AERPRO:AM9X, AM905D
• VARIOUS ANDROID HEAD UNITS

Important Information:

• This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

• To suit Ford Ford Focus 2015-2018 LZ (Vehicles with Sync3)
• Compatible with Alpine INE-AW409S, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X & AM905D, and various Android head units
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped)
• Retains Vehicle Climate Control and Parking Visualisation on the aftermarket display (if equipped)
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

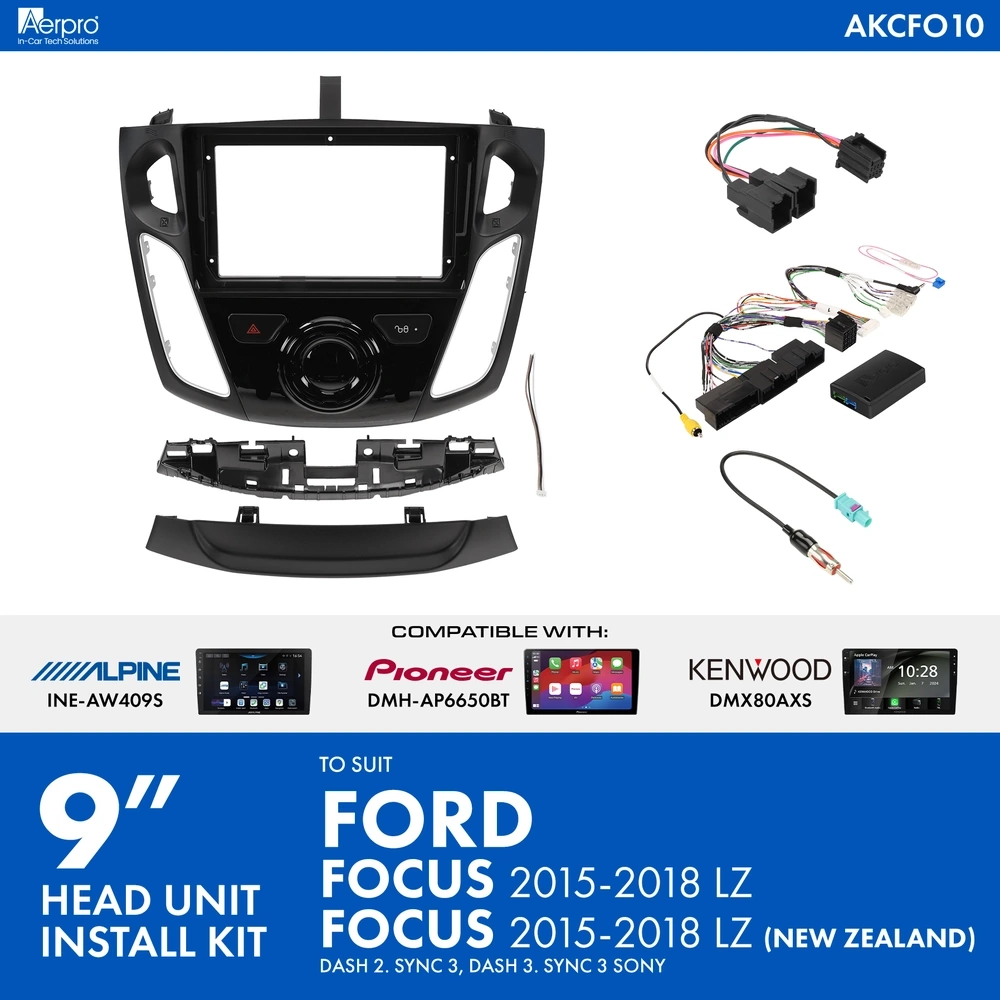

• Kit Inclusions:
  • Black Facia Kit
  • Steering Wheel Control Infolink Harness
  • Antenna Adaptor
  • Factory USB Retention Harness
• Interface type:INFOLINK PLUS
• Patch lead type:H
• Outputs:
  • Reverse trigger: Yes (purple)
  • Park brake: Yes (green)
  • Speed pulse: Yes (pink)
  • Illumination: Yes
  • Amp remote: No
  • Telephone mute: No
• Other retention:
  • Vehicle menus: Yes
  • OEM amplifier: Yes
  • OEM reverse camera: Yes
  • OEM AUX input: No
  • OEM USB input: No
  • OEM antenna: No
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.
