Aerpro AEM1RB3 9.6 Inch Digital E-mirror With Rear Dvr Camera Kit To Suit Volkswagen

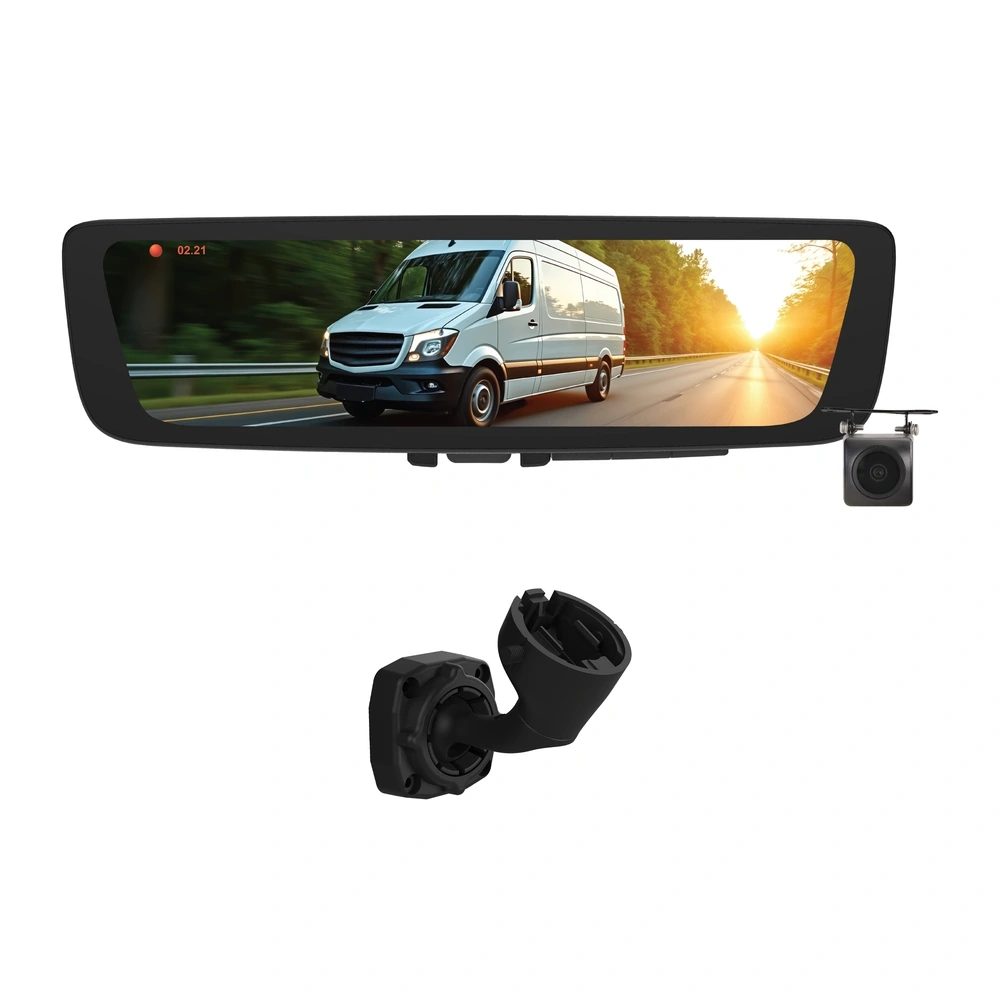

Experience a smarter, safer rearview with the Aerpro AEM1RB3 9.6" Digital E-Mirror with Rear DVR Camera Kit, matched to suit Volkswagen Caddy, Crafter, Golf, Passat, Tiguan and Transporter models. Designed for vehicles where a canopy, camper or tray blocks the factory mirror, the AEM1RB3 replaces your existing rearview mirror with a sleek 9.66" IPS touch screen delivering a live HD feed from the included rear camera, giving you clear, unobstructed vision at all times.

This kit pairs the AEM1R Digital E-Mirror with the AEMB3 vehicle-specific mounting bracket in the one box, so there is no separate bracket to source or match up. The bracket installs in place of the factory mirror for a clean, integrated result, with no cutting or fabrication required.

The AEM1RB3 features a stunning 9.66" IPS touch screen at 1920x480 resolution with a super-bright 1000 nit display and automatic brightness adjustment, making it equally legible in direct sunlight or low-light conditions. A flip switch lets you instantly revert to a conventional mirror view whenever needed, and the integrated clock and date display keeps essential information on screen at all times.

Powered by a Sony STARVIS 2 image sensor, the included AHD 1080P rear camera delivers exceptional image quality day and night. When you select reverse gear, the screen automatically switches to the rear camera view with on-screen parking guidelines to assist with precision manoeuvring. For everyday driving, the live camera feed provides constant rear vision, eliminating the blind spots created by full canopy and camper setups.

The built-in DVR records continuously in 1080P HD at 30 frames per second, with automatic impact-triggered event saving to protect critical footage in the event of an incident. The system supports MicroSD cards up to 256GB (sold separately, Class 10 required), giving you generous on-board storage for extended recording sessions.

Installation is straightforward with the included 8-metre camera cable and matched AEMB3 mounting bracket, and the system is compatible with 12V and 24V vehicles.

Backed by our industry-leading 5-year warranty, the Aerpro AEM1RB3 delivers a genuine factory-quality upgrade, purpose-matched to your Volkswagen.

Features

• Complete Kit, No Guesswork: AEM1R Digital E-Mirror and AEMB3 vehicle-specific bracket boxed together, ready to fit straight out of the box
• True Mirror Replacement: Replaces the factory rearview mirror entirely rather than clipping over it, for a clean and integrated in-cabin appearance
• Direct Factory-Fit Bracket: AEMB3 bracket installs with no cutting or fabrication required
• 9.66" IPS Touch Screen: 1920x480 resolution display delivers a wide, clear image across the full mirror footprint
• 1000 Nit Super Bright Display: Ensures the screen remains clearly visible in all lighting conditions, from direct sunlight to night driving
• Automatic Brightness Adjustment: Screen brightness adapts automatically to ambient light levels for comfortable viewing without manual intervention
• Sony STARVIS 2 Image Sensor: Premium rear camera sensor delivers sharp, detailed footage in both daytime and low-light conditions
• Constant Rear Vision: Live AHD 1080P camera feed replaces the obstructed factory mirror view, restoring clear sightlines for canopy, camper and tray-equipped vehicles
• Guided Reversing: Automatically switches to the rear camera view with on-screen parking guidelines when reverse gear is selected
• Flip to Mirror View: Instantly switch between live camera feed and conventional mirror view with a single switch
• Built-in DVR Recording: Continuous loop recording in 1080P HD at 30FPS captures all driving footage with automatic impact-triggered event saving
• MicroSD Support up to 256GB: Generous storage capacity for extended DVR recording (Class 10 MicroSD card required, sold separately)
• IP69 Rated Rear Camera: Weatherproof camera withstands high-pressure wash-down and harsh outdoor conditions
• Integrated Clock and Date Display: Keeps time and date visible on screen at all times
• 12-24V Compatible: Suitable for passenger vehicles and commercial applications
• Industry-Leading 5-Year Warranty: Backed by a 5-year warranty for long-lasting performance and peace of mind

Specs

• Display: 9.66" IPS Touch Screen
• Resolution
  • Monitor: 1920x480
  • Camera: AHD 1080P
• Image Sensor: Sony STARVIS 2
• Camera IP Rating: IP69
• Screen Brightness: 1000 Nit
• Brightness Adjustment: Automatic
• DVR Recording: Yes, 1080P @ 30FPS (Supports up to 256GB MicroSD, Class 10)
• Trigger Input: Reverse trigger (auto camera display + guidelines)
• Mirror Mode: Flip switch to conventional mirror view
• On-Screen Display: Clock and date
• Power Supply: 12-24V DC
• Cable Length: 8M (camera to mirror)
• Inclusions:
  • 1 x 9.66" Digital E-Mirror (AEM1R)
  • 1 x AHD 1080P Rear Camera
  • 1 x AEMB3 Vehicle-Specific Mounting Bracket
  • 1 x 8M Camera Cable
• Vehicle Compatibility (AEMB3 Bracket)
  • Volkswagen
    • Caddy 2015-2021 (2KN)
    • Crafter 2017-2026 (SY1 Series)
    • Golf 1998-2007, 2010-2013
    • Passat B5 1999-2010
    • Tiguan 2009-2010
    • Transporter 2004-2015 (T5), 2015-2020 (T6)
