iTechworld GoFurther Battery Box Bundle with Tray and Install Kit & iTECHDCDC25 Charger & iTECH120X
Dual Battery System
SKU:GOFUR-25_BT-120X_KIT

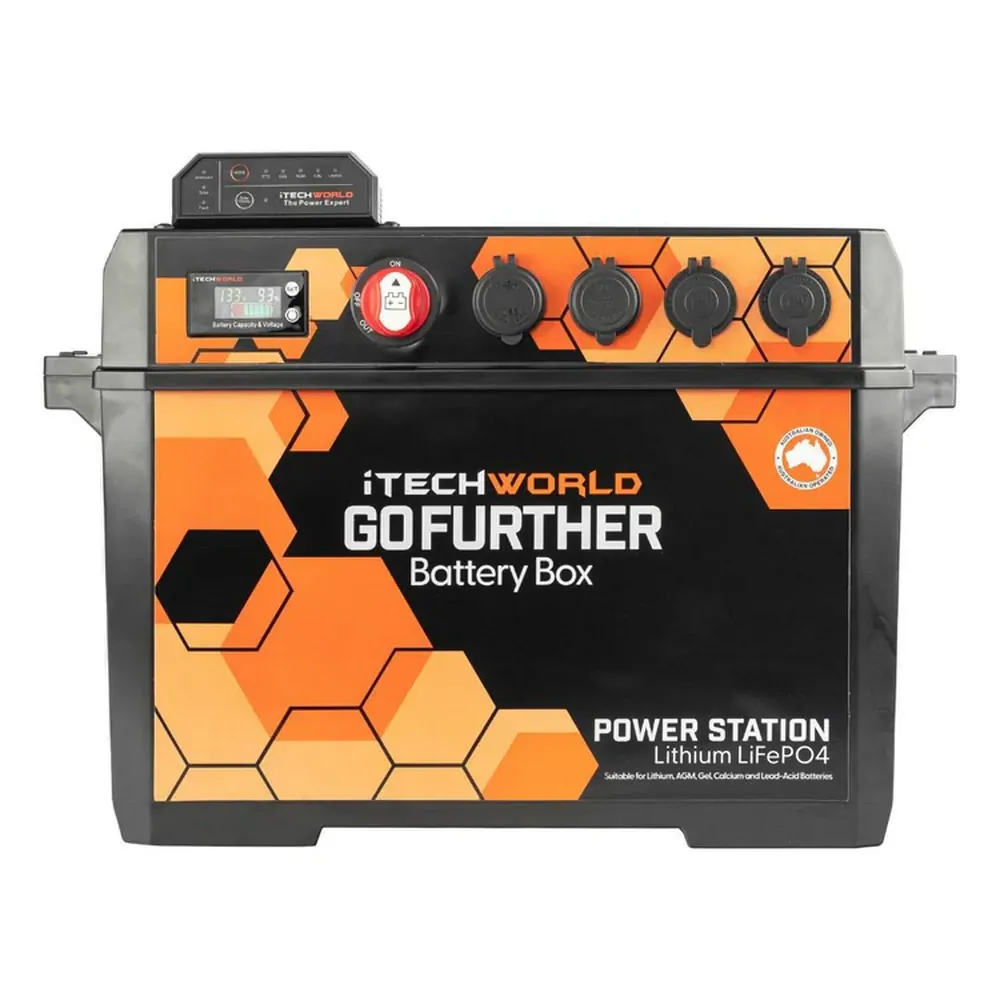

Enhance your outdoor escapades using the iTechworld GoFurther Power Station Kit, featuring the iTECH120X Lithium Battery. A perfect solution for 4WDs and canopies, this Australian-designed battery box is crafted to provide the ultimate dual-battery system, enhancing your outdoor adventures.
One of the key features of the GoFurther Power Station is its pre-wired connections and plug-and-play DIY setup, making it easy for you to install the battery box without any electrical expertise.
The GoFurther Power Station includes 4 Quick-Charge USB charging ports, including 1 USB-C, allowing you to charge your devices up to 80% in 35 minutes.

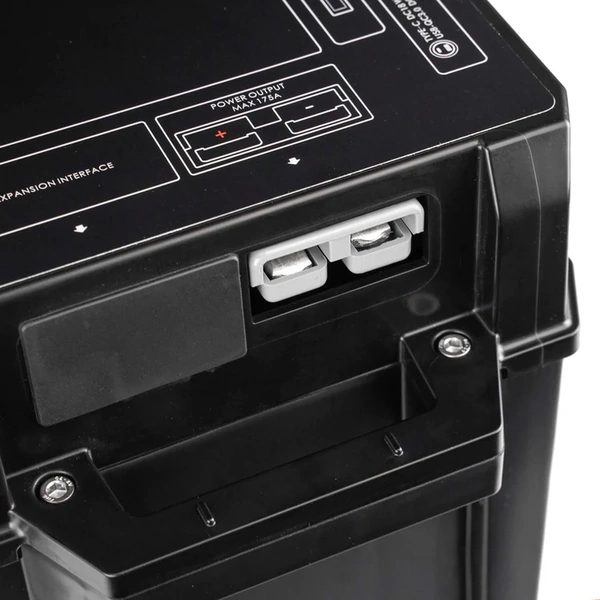

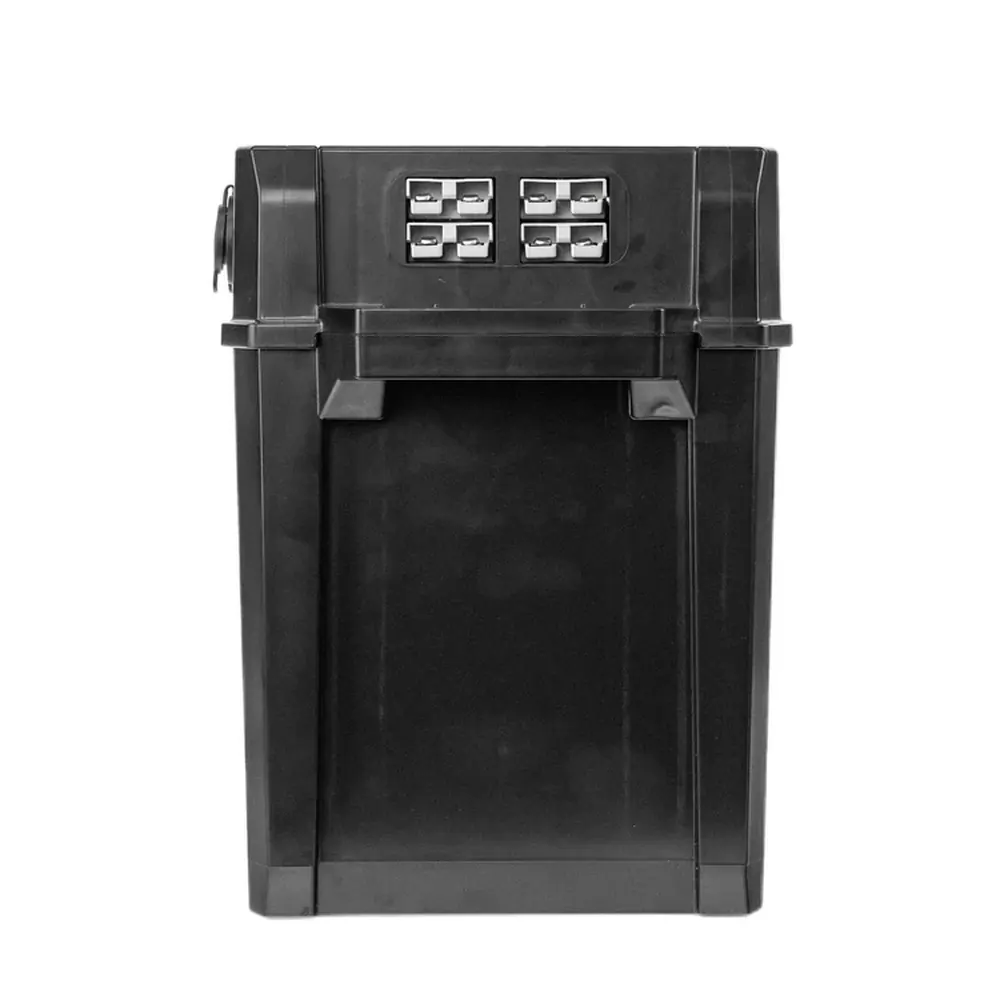

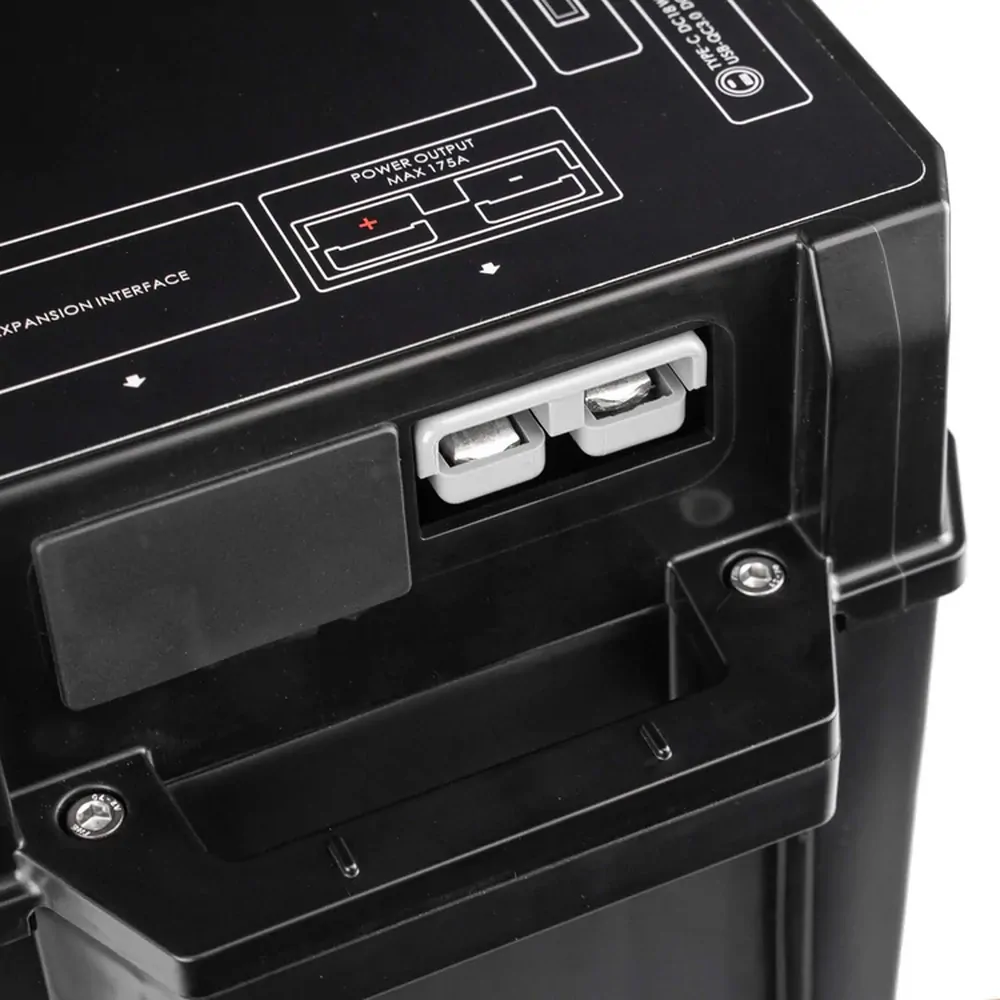

In addition to its advanced charging capabilities, the GoFurther Power Station is also equipped with a high-power 175A Anderson connector ideal for use with inverters. There are also 2 x 12V cigarette outputs and 4x x input/output Anderson connectors to power your 12V appliances.

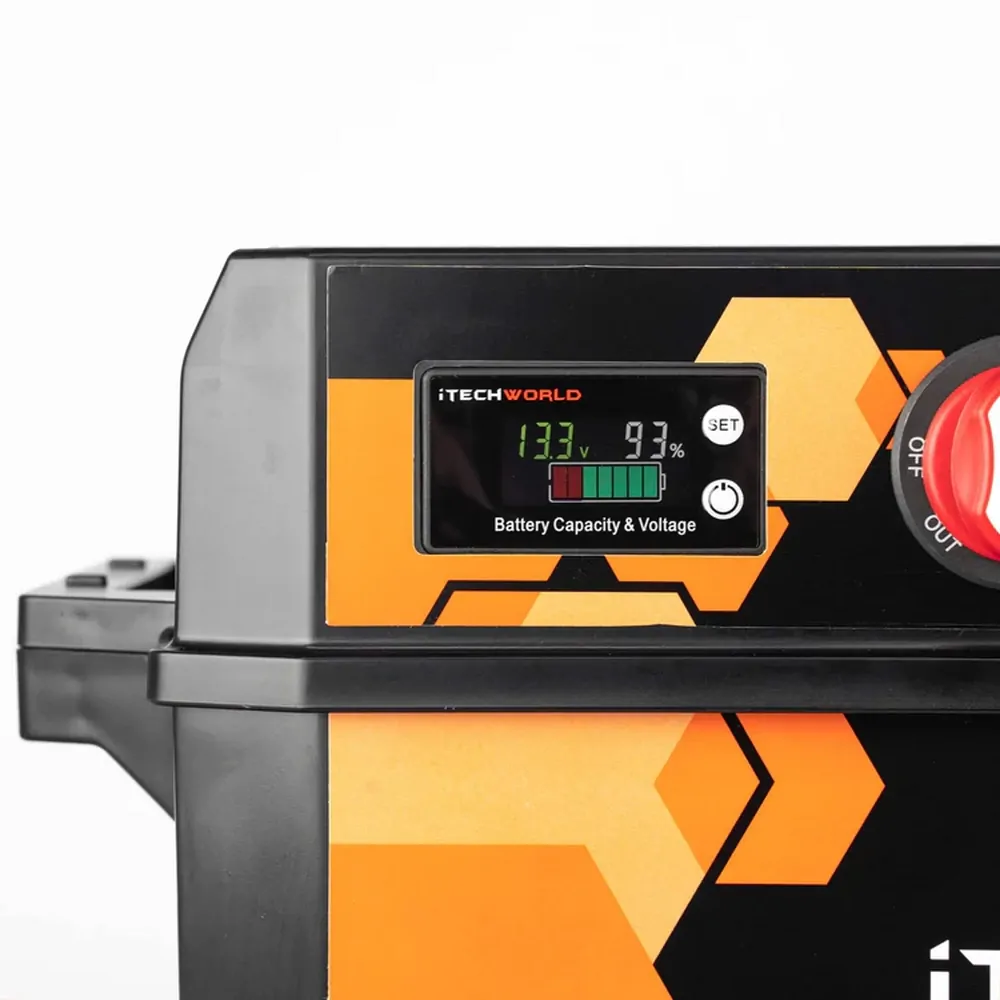

Designed for protection and convenience, the GoFurther Power Station features a built-in 50A auto-reset circuit breaker to safeguard against surges and an LED voltmeter display with a voltmeter on/off button for clear battery voltage readings, day or night.
The heavy-duty ABS construction and thick, fortified copper wire ensure that you receive the highest-quality battery box possible.

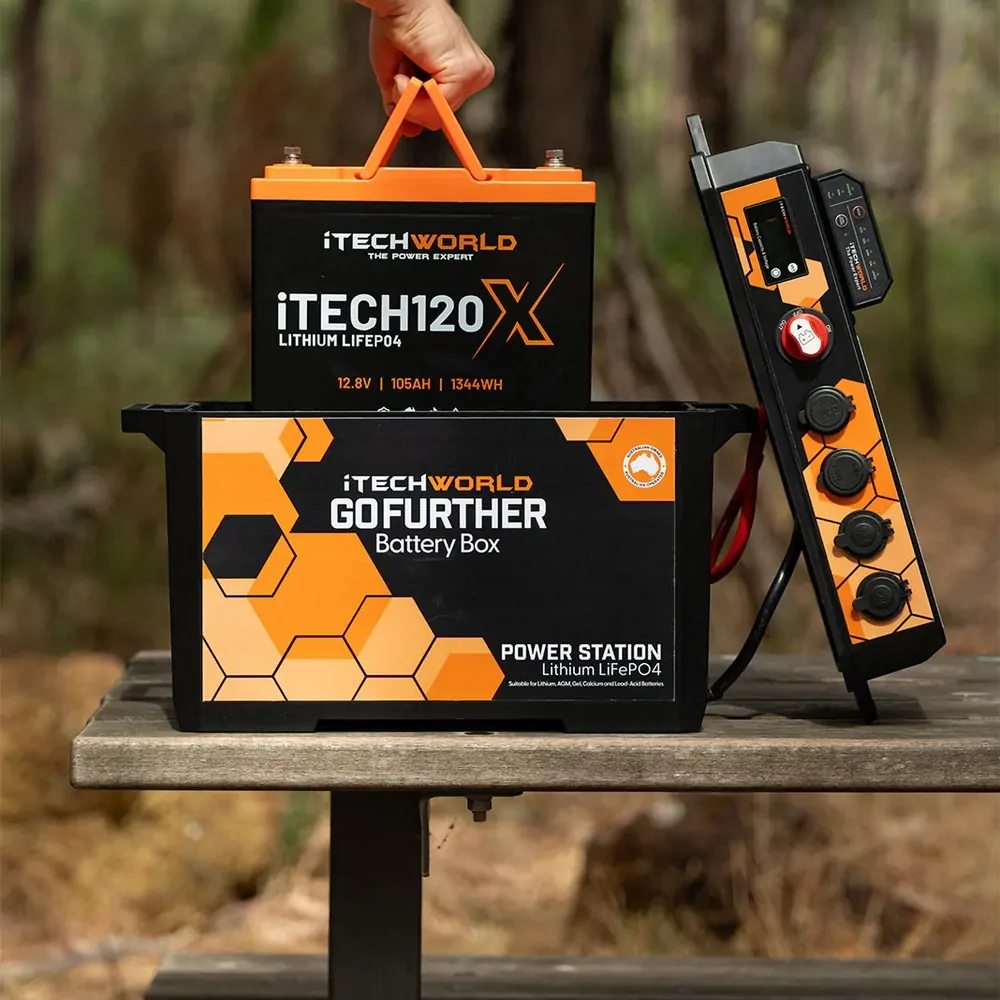

Paired with the iTECH120X 105Ah lithium battery, the GoFurther is the simplest plug-and-play dual battery system on the market.
Whether you're an outdoor enthusiast, camper, or traveller, the iTechworld GoFurther Power Station is a must-have for a reliable and convenient power solution for your 4WD or camping setup.

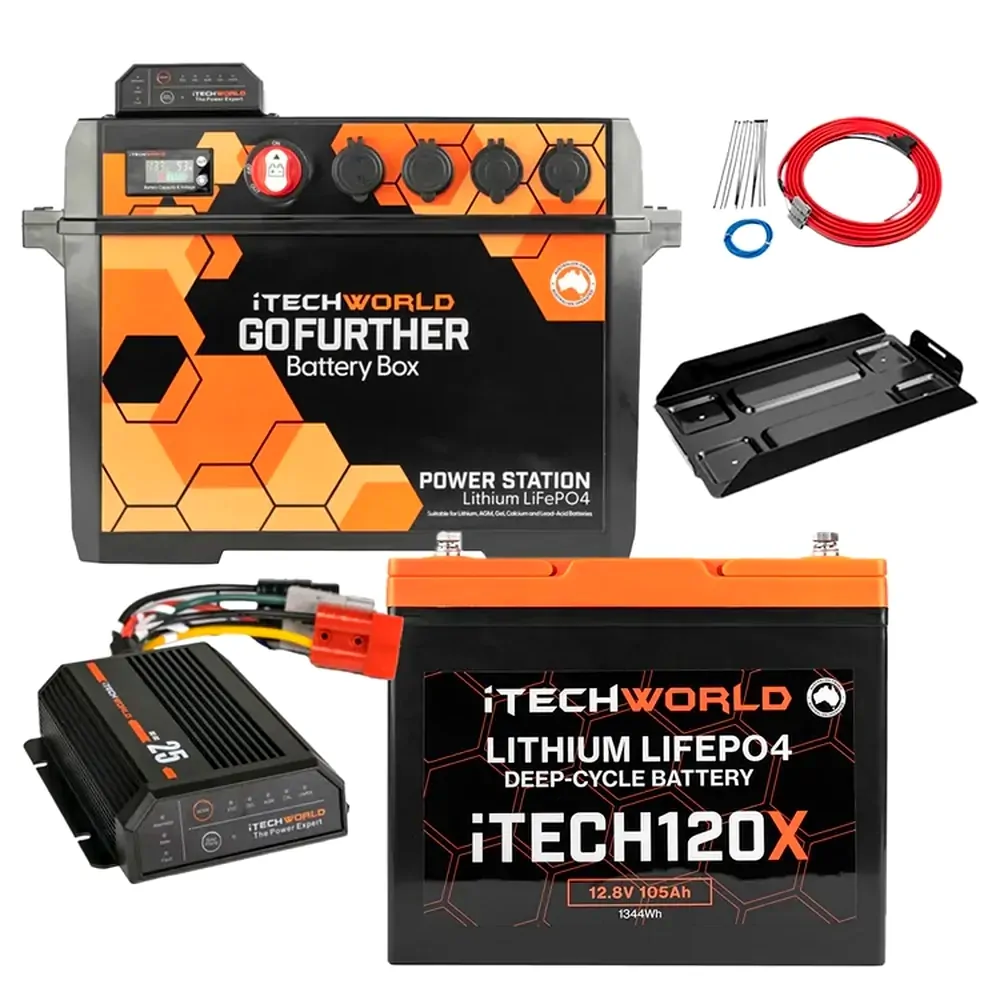

This package includes:
- 1 x GoFurther Battery Box with Integrated iTECHDCDC25
- 1 x iTECH120X 105Ah 12V Lithium Battery
- 1 x Plug and Play DCDC Wiring Kit

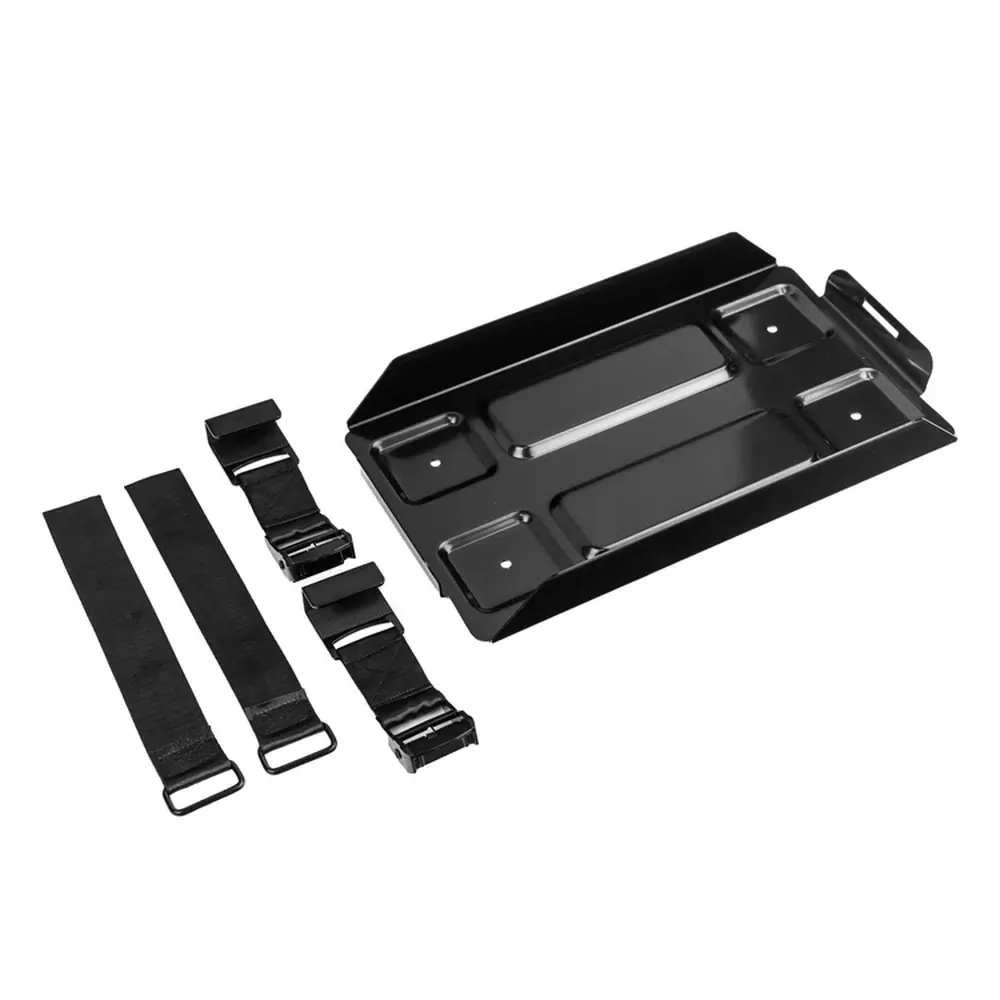

- 1 x GoFurther Battery Box Tray
- 1 x Bluetooth App User Guide
| GoFurther Battery Box | |
|---|---|
| Dimensions (LxWxH): | External: 441 x 240 x 340mm External w/ DCDC: 441 x 240 x 355mm Internal: 360 x 170 x 234mm |
| Outputs: | 2 x 12V 15A cigarette lighter 1 x USB-C 3 x USB QC3.0 |
| Inputs/outputs: | 1 x 175A Anderson plug 4 x 50A Anderson plugs |
| Inputs: | 1 x 3-pin Anderson plug (DCDC alternator input) 1 x 50A Anderson plug (DCDC solar input) |
| Fuse size: | GF: N/A GF25: 40A GF40: 50A |
| DCDC25 Charger | |||||
|---|---|---|---|---|---|
| Battery capacity: | 50-500Ah | ||||
| Vehicle input voltage: | 9-32V | ||||
| Solar input voltage: | 10-32V | ||||
| Maximum input current: | 25A | ||||
| Input fuse rating: | 40A | ||||
| Continuous output current: | Up to 25A | ||||
| Output fuse rating: | 40A | ||||
| Minimum auxiliary battery charge start voltage | 4V | ||||
| Standby current: | <10mA | ||||
| Battery type: | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 | ||||
| Operating temperature: | -20°C ~ 80°C | ||||
| IP rating: | IP67 | ||||
| Dimensions (LxWxH): | 150 x 127 x 39mm | ||||
| Weight: | 670g | ||||
| Output | |||||
| Charge type: | 3-Stage | ||||
| Charging profile: | STD | Gel | AGM | Calcium | LiFePO4 |
| Absorption (maximum output voltage): | 14.4V | 14.1V | 14.7 | 15.3V | 14.5V |
| Float voltage: | 13.4V | 13.5V | 13.4V | 13.6V | |
| Input | |||||
| Input: | On | Off | |||
| 12V standard alternator: | >13.2V | <12.8V | |||
| 24V standard alternator: | >26.2V | <25.6V | |||
| 12V smart alternator (ignition cable connected): | >12V | <11.8V | |||
| 24V smart alternator (ignition cable conencted): | >24V | <23.6V | |||
| Solar: | 16V & 25W | 10V | |||
| iTECH120X PRO | |
|---|---|
| Dimensions (LxWxH): | 330 x 173 x 215mm |
| Weight: | 12.5kg |
| Voltage: | 12V |
| Nominal voltage: | 12.8V |
| Short circuit protection: | Yes |
| Optimum temperature range: | 5°C ~ 80°C |
| BMS operational temperature range: | 5°C ~ 80°C |
| Safety protection isolator: | 80°C |
| Recommended charge voltage: | 14.4V |
| BMS charge cutoff: | 15V |
| BMS low voltage cutoff: | 10.5V |
| Series connection: | Up to 48V (4 x batteries) |
| Parallel connection: | Unlimited |
| Life cycles @ 100% depth of discharge: | 5,000+ |
| Life cycles @ 50% depth of discharge: | 10,000+ |
| Terminal type: | M8 |
| Case material: | ABS |
| SKU | GOFUR-25_BT-120X_KIT |
| Brand | ITECHWORLD |
